| Prod Model: |
QL-55II |
| Capacity: |
5kg, 10kg, 20kg |
| Accuracy: |
0.03 |
| Rated Output: |
1.0±0.1 |
| Power Supply: |
10V |
| Name: |
Small Load Cells with Connector |
| Pattern: |
Miniature |
Product Description

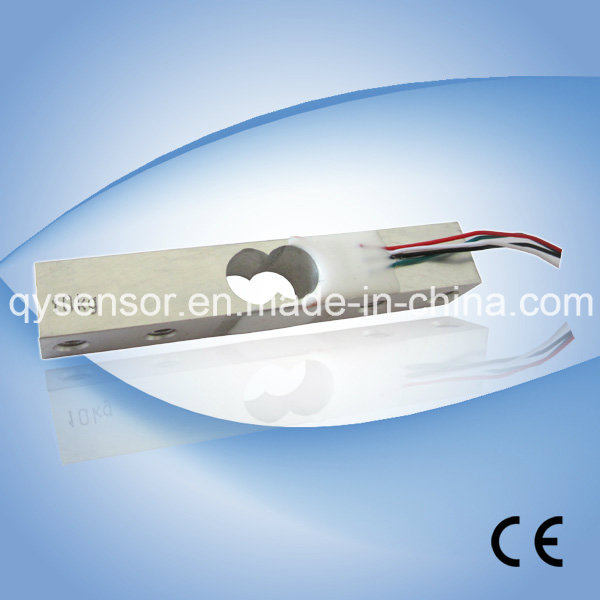

Cheap Chinese Load Cell High Accuracy Good Quality SensorQL-55(II) mini load cells are available in the capacities from 0.5 kg to 50 kg.
Aluminum alloy construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic balance, electronic platform scale and other electronic weighing devices. Features:1. Capacity
:0.5 kg to 50 kg
2. High accuracy.
Aluminum alloy parallel beam
3. Max. platform size:200x300mm
4. Integral installation
The cable length could be chose by customer's application.

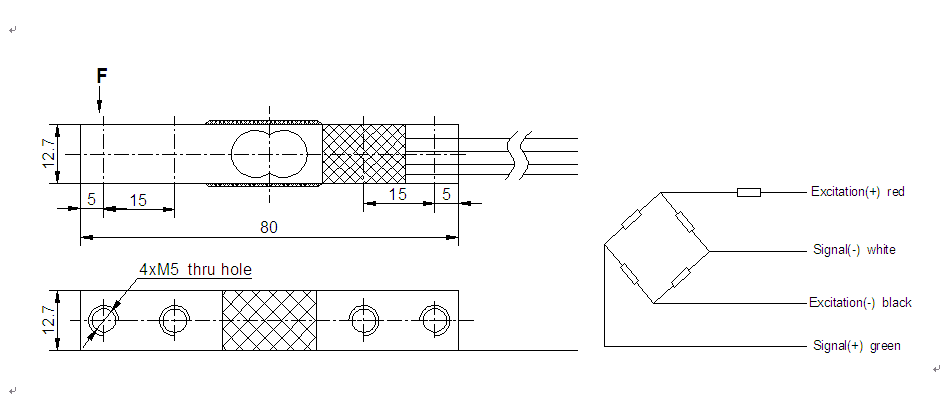

Electrical connection and Dimensions:
Technical Specifications| Specifications: |
| capacity | kg | QL-55(II): 0.5, 1, 2, 3, 5, 10, 20, 30, 50, |
| QH-55(II): 20, 30, 50, 80, 100 |
| safe overload | %FS | 120 |
| ultimate overload | %FS | 150 |
| rated output | mV/V | 1.0 ± 0.1 |
| excitation voltage | Vdc | 5 ~ 12 |
| combined error | %FS | ± 0.05 |
| zero unbalance | mV/V | ± 0.1 |
| non-linearity | %FS | ± 0.05 |
| hysteresis | %FS | ± 0.05 |
| repeatability | %FS | ± 0.03 |
| creep | %FS/5min | ± 0.05 |
| input resistance | Ω | 1090 ± 50 |
| output resistance | Ω | 1000 ± 10 |
| insulation resistance | M Ω | ≥ 3000 @ 50 Vdc |
| operating temperature range | ºC | -20 ~ +55 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.05 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.05 |
Packaging & Shipping- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services- We are committed to providing a high quality, and responsive services to all clients
- Detailed information, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packaging: well box packed and provide optimal freight for you reference.
- All products OEM available
Company InformationHan Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60
Contact details:Chloe ShuHanZhong QuanYuan Electronic Co.,Ltd.TEL: +86-916-2257989 https://cn.linkedin.com/in/qysensorhttp://www.qysensor.com
Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
