Smart PT100 Temperature Transmitter-4 Channel Temperature Controller
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
WNK6TX |
| Output Signal: |
4~20m, 4~20mA/Hart, Profibus-PA |
| Housing Material: |
Aluminum Alloy |
| Stability: |
<0.1/Year |
| Temperature Drift: |
0.05% |
| Type: |
Intergrated Temperature Transmitter |
| Measuring Medium: |
Liquid, Gas |
| Accuracy Grade: |
0.075 |
Product Description

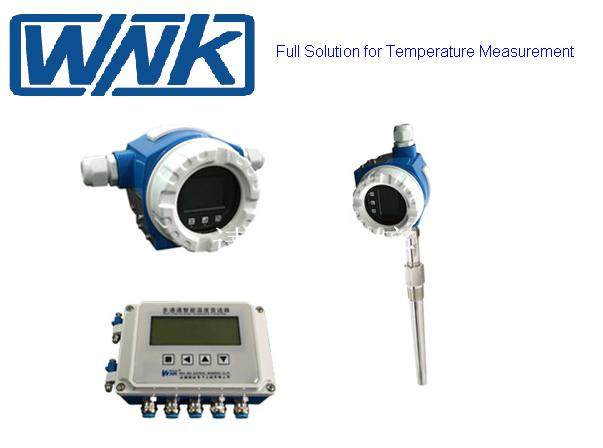

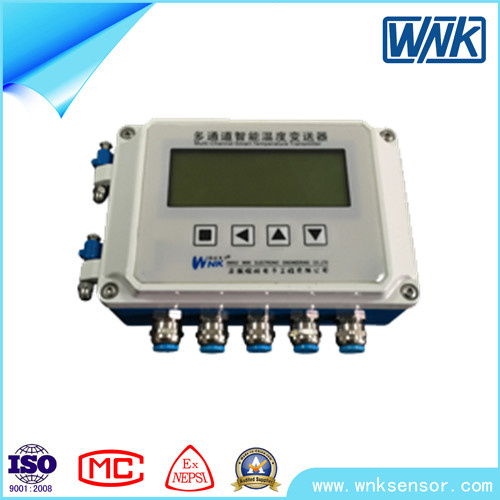

Multi-Channel Temperature Transmitter ( with 4 channel)Our PROFIBUS-PA field bus WNK6T temperature transmitter is approved by PROFIBUS Nutzerorganisation e.V. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable.Features-WNK6TX Temperature Transmitter
1. High precision, digital precision up to :±0.01ºC
2. Long-term drift<0.1/year
3. Install easily, more flexiable
4. To reduce the overall cost of installation,maintenance and running.5. 4~20mA/Hart/Profibus PA output all available
6 Self-diagnostics function7. LCD display, Menu-guided operation.Optional DP signal multi-channel simultaneousoupt output, it not only increase the safety of on site monitoring, furthermore it save your equipement expense
Specification-WNK6TX Temperature Transmitter| Measuring media | liquid, gas |
| Measuring range | -270~800 ºC (PT100 thermal resistor) |
| 0~1300ºC, (Thermocouple K) |
| Input | Thermocouple, RTD, MV, Resistive sensor |
| Power supply range | 9~45V (9~24V, Ex) |
| Output signal | 4~20mA/Hart/Profibus PA |
| Digital Accuracy | ±0.01ºC, PT100 input |
| Internal cold end compensation error | <0.25ºC±0.1%/10ºC |
| Temperature drift | ±0.05%/10ºCfull scale range |
| 0.1% between-10°C to 60°C |
| Effect of power supply on range | <0.005%/V full-scale range |
| Long term drift | <0.1/year |
| Ambient temperature | Ambient temperature | Storage temperature |
| T4 | Safe operation(T6) |
| -40...85ºC | -40...60ºC | -40...95ºC |
| Protection Class | IP66/67 |
| Relative humidity | ≤98%, condensation allowed |
| Electromagnetic compatibility | Accordance with EN 61 326 |
For more technical details, please contact with us.Why Choose us?
1. we are manufacturer, with more than 12 years producing experience.
2. Our produce quality is guaranteed, since all of products we do temperature compensation and aging test before shipment.
Customer specific requirement /ODM/OEM is welcome.
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
