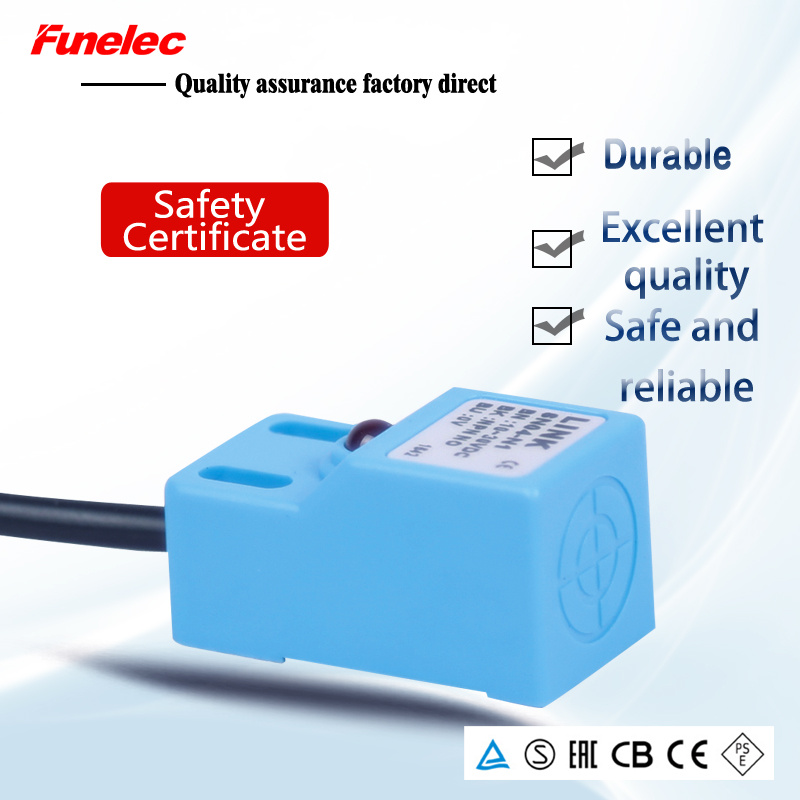

Sn04-N 18*18 Square Type Inductive Sensor Proximity Sensor Switching
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
SN04 Proximity Sensor/ inductive proximity switch
Detailed Product Description
Features:
1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it
Characteristic parameter| Delay distance | 10% below of the detection distance |
| Detection object | Magnetic metal (the detection distance decreases when it is Don-magnetic metal) |
| Supply voltage | DC type: DC 12-24V(6-36V) Impulse (p-p) 10% below, AC type:AC110-220V (36-250V) 50/60Hz |
| Consumption current | N.P type: 13mA below, D type: 0.8mA below, A type: 1.7mA below |
| Control output | N.P type: 300mA below, D type: 200mA below, A type: 400mA below |
| Loop protection | N.P.D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption |
| Ambient temperature & humidity | During operation, storage: individually -30~+65ºC(no freeze, no drew), During operation, storage: individually 35~95%RH |
| Insulation impedance | 50MΩ above (DC500 megameter) between charging part and housing |
| Withstand voltage | AC1000V 50/60Hz lmin between charging part and housing |
| Temperature influence | Temperature range -30~+65ºC, at +23ºC, ± 15% detection distance;temperature range -25~+60ºC, at +23ºC, ± 10% detection distance |
| Voltage influence | Inside ±15% rated supply voltage range, at rated supply voltage value, inside±10% detection distance |
| Protection structure | IP67 (IEC specification) |
| Material | (Housing: ABS) , (Detectionsurface: ABS). |
Specification| Dimension | 18×18×36 |
| Mounting way | Non-screen shield type |
| Type | DC type | NPN | NO | SN04-N |
| NC | SN04-N2 |
| NO+NC | SN04-N3 |
| PNP | NO | SN04-P |
| NC | SN04-P2 |
| NO+NC | SN04-N3 |
| Two-wire | NO | SN04-D1 |
| NC | SN04-D2 |
| AC type | Two-wire | NO | SN04-Y1 |
| NC | SN04-Y2 |
| Theer-wire | NO+NC | |
| Detection distance | 5mm±10% |
| Set distance | 0~4mm |
| Standard detection object | iron18 X18X1mm |
| Response ftequency | DC:0.5kHz AC:25Hz |
Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively
FAQ
Q: If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your product seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our product are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is the quality of your product?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Pls feel free to contact us, we will be happy to provide you with the best quality products and personalized service!
| Prod Model: |
SN04-N |
| Material: |
Stainless Steel |
| Voltage Type: |
DC Voltage |
| Rotection Degree: |
IP 67 |
| Mounting: |
Flush / Non-Flush |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Wires: |
NPN/PNP 3 Wire, Two Wire |
| Application: |
Position Sensor, Speed Sensor |
