Sop Competitive Cost Linear Potentiometer Position Sensor

Name: Sop Competitive Cost Linear Potentiometer Position Sensor
Brand: all-electronics-online.com
SKU: 827140535
Availability: InStock
Rating: 4.9 (37 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KPZ-38mm
Cetification:	RoHS
Voltage:	42V
Working Stroke:	10-100mm
Feature:	Linear Excellent
Material:	Aluminum Alloy

Product Description

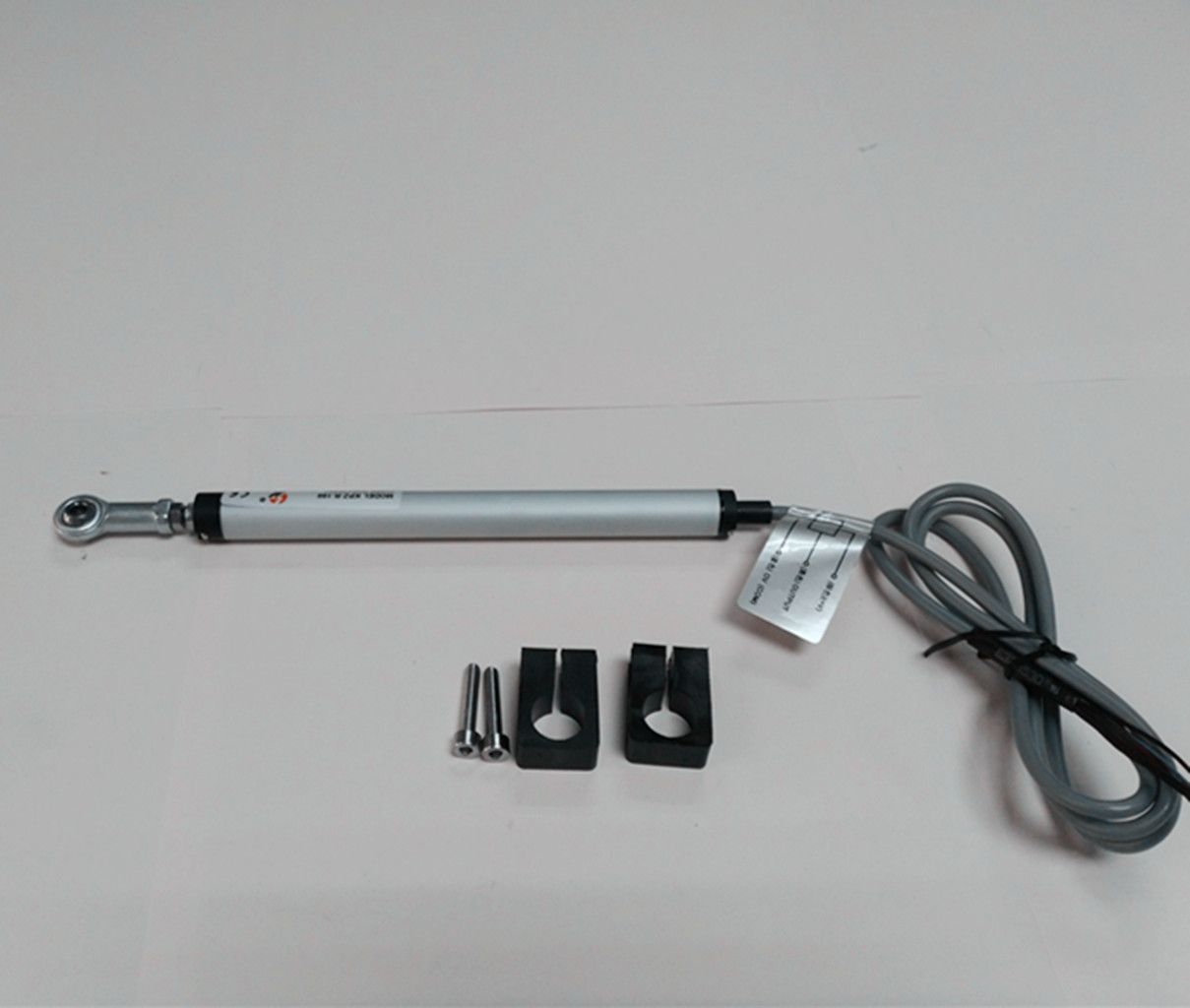

SOP Competitive Cost Linear Potentiometer Position Sensor

Model												Unit
Working Stroke	10	25		38		50		75		100		mm
Electric Stroke	10.5	25.5		38.5		50.5		75.5		101		mm
Resistance value	2	2		5		5		5		5		KΩ
Resistance Tolerance	5											±%
Degree of Linearity	0.3	0.3		0.3		0.3		0.2		0.15		±%
Repeatability	0.01											mm
Working Current	≤ 1											μA
Max Current	10											mA
Max Voltage	42											V
Input Voltage and Output Voltage temperature Rate	5(typical Values)											ppm/K
(500VDC,1bar,2s) Insulation Resistance	≥ 10											MΩ
(50Hz,2s,1bar,500DVC) Insulation Intension	≤ 100											μA
Length	43.5		48.5		53.3	78	93		118		143	±2mm
Mechanical Stroke	9		14		19	29.5	54.5		79.5		105	±2mm
Movement	±3° Angular deviation, ±0.5mm Parallel Deviation
Horizontal Direction	≤0.4											N
Vertical Direction	≤1.1											N
Temperature Range	-40~120											ºC
Anti-vibration	Frequency 5~2000 Distance Amax=0.75 weight a max=20											Hz/mm/g
Shock Resistance	weight/time											g/ms
Use Life	>20×106
Working Speed	5											m/s(max)
Acceleration	200(20g)											m/s(max)
Protect Grate	MAX IP65 DIN405000/IEC529

13 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.
our centification CE, ROHS, SGS

Product feature:
1. Linear excellent
2. Resolution rate is higher than 0.01mm
3. High speed
4. Could use in all kinds of worse environment(humid, oily, dusty)
5. Protection grate is ip65
6. Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

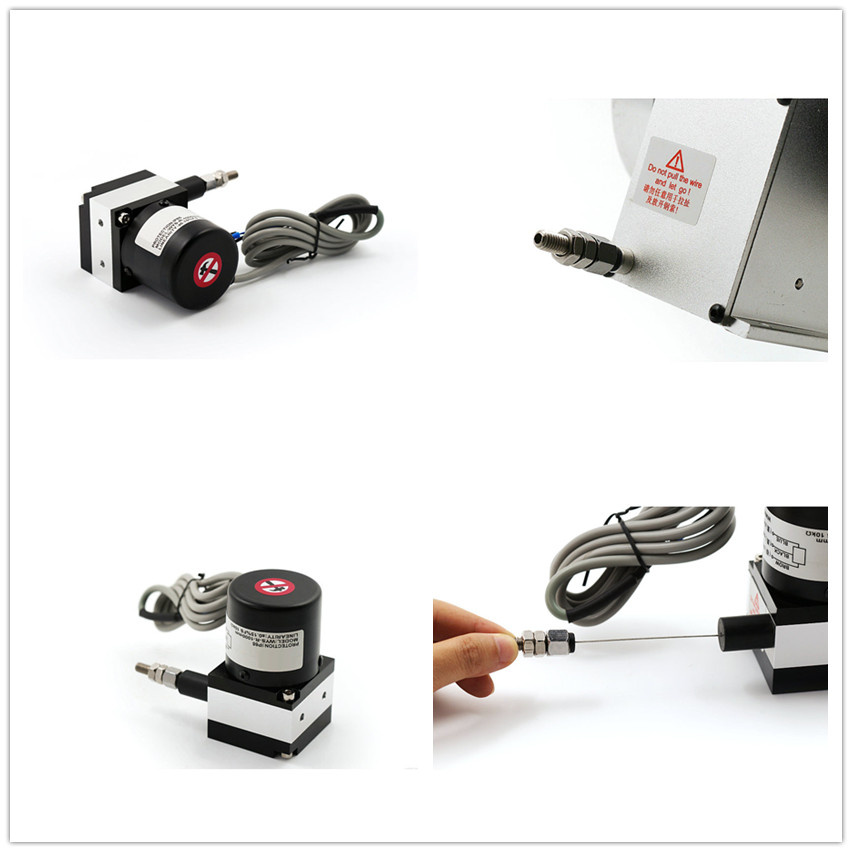

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
