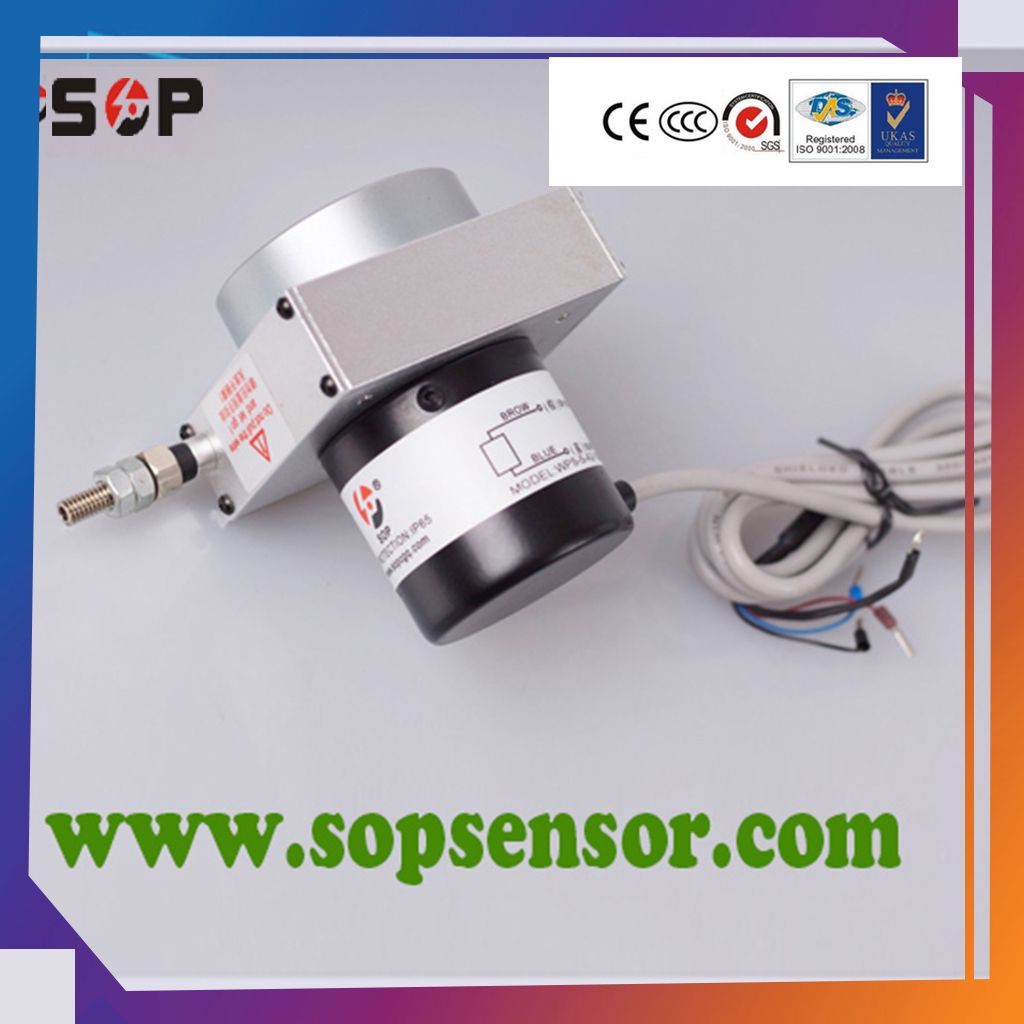

Sop Linear Motion Position Draw Wire Sensors for Location Control

SOP Linear Motion Position Draw Wire Sensors for Location Control


Modle	Max Stroke	IP Grade	Line Diameter	Environment Temperature
WPS	Mm	IP	Mm	ºC
L	17000	65	0.8	-20~80

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current,and Quadrature Encoder.

1. Principle

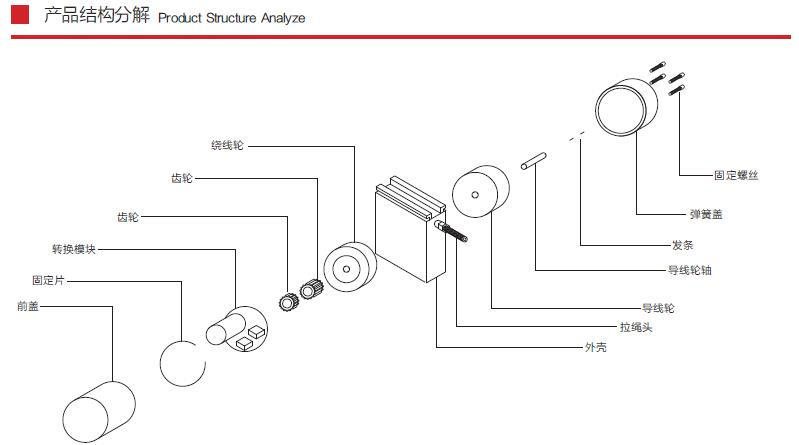

Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.

2. Features
1. rugged construction, compact size, easy to install
2. economic cost, and cost savings for customers
3. cylinders, testing machines and other industry has achieved large-scale applicatIons, reliability

3. Displacement sensor Advantage
*Absolute encoder, multi-output.
* Compact structure and light weight.
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

Key Features
0 to 5000mm measuring range
Rugged, compact design
Profiled enclosure
Analog wire sensor
Protected to IP67
CE Approved

Note:
Wrong wiring may damage the sensor
Make sure wire in the power off state
Do not let go after wire is pulled out, otherwise the sensor could be easily damaged
Do not exceed the total length of the wire
Please ensure the cleanness of the equipment and wire line to prolong the service life
Avoid external force
