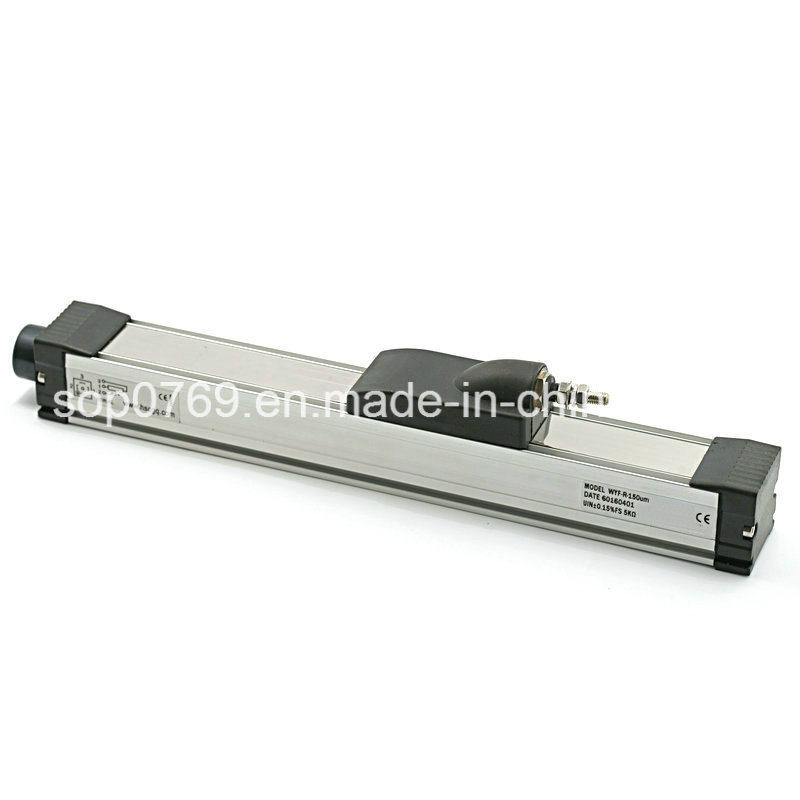

Sop Slider Type Linear Displacement Durability Sensor with Larger Stroke
Price: |
US $ 100-120/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
SOP Slider Type Linear Displacement Durability Sensor With Larger Stroke Model | | Unit |
Working Stroke | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 300 | 450 | 500 | 600 | 750 | 900 | 1000 | 1250 | 1500 | 1800 | 2000 | 2250 | 2500 | mm |
Electric Stroke | 75.5 | 101 | 126 | 151 | 175.5 | 201.5 | 226.5 | 302 | 453 | 503.5 | 604 | 754.5 | 905.5 | 1006 | 1259 | 1511 | 1813 | 2013 | 2264 | 2514 | mm |
Resistance value | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 10 | 10 | 10 | 10 | 20 | 20 | 20 | 20 | 20 | 20 | KΩ |
Resistance Tolerance | 5 | ±% |
Degree of Linearity | 0.15 | 0.15 | 0.15 | 0.1 | 0.1 | 0.08 | 0.08 | 0.05 | 0.05 | 0.05 | 0.05 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | ±% |
Repeatability | 0.01 | mm |
Working Current | ≤ 1 | μA |
Max Current | 10 | mA |
Max Voltage | 42 | V |
Input Voltage and Output Voltage temperature Rate | 5 | ppm/K |
(500VDC,1bar,2s) Insulation Resistance | ≥ 10 | MΩ |
(50Hz,2s,1bar,500DVC) Insulation Intension | ≤ 100 | μA |

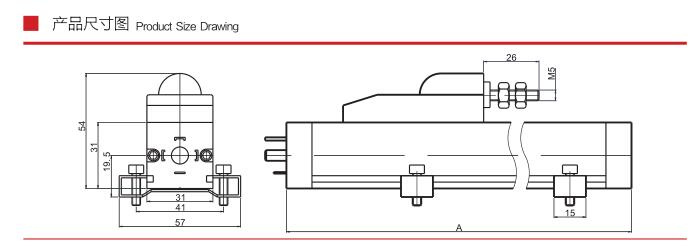

Length | 192 | 217 | 243 | 268 | 293 | 319 | 344 | 421 | 572 | 623 | 724 | 875 | 1027 | 1128 | 1381 | 1683 | 1935 | 2135 | 2386 | 2636 | ±2mm |
Mechanical Stroke | 82 | 108 | 133 | 158 | 183 | 208 | 233 | 309 | 460 | 510 | 611 | 761 | 912 | 1013 | 1266 | 1518 | 1820 | 2020 | 2271 | 2521 | ±2mm |
Movement | ± 5° Angular deviation | |
Horizontal Direction | ≤ 0.4 | N |
Vertical Direction | ≤ 1.1 | N |
Temperature Range | -40~120 | ºC |
Anti-vibration | Frequency 5~2000 Distance A max= 0.75 weight a max= 20 | Hz/mm/g |
Shock Resistance | weight/time | g/ms |
Use Life | >20×106 | |
Working Speed | 1 | m/s(max) |
Acceleration | 200(20g) | m/s(max) |
Protect Grate | MAX IP65 DIN405000/IEC529 | |
Product feature:
No pole design
Spherical
Usage life is longer, Times could reach fifty million
Non-linearity smaller
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65(install down is ip57)
Could equip with voltage and current (2line, 3line) module
Displacement sensor Advantage
*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.
We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.
After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
Prod Model: |
KTF-2000mm |
Feature: |
High Speed, Linear Displacement |
Max Current: |
10mA |
Max Voltage: |
42V |
Working Stroke: |
75-2500mm |
Material: |
Aluminum Alloy |
