| Prod Model: |
CPMC315-**L90 |
| Application: |
Industrial |
| Operating Speed: |
Adjust Speed |
| Magnetic Structure: |
Permanent Magnet |
| Structure: |
Rotating Pole Type (',Armature Fixed) |
| Operation Mode: |
Inverter Control |
| Number Of Poles: |
32-Pole |
| Ventilation: |
Water Cooling |
| Certification: |
TUV |
| Brand: |
Enn |
Product Description

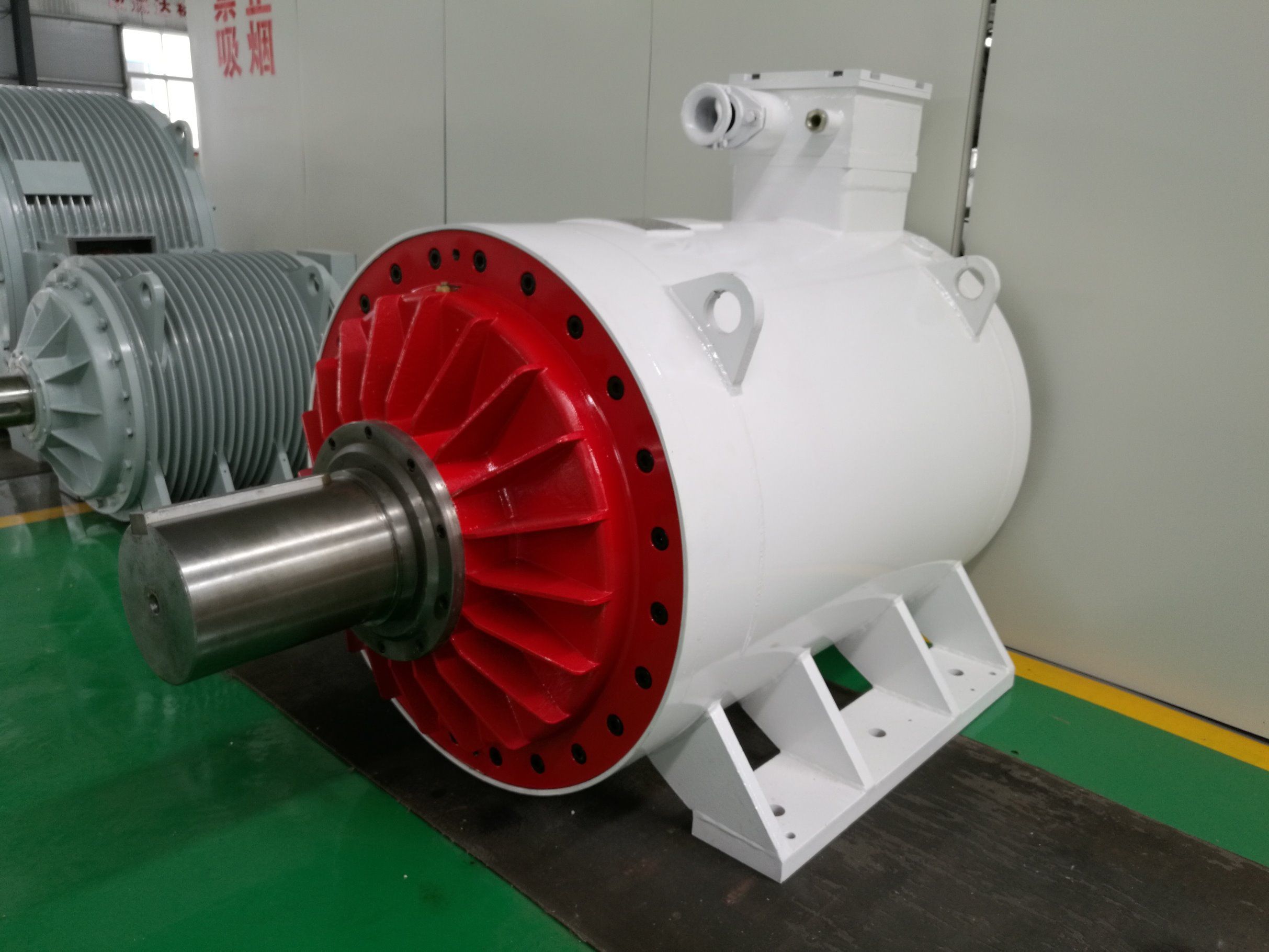

PMM system is specially designed according to belt conveyor running condition and mainly for the belt conveyor driving system at non explosion-proof areas like the port, power plant and mines etc. It can replace directly the traditional asynchronous motor, reducer and hydraulic coupler which directly drive the equipment with high transmission efficiency, good energy saving and reliable and safe running.
The system adopts natural cooling way with compact volume, small noise, permanent drive way, easy to install, less malfunction and easy operation and control. The system has the voltage degrees of 380V, 660V, 1140V, 3300V, 6KV and 10KV etc. Rotation speed range can be designed and produced as per the customer requirement with range of 0-60, 75 and 90r/min.
Speed adjustment range (0-75r/min) and technical Speed adjustment range (0-90r/min) and technical parameter of CPMC315 engine seat
| Motor type | Rated torque
N.m | Rated voltage
V | Rated current
A | Power factor
cosφ | Torque multiples | Weight
ton | Replaceable power
kW |
| CPMC315-04L90 | 4000 | 380 | 66.7 | 0.9892 | 1.5 | 1.02 | 37 |
| CPMC315-04M90 | 660 | 39.5 | 0.9917 |
| CPMC315-04H90 | 1140 | 23.5 | 0.9905 |
| CPMC315-06L90 | 6000 | 380 | 98.5 | 0.9892 | 1.08 | 55 |
| CPMC315-06L90 | 660 | 58.2 | 0.9915 |
| CPMC315-06L90 | 1140 | 35.1 | 0.9907 |
| CPMC315-08L90 | 8000 | 380 | 130.2 | 0.9899 | 1.15 | 75 |
| CPMC315-08M90 | 660 | 75.2 | 0.9908 |
| CPMC315-08H90 | 1140 | 45.5 | 0.9914 |
can be designed and produced according the customer's requirement
ENNENG MOTOR FOCUS ON ENERGY SAVING PERMANENT MAGNETIC MOTOR R&D AND FABRICATION.
QUALITY IS OUR CULTURE.
Qingdao Enneng Motor Co., Ltd. (called "ENNENG") is a HI-TECH enterprise and its core competency is researching and fabrication of permanent magnetic motor(PM motor). The niche market is in China. Our PM motor has been successfully used in Chinese top leading enterprise in the field, such as Shengli Oil field, Chongqing Water Group, etc.
ENNENG is devoted to the research and development of various low speed permanent magnetic motor with high torque, special small permanent magnet servo motor and super-high speed permanent magnetic motor. With advanced production idea, strong technical strength, complete process equipment and advanced test and inspection equipment, our company is one of the leading permanent magnetic motor manufacturers. Our product can be used in port, ship, coal, water conservancy, mine, petro and power industry. We are praised and recognized by the customer for several research and development projects which wins high reputation and long-term cooperation with the customer.
ENNENG is continuously boost independent innovation, and cooperate with many colleges like China University of Mining and Technology, China Ocean University, Shandong University of Science and Technology, Xi 'an university of Science and Technology, China University of Petroleum, Beijing University of Aeronautics and Astronautics etc. We have a team with years of permanent magnetic motor experiences in the industry like mine, port, water conservancy, building materials, petro, chemical and space etc. And they have abundant professional technique and management who is familiar with motor design and production process supplying stable quality and professional service permanent magnetic motor system.
ENNENG headquarter is located in Qingdao, with factory in Dalian. 90% of the fabrication and test equipment are imported from Germany.
