| Prod Model: |
AR9X AR8X |
| Type: |
Power |
| Structure: |
Fixed Board |
| Shell Protection Grade: |
IP66 |
| Brand: |
Shanghai Electric |
Product Description

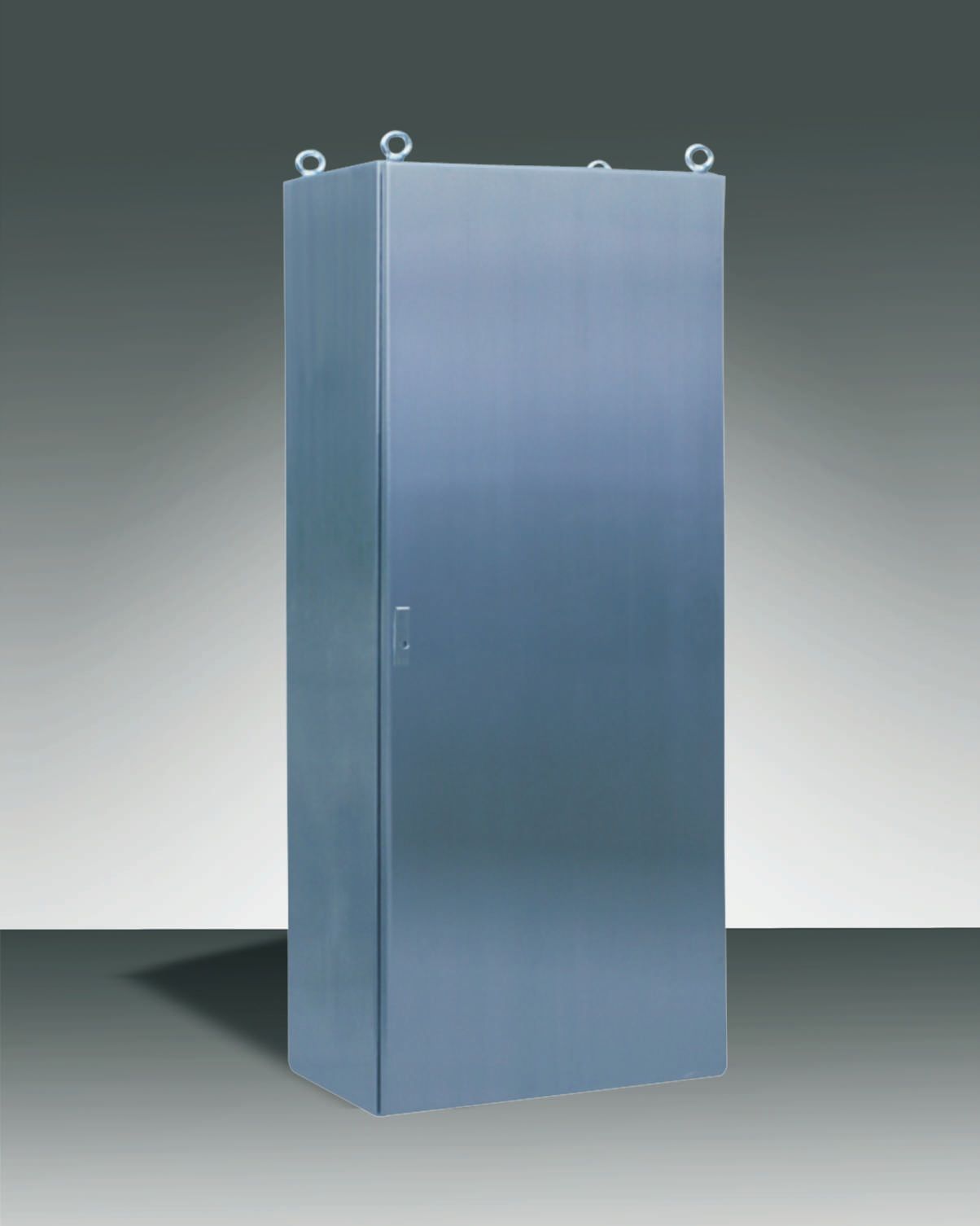

AR9X stainless steel cabinet-Single door
Material: stainless steel AISI304 or AISI316 (on request)
Thickness:front door 2.0mm/ rear panel 1.5mm/side panels 1.5mm/top cover &bottom cable plate 1.5mm/galvanised mounting plate 2.5mm/
9-folded rails1.5mm
Protection ratings:IP 55
Impact resistance IK10
Supply include:
9-folded rails 4pcs/set,door complete with MS821-X locking system and hinges ,rear
panel, side panels 2pcs/set,top cover,bottom with
removable cable entry,4 lifting eyebolts
| Model | W×H×D (mm) | NO. of door | | Model | W×H×D (mm) | NO.of door |
| AR9X 146/4 | 600*1400*400 | 1 | | AR9X 20 4/5 | 400*2000*500 | 1 |
| AR9X 146/6 | 600*1400*600 | 1 | | AR9X 20 4/6 | 400*2000*600 | 1 |
| AR9X 148/4 | 800*1400*400 | 1 | | AR9X 20 6/4 | 600*2000*400 | 1 |
| AR9X 148/6 | 800*1400*600 | 1 | | AR9X 20 6/5 | 600*2000*500 | 1 |
| AR9X 166/6 | 600*1600*400 | 1 | | AR9X 20 6/6 | 600*2000*600 | 1 |
| AR9X 166/8 | 600*1600*800 | 1 | | AR9X 20 6/8 | 600*2000*800 | 1 |
| AR9X 168/6 | 800*1600*600 | 1 | | AR9X 20 8/4 | 800*2000*400 | 1 |
| AR9X 168/8 | 800*1600*800 | 1 | | AR9X 20 8/5 | 800*2000*500 | 1 |
| AR9X 186/4 | 600*1800*400 | 1 | | AR9X 20 8/6 | 800*2000*600 | 1 |
| AR9X 186/5 | 600*1800*500 | 1 | | AR9X 20 8/8 | 800*2000*800 | 1 |
| AR9X 186/6 | 600*1800*600 | 1 | | AR9X 2010/4 | 1000*2000*400 | 1 |
| AR9X 186/8 | 600*1800*800 | 1 | | AR9X 2010/5 | 1000*2000*500 | 1 |
| AR9X 188/4 | 800*1800*400 | 1 | | AR9X 2010/6 | 1000*2000*600 | 1 |
| AR9X 188/5 | 800*1800*500 | 1 | | AR9X 2010/8 | 1000*2000*800 | 1 |
| AR9X 188/6 | 800*1800*600 | 1 | | AR9X 226/8 | 600*2200*800 | 1 |
| AR9X 1810/4 | 1000*1800*400 | 1 | | AR9X 228/6 | 800*2200*600 | 1 |
| AR9X 1810/5 | 1000*1800*500 | 1 | | AR9X 228/8 | 800*2200*800 | 1 |

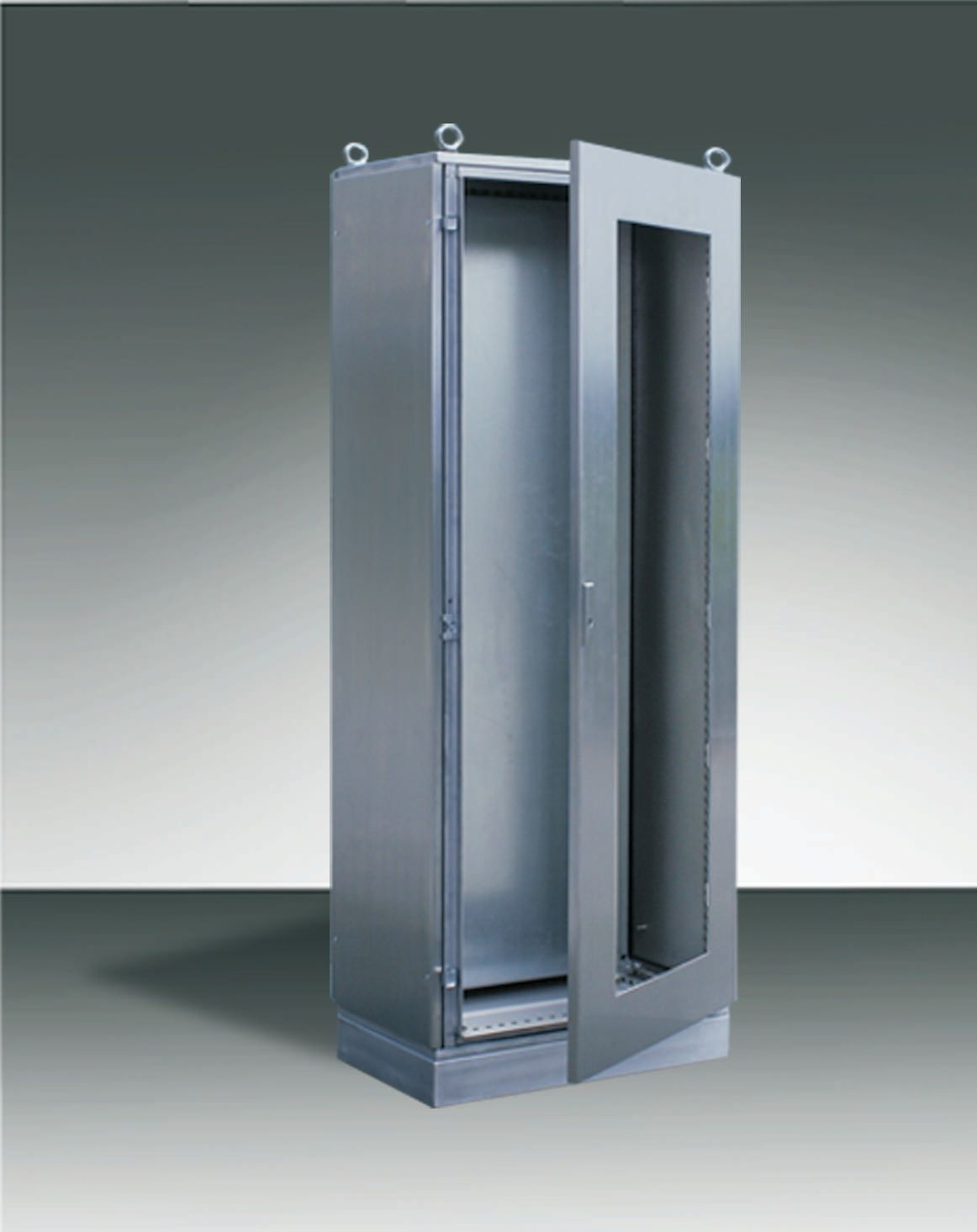

AR9XP stainless steel cabinet with glazed door
Material: stainless steel AISI304 or AISI316 (on request)
Thickness:front door 2.0mm/ rear panel 1.5mm/side panels 1.5mm/top cover &bottom cable plate 1.5mm/galvanised mounting plate 2.5mm/
9-folded rails1.5mm/ thinkness of 5mm material toughened glass
Protection ratings:IP 55
Impact resistance IK10
Supply include:
9-folded rails 4pcs/set,door complete with MS821-X locking system with toughened
glass window, and hinges ,rear panel, side panels 2pcs/set,
top cover,bottom with removable cable entry,4 lifting eyebolts
| Model | W×H×D (mm) | NO. of door | | Model | W×H×D (mm) | NO.of door |
| AR9XP 146/4 | 600*1400*400 | 1 | | AR9XP 20 4/5 | 400*2000*500 | 1 |
| AR9XP 146/6 | 600*1400*600 | 1 | | AR9XP 20 4/6 | 400*2000*600 | 1 |
| AR9XP 148/4 | 800*1400*400 | 1 | | AR9XP 20 6/4 | 600*2000*400 | 1 |
| AR9XP 148/6 | 800*1400*600 | 1 | | AR9XP 20 6/5 | 600*2000*500 | 1 |
| AR9XP 166/6 | 600*1600*400 | 1 | | AR9XP 20 6/6 | 600*2000*600 | 1 |
| AR9XP 166/8 | 600*1600*800 | 1 | | AR9XP 20 6/8 | 600*2000*800 | 1 |
| AR9XP 168/6 | 800*1600*600 | 1 | | AR9XP 20 8/4 | 800*2000*400 | 1 |
| AR9XP 168/8 | 800*1600*800 | 1 | | AR9XP 20 8/5 | 800*2000*500 | 1 |
| AR9XP 186/4 | 600*1800*400 | 1 | | AR9XP 20 8/6 | 800*2000*600 | 1 |
| AR9XP 186/5 | 600*1800*500 | 1 | | AR9XP 20 8/8 | 800*2000*800 | 1 |
| AR9XP 186/6 | 600*1800*600 | 1 | | AR9XP 2010/4 | 1000*2000*400 | 1 |
| AR9XP 186/8 | 600*1800*800 | 1 | | AR9XP 2010/5 | 1000*2000*500 | 1 |
| AR9XP 188/4 | 800*1800*400 | 1 | | AR9XP 2010/6 | 1000*2000*600 | 1 |
| AR9XP 188/5 | 800*1800*500 | 1 | | AR9XP 2010/8 | 1000*2000*800 | 1 |
| AR9XP 188/6 | 800*1800*600 | 1 | | AR9XP 226/8 | 600*2200*800 | 1 |
| AR9XP 1810/4 | 1000*1800*400 | 1 | | AR9XP 228/6 | 800*2200*600 | 1 |
| AR9XP 1810/5 | 1000*1800*500 | 1 | | AR9XP 228/8 | 800*2200*800 | 1 |

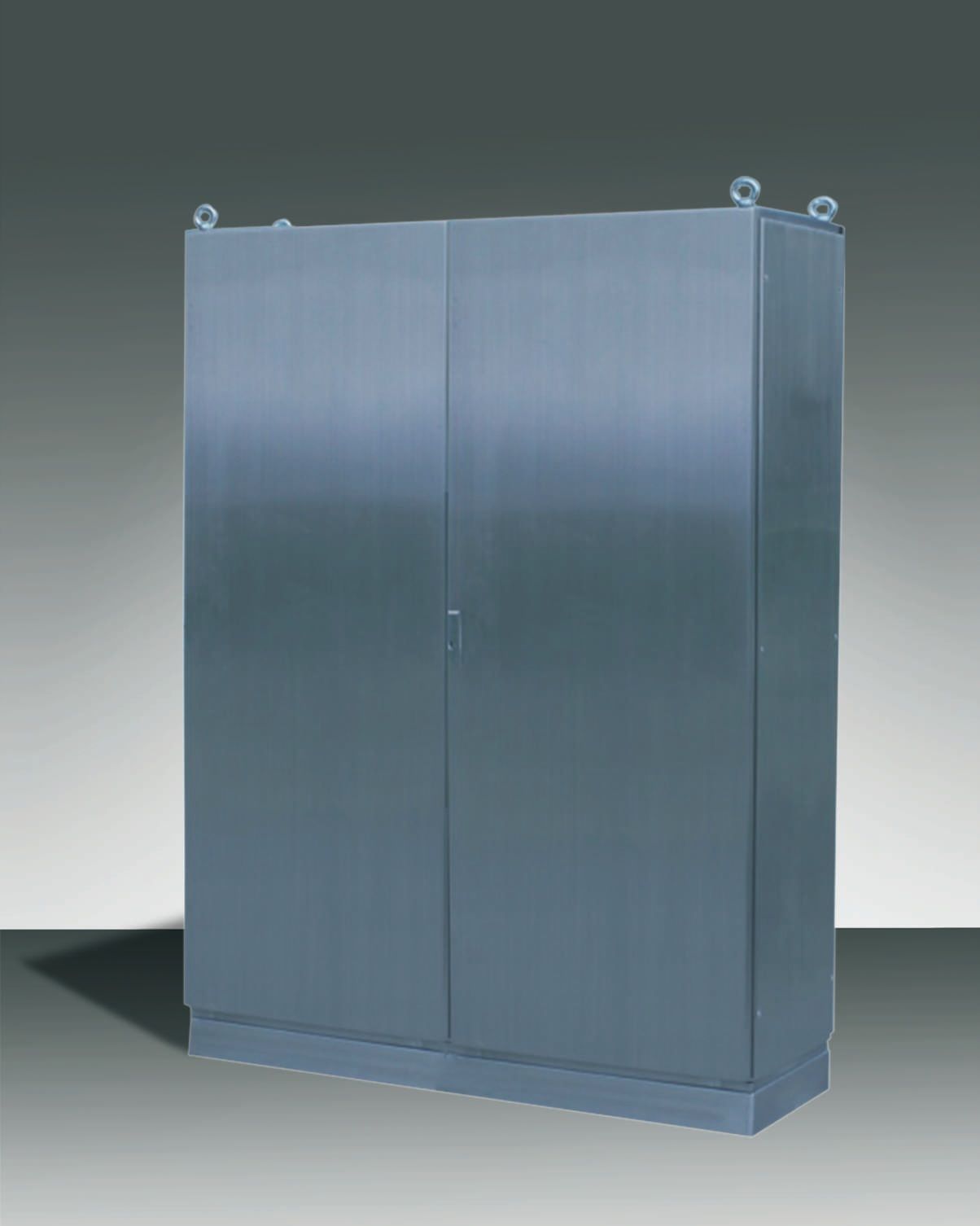

AR9X/D stainless steel cabinet-Double door
Material: stainless steel AISI304 or AISI316 (on request)
Thickness:front door 2.0mm/ rear panel 1.5mm/side panels 1.5mm/top cover &bottom cable plate 1.5mm/galvanised mounting plate 2.5mm/
9-folded rails1.5mm
Protection ratings:IP 55
Impact resistance IK10
Supply include:
9-folded rails 4pcs/set,door complete with MS821-X locking system and hinges ,rear
panel, side panels 2pcs/set,top cover,bottom with
removable cable entry,4 lifting eyebolts
| MODEL | WXHXD (mm) | NO.of door |
| AR9X 1810/4D | 1000*1800*400 | 2 |
| AR9X 1810/5D | 1000*1800*500 | 2 |
| AR9X 1810/6D | 1000*1800*600 | 2 |
| AR9X 1812/4D | 1200*1800*400 | 2 |
| AR9X 1812/5D | 1200*1800*500 | 2 |
| AR9X 1812/6D | 1200*1800*600 | 2 |
| AR9X 1810/4D | 1000*1800*400 | 2 |
| AR9X 1810/5D | 1000*1800*500 | 2 |
| AR9X 1810/6D | 1000*1800*600 | 2 |
| AR9X 1812/4D | 1200*1800*400 | 2 |
| AR9X 1812/5D | 1200*1800*500 | 2 |
| AR9X 1812/6D | 1200*1800*600 | 2 |
| AR9X 2210/4D | 1000*2000*400 | 2 |
| AR9X 2210/5D | 1000*2000*500 | 2 |
| AR9X 2210/6D | 1000*2000*600 | 2 |
| AR9X 2212/4D | 1200*2000*400 | 2 |
| AR9X 2212/5D | 1200*2000*500 | 2 |
| AR9X 2212/6 | 1200*2000*600 | 2 |
AR8X one piece floor stand stainless steel cabinet-single door
Material: stainless steel AISI304 or AISI316 (on request)
Protection degree:IP 55
Impact resistance IK10
Thickness of the sheet steel:
Front door 2.0mm/ enclosure body 1.5mm/ galvanised mounting plate: 2.5mm/ bottom cable plate 1.5mm
Supply include:
AR8X structure enclosure body,door complete with MS821-X locking system and
hinges ,bottom with removable cable entry.4 lifting eyebolts
| Model | W×H×D (mm) | NO. of door | | Model | W×H×D (mm) | NO.of door |
| AR8X 128/3 | 800*1200*300 | 1 | | AR8X 188/3 | 800*1800*300 | 1 |
| AR8X 146/3 | 600*1400*300 | 1 | | AR8X 188/4 | 800*1800*400 | 1 |
| AR8X 146/4 | 600*1400*400 | 1 | | AR8X 188/5 | 800*1800*500 | 1 |
| AR8X 148/3 | 800*1400*300 | 1 | | AR8X 188/6 | 800*1800*600 | 1 |
| AR8X 148/4 | 800*1400*400 | 1 | | AR9X 20 6/3 | 600*2000*300 | 1 |
| AR8X 166/3 | 600*1600*300 | 1 | | AR9X 20 6/4 | 600*2000*400 | 1 |
| AR8X 166/4 | 600*1600*400 | 1 | | AR9X 20 6/5 | 600*2000*500 | 1 |
| AR8X 168/3 | 800*1600*300 | 1 | | AR9X 20 6/6 | 600*2000*600 | 1 |
| AR8X 168/4 | 800*1600*400 | 1 | | AR9X 20 8/3 | 800*2000*300 | 1 |
| AR8X 186/3 | 600*1800*300 | 1 | | AR9X 20 8/4 | 800*2000*400 | 1 |
| AR8X 186/4 | 600*1800*400 | 1 | | AR9X 20 8/5 | 800*2000*500 | 1 |
| AR8X 186/5 | 600*1800*500 | 1 | | AR9X 20 8/6 | 800*2000*600 | 1 |
| AR8X 186/6 | 600*1800*600 | 1 | | | | |
AR8XP stainless steel cabinet with toughened glass door
Protection degree:IP 55
Impact resistance IK10
Thickness of the sheet steel:
Front door 2.0mm/ enclosure body 1.5mm/bottom cable plate 1.5mm/galvanised mounting plate: 2.5mm/ toughened glass window 5.0mm
Supply include:
AR8X structure cabinet body,door complete with MS821-X locking system with toughened
glass window, and hinges , bottom with removable cable entry,4 lifting eyebolts
| Model | W×H×D (mm) | NO. of door | | Model | W×H×D (mm) | NO.of door |
| AR8XP 128/3 | 800*1200*300 | 1 | | AR8XP 188/3 | 800*1800*300 | 1 |
| AR8XP 146/3 | 600*1400*300 | 1 | | AR8XP 188/4 | 800*1800*400 | 1 |
| AR8XP 146/4 | 600*1400*400 | 1 | | AR8XP 188/5 | 800*1800*500 | 1 |
| AR8XP 148/3 | 800*1400*300 | 1 | | AR8XP 188/6 | 800*1800*600 | 1 |
| AR8XP 148/4 | 800*1400*400 | 1 | | AR9XP 20 6/3 | 600*2000*300 | 1 |
| AR8XP 166/3 | 600*1600*300 | 1 | | AR9XP 20 6/4 | 600*2000*400 | 1 |
| AR8XP 166/4 | 600*1600*400 | 1 | | AR9XP 20 6/5 | 600*2000*500 | 1 |
| AR8XP 168/3 | 800*1600*300 | 1 | | AR9XP 20 6/6 | 600*2000*600 | 1 |
| AR8XP 168/4 | 800*1600*400 | 1 | | AR9XP 20 8/3 | 800*2000*300 | 1 |
| AR8XP 186/3 | 600*1800*300 | 1 | | AR9XP 20 8/4 | 800*2000*400 | 1 |
| AR8XP 186/4 | 600*1800*400 | 1 | | AR9XP 20 8/5 | 800*2000*500 | 1 |
| AR8XP 186/5 | 600*1800*500 | 1 | | AR9XP 20 8/6 | 800*2000*600 | 1 |
| AR8XP 186/6 | 600*1800*600 | 1 | | | | |
AR8X/D one piece stainless steel cabinet-Double doorMaterial: stainless steel AISI304 or AISI316 (on request)
Protection degree:IP 55
Impact resistance IK10
Thickness of the sheet steel:
Front door 2.0mm/ enclosure body 1.5mm/bottom cable plate 1.5mm/galvanised mounting plate: 2.5mm
Supply include:
AR8X structure enclosure body,double door complete with MS821-X locking
system and hinges ,bottom with removable cable entry.4 lifting eyebolts
| MODEL | WXHXD (mm) | NO.of door |
| AR8X 1010/3D | 1000*1000*300 | 2 |
| AR8X 1210/3D | 1000*1200*300 | 2 |
| AR8X 1212/4D | 1200*1200*400 | 2 |
| AR8X 1410/4D | 1000*1400*400 | 2 |
| AR8X 1412/4D | 1200*1400*400 | 2 |
| AR8X 1610/3D | 1000*1600*300 | 2 |
| AR8X 1610/4D | 1000*1600*400 | 2 |
| AR8X 1612/3D | 1200*1600*300 | 2 |
| AR8X 1612/4D | 1200*1600*400 | 2 |
| AR8X 1810/4D | 1000*1800*400 | 2 |
| AR8X 1810/5D | 1000*1800*500 | 2 |
| AR8X 1812/4D | 1200*1800*400 | 2 |
| AR9X 1816/4D | 1600*1800*400 | 2 |
| AR9X 1816/5D | 1600*1800*500 | 2 |
| AR9X 2010/4D | 1000*2000*400 | 2 |
| AR9X 2010/5D | 1000*2000*500 | 2 |
| AR9X 2210/6D | 1000*2000*600 | 2 |
| AR9X 2212/4D | 1200*2000*400 | 2 |
| AR9X 2212/5D | 1200*2000*500 | 2 |
| AR9X 2212/6D | 1200*2000*600 | 2 |
| AR9X 2216/4D | 1600*2000*400 | 2 |
| AR9X 2216/5D | 1600*2000*500 | 2 |
| AR9X 2216/6D | 1600*2000*600 | 2 |
more size to be request to the clients
