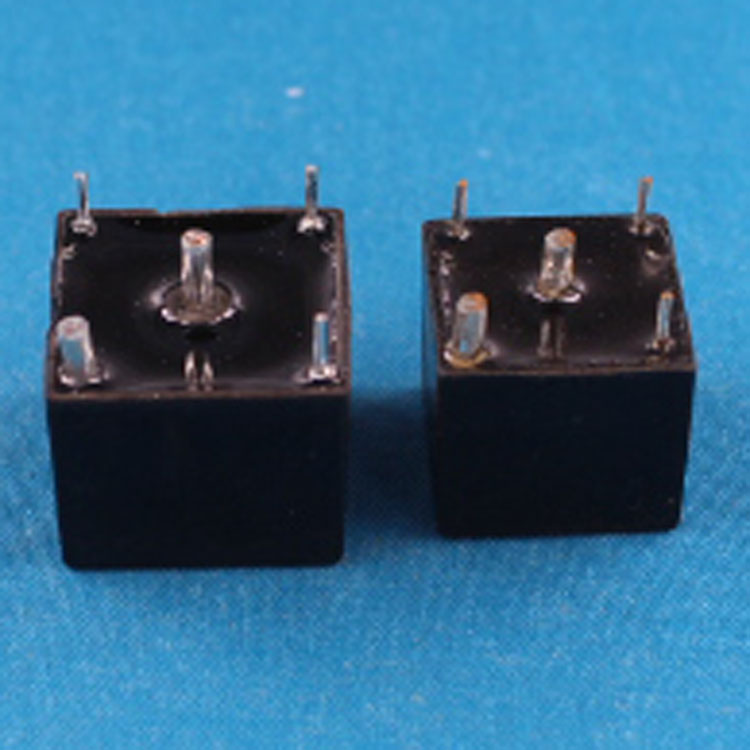

Straight Blade Current Transformer CT-082K-1.0

Name: Straight Blade Current Transformer CT-082K-1.0
Brand: all-electronics-online.com
SKU: 840572945
Availability: InStock
Rating: 4.9 (120 reviews)

Price:	US $ 1.00/Piece
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

1. Product Type: Current Transformer
1.1 Product NO:simonsen123 CT-082K-1.0 5A/5mA
1.2 Installation: Vertical insertion or horizontal installation or leads output, leads length adjusted.
2. Feature
2.1 Application: electronic energy meter, instrument, current sensor, PDU, switch power, induction cooker.
2.2 Phase: single
2.3 Usage: measurement
2.4 Insulating medium: epoxy resin
2.5 Certification: RoHS, ISO 9001:2008

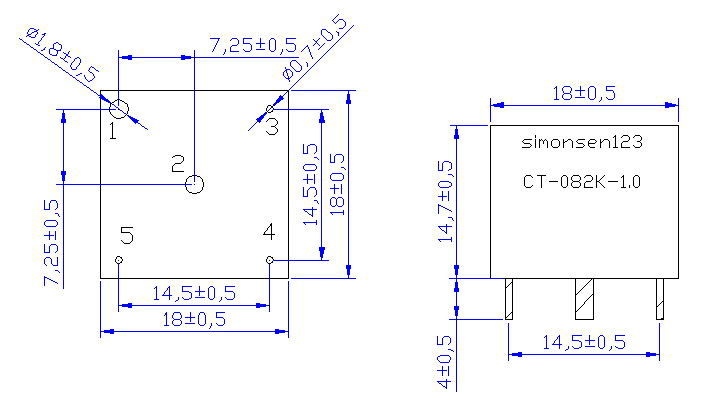

3. Size (mm)

Performance Parameter

Product NO	Primary Currrent	Coil Ratio	Secondary Current	Load Resistance	Out voltage	Accuracy	Phase Component	Quadrature Component	Max Current
CT-082K-1.0	0~5A	1000:1	0~5mA	≤100Ω	≤500mV	≥0.1%	≤0.05%	≤5'
CT-082K-2.0	0~10A	2000:1	0~5mA	≤100Ω	≤500V	≥0.1%	≤0.1%	≤6'
CT-082D-1.0	0~20A	1000:1	0~20mA	≤10Ω	≤1000mV	≥0.1%	≤0.05%	≤5'
CT-082K-0.1L	0~2A	100:1	20mA	≤10Ω	≤200mV
CT-082K-0.2	0~2A	200:1	10mA	≤10Ω	≤100mV	L=80mH~150mH 1KHZ/0.25V
CT-082K-0.5	0~2A	500:1	4mA	≤10Ω	≤40mV

5. Security Parameters :
5.1 Primary Winding and Secondary Winding:3KV/2mA/60Sec;
5.2 Insulation Resistance:≥100MΩ /500V DC;
5.3 Inflaming Retarding: up to the standard of UL94-V0; environmental protection meets the muster of ROHS and pass the test of SGS ROHS;
5.4 Usage Temperature: -40ºC~+85ºC Relative Humidity ≤95%;
5.5 Operating Frequency: 1KHZ~70KHZ

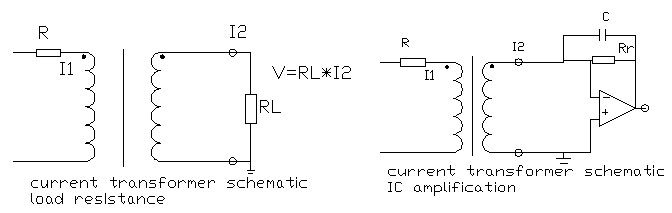

Schematic

Prod Model:	CT-082K-1.0
Structure:	Magnetic Bead
Type:	Straight Blade Current Transformer
Brand:	Simonsen123
