| Prod Model: |
TSA-003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP: |
65 |
| Max. Current: |
5A |
| Max. Voltage: |
AC250V |
| Material: |
Stainless Steel Idler Wheel |
| Weight: |
580-680g |
| Pressing Type: |
Spring Roller |
| Protection: |
Waterproof |
| Size: |
Small-Sized |
| Breaking Form: |
Duplex Type |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
Micro-Current |
| Brand: |
Chnanma |
Product Description

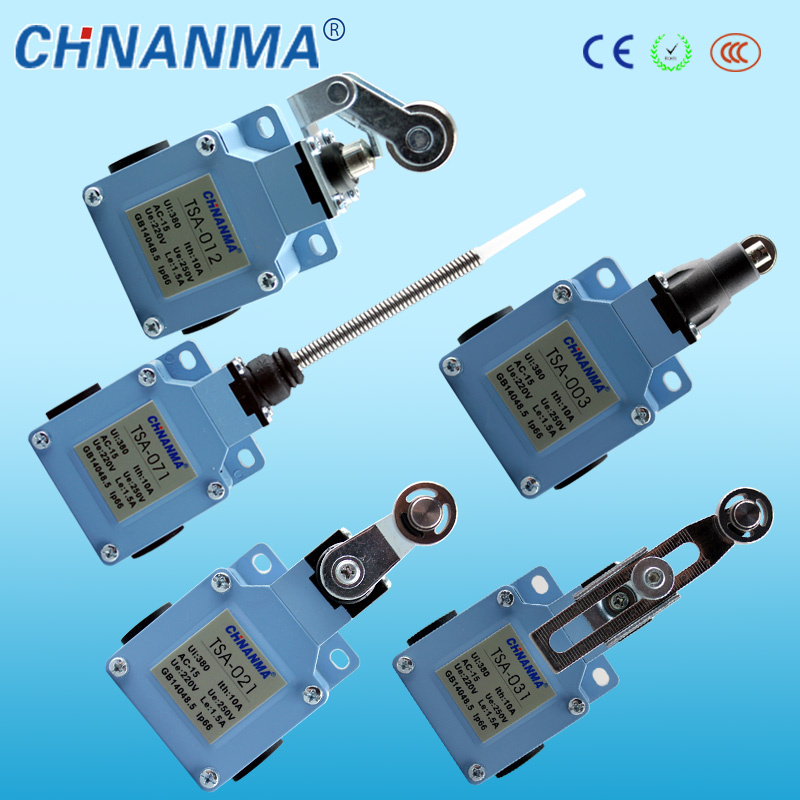

1.Roller plunger limit switch
1)Strong metal outer shell.
2)Long life(20,000,000mechanical operations)
3)Stainless steel idler wheel,punch and spring.
4)Selective PG11 cable gland.
5)250V AC, 5A rated current ,50Hz ,
6)Completely Aluminium body ,Stainless steel roller plunger.
7) IP66
8)Selective PG11 cable gland. NO/NC
2.Electrical Parameters
| Double break Mechanism | INO+INC Force Break Snap action |
| Rated voltage/current | 10(4)A,125,250VAC |
| 6(2)A,380VAC |
| For inductance load,Cos=0.4 |
| Contact resistance | Initial<10mΩ,after testing<30mΩ |
| Instulation voltage | Min,100mΩ at 500VDC |
| Delectric strength | AC2000 VAC1 minute for exposed metal/terminals,ground and between opposite ploes |
| Electrical life | 500,000 at 10A 250VAC resistive at tripping PT 2.5mm-3.0mm |
| Mechanical life | 20,000,000 at tripping PT 2.5mm-3.0mm |
| Operating speed | 240 cycles/minute Max:1-160mm/second(mech) |
| 30 cycles/minute Max;1-20mm/second(rated elect) |
| Degree of protection | IP66 |
| Ambient temperature rised | Max 30ºC over ambient temperature at rated voltage/current |
| Operating temperature | -25ºC~+80ºC |
| Storage temperature | -25ºC~+80ºC |
| Humdity | 95'R.H.Max(No.dewing) |
| Shock resistance | Free position 10G |
| Overtravel position 30G |
| Vibration frequency | 55Hz Max |
| Terminal screw locking force | 6-8gjf-cm |
| Other forces | Cover 12-14kgf-cm/head 8-9kgf-cm/mounting 50-60kgf-cm |
| Bare wire gauge | Φ2mm Max |
| Cable diameter | Φ12mm Max |
3.Operating Characteristics
| Specificaiton | Model | TSA-021 |
| Operating force | OF Max | 400g-cm |
| Release force | RF Min | 100g-cm |
| Pre-travel | PT Max | 20º |
| Tripping position | OT Min | 22.5º |
| Movement Differential | MD Max | 10º |
| Over Travel | OT Max | 75º |
| Total travel | TT mm | 95º |
| Rotary indexing |
| 22.5º |
| Weight |
| 650-690g |
