Supply Safety Shut off Switch for Patio Heater
| Price: |
US $ 0.65/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Supply Safety Shut off Switch for Patio Heater
Model: V-16TA

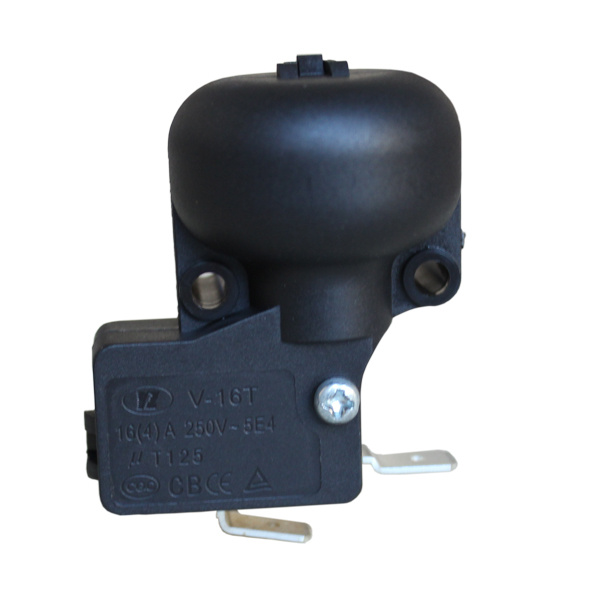

Picture of Safety Shut off Switch / Circuit Protective Switch / Tip Over Switch
Features of Safety Shut off Switch:
-Falll-Protect Switch
-Nice Appearance
-Reliable quality
-Quick action and high sensitivity
-Used in room heater, gas heater, electric heater, oil heater
-To make the heaters work safety, fall protective function
Safety Shut off Switch Working Principle:
- As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.
- When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.
Find us for Safety Shut off Switch / Circuit Protective Switch / Tip Over Switch
Xiamen Universal Electronic Co., Ltd
No. 318. South Tongji Road, Jimei District, Xiamen City, Fujian, China
Mobile: 86-15606002688
Tel: 86-592-5782488
Fax: 86-592-5664223 | Item | Value |
| Fall-Protect | Action Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5° |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 6 cycles/min |
| Insulation Resistance | 100 MΩ(500VDC) |
Contact Resistance | Gold-plated | Below 15 mΩ |
| No Gold-plated | 30-40 mΩ |
Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
Shork Resistance | Let switch fall freely from 200mm high into the cement flool or
Armor plate horizontal.
One time,one side(Up,dowm,left,right,front,back) |
| Life Expectancy | Mechnical>=5000000 cycles
Electrical>=10000 cycles |
| Degree of protection | IEC IP40 |
| Degree of protection against electric shock | Class I |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | 125 ºC 60%RH below(No ice and dew) |
| Ambient air humidity | 85% Rhbelow(about +5~+35 ºC) |
| Weight | Approx.39.7g |
| Prod Model: |
V-16TA |
| Theory: |
Safety Shut off Switch |
| Rated Current: |
16A |
| Package: |
300PCS/CTN |
| Carton Size: |
370mm*315mm*360mm |
| Certificates: |
Ce, CB, TUV, CQC, etc |
| Pressing Type: |
Push-Button |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
Micro-Current |
| Breaking Form: |
Single Type |
| Application: |
Electric Heaters |
| Brand: |
Universal |
