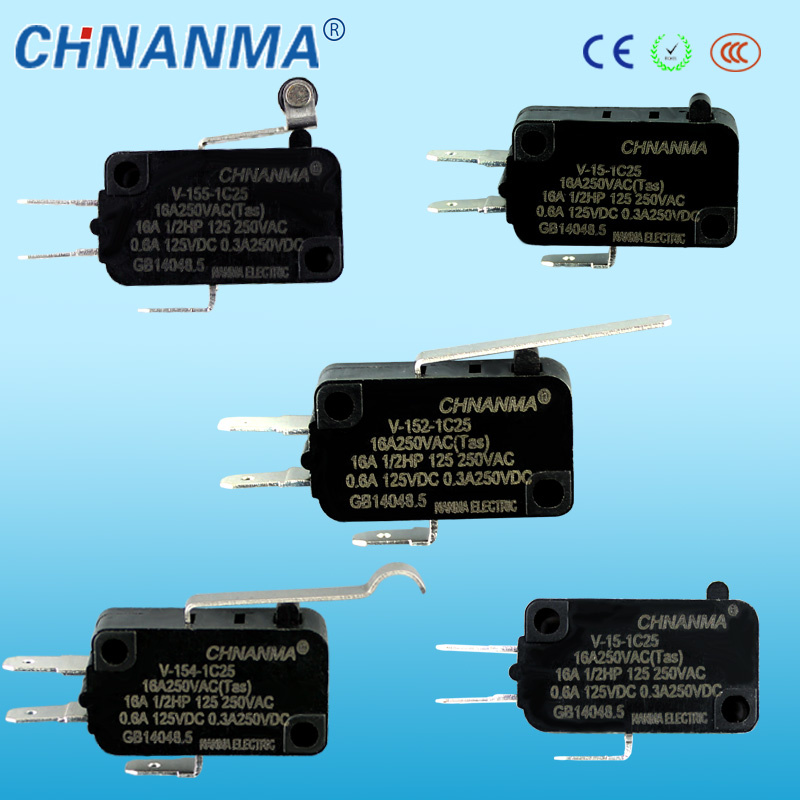

Types of Electrical High Temperature Limit Switch for Crane

Prod Model:	V-152-1C25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mechanical Life:	1,000,000times Above
Electrical Life:	100,000times Above
Max. Current:	20A
Max. Voltage:	250VAC
Color:	Black
Operating Temperature:	-25-80c
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Small-Sized
Breaking Form:	Single Type
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Brand:	Chnanma

Product Description

1.Characteristics and Using:
Adopt thermosetting plastic or thermoplastic;
Small contact gap,snap action,high sensitivity and small operating travel;
Variety of levers;
Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.

2.Specification

Item		Date
Operation speed		0.1mm-1m/s
Operation frequency	Mechanical	600time/min
	Electrical	40time/min
Insulation resistance		100MΩ(above)(DC500V)
Contact resistance		25MΩ initial value
Withstand voltage	Non-connection wire	1500VAC
	Every terminal	2000VAC
Vibration	Misoperation	10-55Hz(Amplitude)1.5mm
Impact	Durable	1000m/s
	Misoperation	300m/s
Life	Electrical	10,000(above)
	Mechanical	1,000,000(above)
Pretection degree		IP40
Ambient operating temperature		"-25+80ºC
Humidity		<=82%
Ue(v)	Le(A)	1th(A)
AC-250	7.5	10
AC-125	15	20
DC-250	0.3	0.45
DC-125	0.6	0.75

3.Operating Characteristics

Operation speciality	V-21-1-6	V-16-1-5
OF	250g	125g
RF	25g	14g
PT	4.0mm
OT	1.6mm
MD	1.5mm(0.5mm)
OP	20.7±1.2mm

4.Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.


5.Customer's questions
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

6.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
