| Prod Model: |
W26L |
| Certification: |
UL TUV CQC |
| Contact Material: |
Agsno2 |
| Installation Type: |
PCB |
| UL Insulation Class: |
F |
| Operate Time: |
Max.20ms |
| Release Time: |
Max.20ms |
| Weight: |
44G |
Product Description
Basic Info

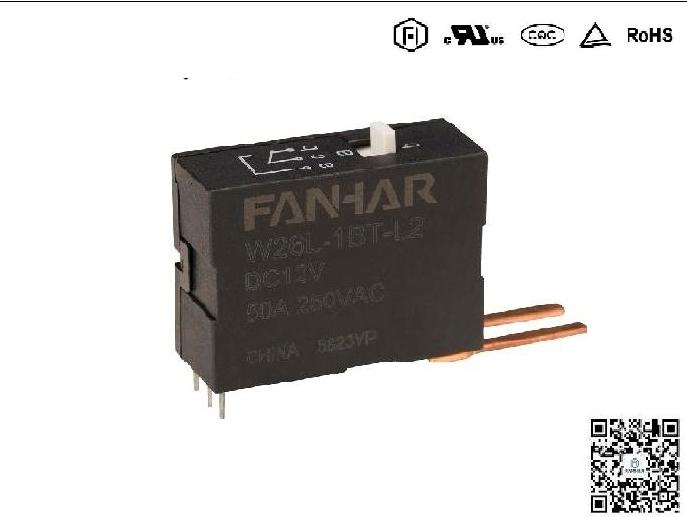

Model NO.: W26L
Contact Form: 1A= OPEN 1B = 1 CLOSE 1C = transformation
Contact material: T=AgSnO2
Control type: Nil: No Manual Control switch M: Manual control switch
Coil Type: L1= Single Coil L2 = Double Coil
Action Polarity: Nil:Standard Polarity R = Reverse Polarity
Dimension: 38.8*28.7*15 MM
Weight: Approx 44g
Trademark: FANHAR
Origin: China
Product Description
1. 40A contact switching capability
2. Only needs pulse excitation, low power consumption and small size.
3.Small size, PCB installation.
4. In line with the standard of IEC62055-31: 2005 version.
Contact Data:
| Contact Form | 1A 1B | 1C |
| Rated load | 40A 250VAC | 25A 250VAC |
| Max Switching Voltage | 277VAC | |
| Max Switching Current | 40A | 25A |
| Max Switching Capacity | 10000VA | 6250VA |
| Min Allowing load | 5VDC 100mA | |
| Contact Resistance | 2.0mΩ (at 6VDC 1A) | |
| Insulation Resistance | 1500MΩ 1Min | |
General Data:
| Withstand Voltage Between open contacts | 1500VAC 1min |
| Between coil and contacts | 4000VAC 1min |
| Withstand impact voltage | Between coil and contacts 10kv(1.2X50us) |
| Operate Time | Max.20ms |
| Release Time | Max.20ms |
| Mechanical life | 1,000,000 ops ON/OFF = 0.1s/0.1s |
| Electrical life | 50,000 ops ON/OFF=1s/9s |
Impact Resistance Misoperation
Durability | 100m/s² Approx10G
1000m/s² Approx100G |
Vibration Resistance Misoperation
Durability | 10 - 55 Hz 1.5mm Double Amplitude
10 - 55 Hz 1.5mm Double Amplitude |
| Temperature Range | -40ºC to +70ºC |
| Humidity | 5% to 85% |
| Installation type | PCB Mounting |
| Certification | UL ISO ROHS TUV CQC |
Coil Data:
Single Coil:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 6V | Below 75%
rated voltage (initial) | Below 75%
rated voltage (initial) | 167mA | 36Ω | 1.0W | 90-150 %
Rated voltage |
| DC 9V | 111mA | 81Ω |
| DC 12V | 83.3mA | 144Ω |
| DC 24V | 41.7mA | 576Ω |
Double Coil:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 6V |
Below 75%
rated voltage (initial) |
Below 75%
rated voltage (initial) | 333/333mA | 18/18Ω |
2.0W |
90-150 %
Rated voltage |
| DC 9V | 222/222mA | 40.5/40.5Ω |
| DC 12V | 167/167mA | 72/72Ω |
| DC 24V | 83/83mA | 288/288Ω |
