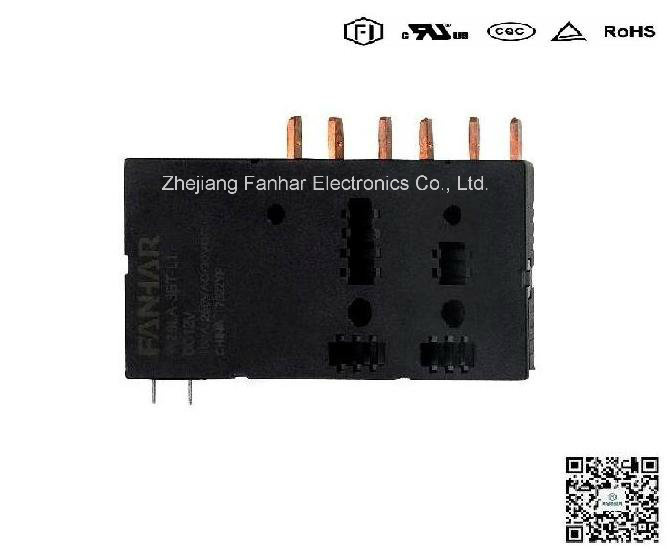

Latching Relay for Smart Home with TUV

Name: Latching Relay for Smart Home with TUV
Brand: all-electronics-online.com
SKU: 820868535
Availability: InStock
Rating: 4.8 (83 reviews)

Price:	US $ 9-11.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Basic Info

Model NO.: W29LA
Contact Form: 3B = 1 CLOSE CONTACTS
Contact material: T=AgSnO2
Coil Type: L1= Single Coil L2 = Double Coil
Dimension: 110*52*24 MM
Weight: Approx 380g
Trademark: FANHAR
Origin: China

Product Description
1. Three sets of 120A contact switching capability,with auxiliary contacts
2. Only needs pulse excitation, low power consumption and small size.
3.Be able to weld accessories according to clients'require
4. In line with the standard of IEC62055-31: 2005 version.
5. The pressure between contact and coil: 4KV
Contact Data:

Contact Form	3B
Rated load	100A 250VAC
Max Switching Voltage	380VAC
Max Switching Current	120A
Max Switching Capacity	30000VA
Min Allowing load	5VDC 100mA
Contact Resistance	1.0mΩ (at 6VDC 1A)
Insulation Resistance	500MΩ 1Min

General Data:

Withstand Voltage Between open contacts	2000VAC 1min
Between contact group	4000VAC 1min
Between coil and contacts	4000VAC 1min
Withstand impact voltage	Between coil and contacts 8KVAC
Operate Time	Max.60ms
Release Time	Max.60ms
Mechanical life	1,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	50,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	98m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 85%
Installation type	PCB Mounting

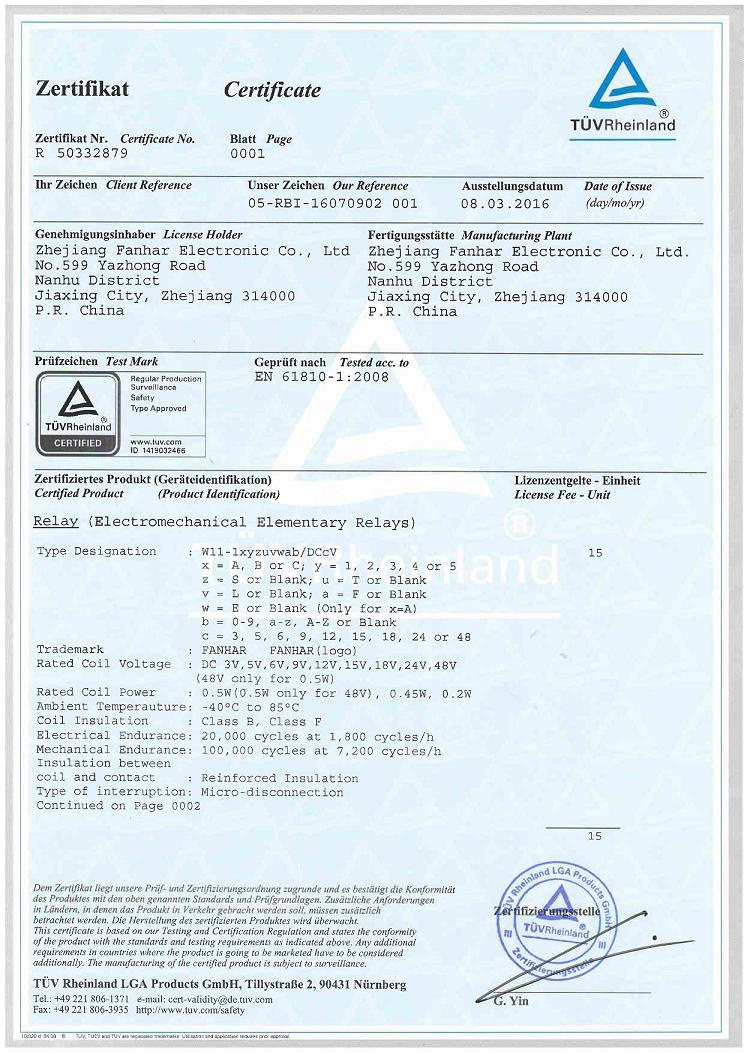

Certificates	UL TUV CQC ISO

Coil Data:
Single Coil:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 6V	Below 75% rated voltage (initial)	Below 75% rated voltage (initial)	370mA	16.2Ω	5.0W	90-150 % Rated voltage
DC 9V			313mA	28.8Ω
DC 12V			104mA	115.2Ω
DC 24V			52.3mA	460Ω

Double Coil:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 6V	Below 75% rated voltage (initial)	Below 75% rated voltage (initial)	740/740mA	8.1/8.1Ω	10W	90-150 % Rated voltage
DC 9V			625/625mA	14.4/14.4Ω
DC 12V			208/208mA	57.6/57.6Ω
DC 24V			104/104mA	230/230Ω

Prod Model:	W29LA
Certification:	UL TUV CQC
Contact Material:	Agsno2
Installation Type:	PCB
UL Insulation Class:	F
Operate Time:	Max.60ms
Weight:	380g

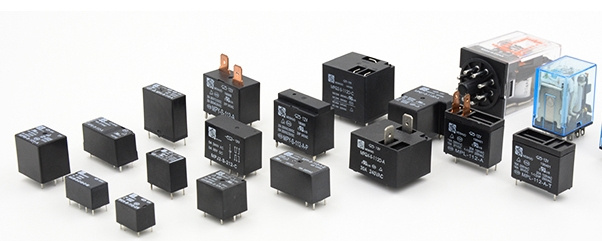

Zhejiang Fanhar Electronics Co., Ltd. is a National Hi-Tech enterprise specialized in research, development, production and sales of relays. With more than 30 series, hundreds of product specifications, our relays are widely used in power control, smart home, household appliances, electric vehicles and charging pile, industrial control and emerging energy fields.
