Latching Relay with Closed Contact Arrangement for Smart Meter

Name: Latching Relay with Closed Contact Arrangement for Smart Meter
Brand: all-electronics-online.com
SKU: 820868035
Availability: InStock
Rating: 4.6 (92 reviews)

Price:	US $ 2.2-3.7/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Basic Info

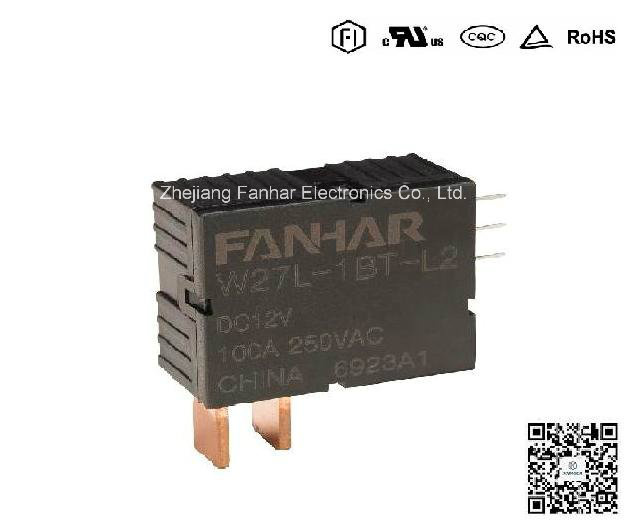

Model NO.: W27L
Contact Form: 1B = 1 CLOSE
Contact material: T=AgSnO2
Coil Type: L1= Single Coil L2 = Double Coil
Action Polarity: Nil:Standard Polarity R = Reverse Polarity
Dimension: 42*32*20.8 MM
Weight: Approx 70g
Trademark: FANHAR
Origin: China

Product Description
1. 120A contact switching capability
2. Only needs pulse excitation, low power consumption and small size.
3.be able to weld accessories according to clients needs
4. In line with the standard of IEC62055-31: 2005 version.

Contact Data:

Contact Form	1B
Rated load	100A 250VAC
Max Switching Voltage	250VAC
Max Switching Current	120A
Max Switching Capacity	30000VA
Min Allowing load	5VDC 100mA
Contact Resistance	1.0mΩ (at 6VDC 1A)
Insulation Resistance	500MΩ 1Min

General Data:

Withstand Voltage Between open contacts	2000VAC 1min
Between coil and contacts	4000VAC 1min
Operate Time	Max.30ms
Release Time	Max.30ms
Mechanical life	5,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	10,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	98m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +70ºC
Humidity	5% to 85%
Installation type	PCB Mounting
certification	UL ISO TUV CQC

Coil Data:
Single Coil:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 6V	Below 75% rated voltage (initial)	Below 75% rated voltage (initial)	333mA	18Ω	2.0W	90-150 % Rated voltage
DC 9V			222mA	40.5Ω
DC 12V			167mA	72Ω
DC 24V			83mA	288Ω

Double Coil:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 6V	Below 75% rated voltage (initial)	Below 75% rated voltage (initial)	666/666mA	9/9Ω	4.0W	90-150 % Rated voltage
DC 9V			444/444mA	20.3/20.3Ω
DC 12V			334/334mA	36/36Ω
DC 24V			166/166mA	144/144Ω

Prod Model:	W27L
Certification:	UL TUV CQC
Contact Material:	Agsno2
Installation Type:	PCB
UL Insulation Class:	F
Operate Time:	Max.30ms
Release Time:	Max.30ms
Weight:	70g
