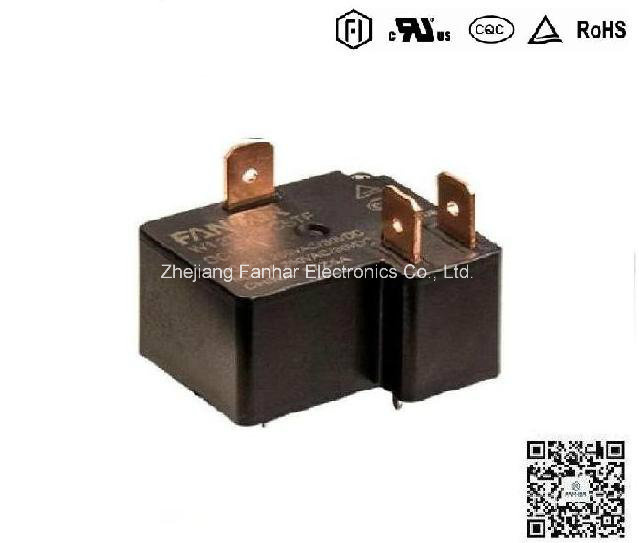

PCB Mounting Power Relay for Smart Meter

Name: PCB Mounting Power Relay for Smart Meter
Brand: all-electronics-online.com
SKU: 820804915
Availability: InStock
Rating: 4.6 (114 reviews)

Price:	US $ 0.45-0.6/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Basic Info

Model NO.: W12TP
Contact Form: 1A = 1 OPEN 1B= CLOSED 1C= 1 Switch
Product protective: S=Sealed Nil= Soldered
Contact material: AgSnO2
Dimension: 31.5*27*18.5 MM
Weight: Approx 29g
Trademark: FANHAR
Origin: China

Product Description
1. 40A contact switching capability
2. Printed plate leads and quick connection leads
3. UL insulation class : F grade.

Contact Data:

Contact Form	1A 1B 1C
Rated load	30A 250VAC 20A 30VDC
Max Switching Voltage	277VAC/30VDC
Max Switching Current	40A
Max Switching Capacity	7500VA/600W
Min Allowing load	5VDC 100mA
Contact Resistance	100mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	1500VAC 1min
Between coil and contacts	4000VAC 1min
Operate Time	Max.15ms
Release Time	Max.10ms
Mechanical life	5,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	30A 250VAC 50,000 ops ON/OFF=1s/9s 20A 30VDC 100,000 ops ON/OFF=1s/9s 20A 250VAC pf=0.6 100,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting

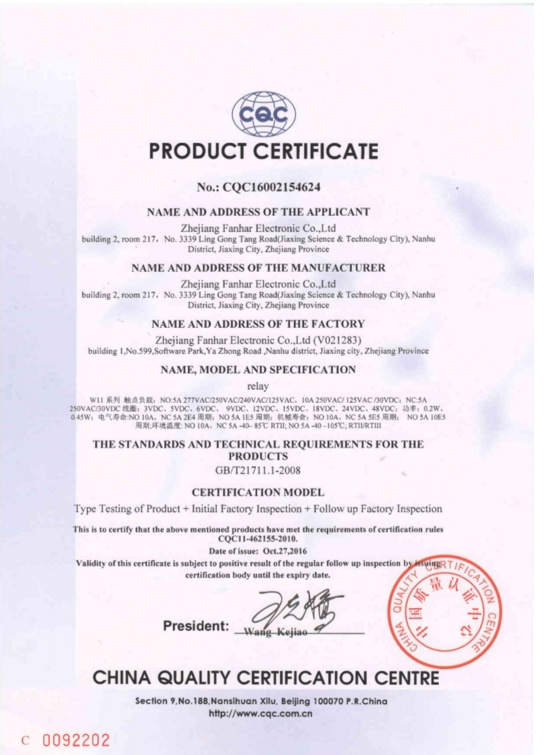

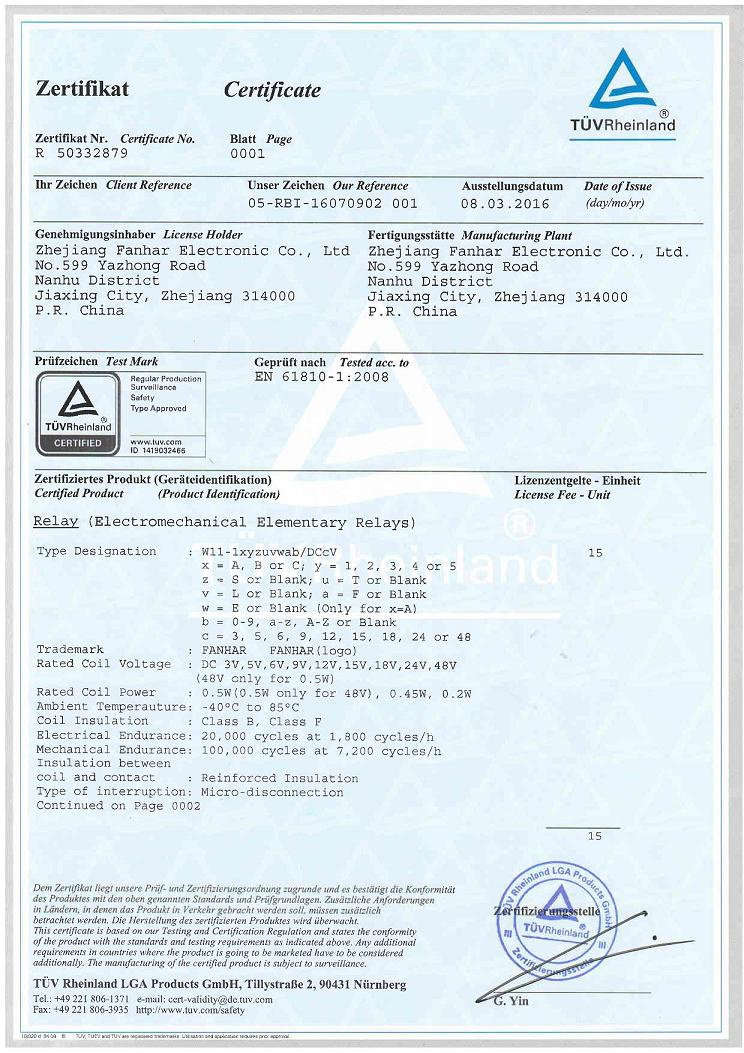

Certification	UL/C-UL:E475405 TUV:R50338930 CQC:CQC16002140939

Coil Data:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 5V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	180mA	27.8Ω	900mW	90-130 % Rated voltage
DC 6V			150mA	40Ω
DC 9V			100mA	90Ω
DC 12V			75mA	160Ω
DC 15V			60mA	250Ω
DC 18V			50mA	360Ω
DC 24V			37.5mA	640Ω
DC 36V			25mA	1440Ω
DC 48V			18.75mA	2560Ω
DC 110V			8.19mA	13444.5Ω

Prod Model:	W12TP
Certification:	UL TUV CQC
Contact Material:	Agsno2
Installation Type:	PCB
UL Insulation Class:	F
Operate Time:	Max.15ms
Release Time:	Max.10ms
Weight:	29g
