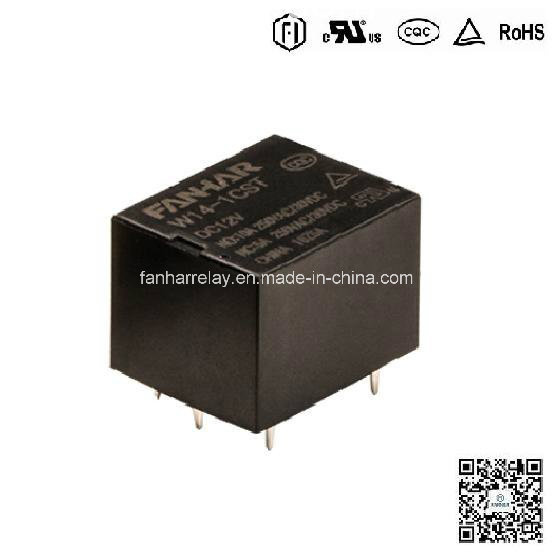

Power Relay with TUV Certification for Smart Home

Name: Power Relay with TUV Certification for Smart Home
Brand: all-electronics-online.com
SKU: 820806615
Availability: InStock
Rating: 4.8 (99 reviews)

Price:	US $ 0.15-0.3/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Basic Info

Model NO.: W14
Contact Form: 1A = 1 OPEN 1C= 1 Switch
Product protective: S=Sealed Nil= Soldered
Contact material: AgSnO2
Coil power: Nil:360mW H= 450mW
Insulation System:Nil:B grade F= F grade
Dimension: 19*15.2*15.5 MM
Weight: Approx 7g
Trademark: FANHAR
Origin: China

Product Description
1. 15A contact switching capability
2. UL insulation class : F grade
3. The temperature of working environment can reach 105 ºC.
4. Ultra-small, standard printed circuit board leading foots.

Contact Data:

Contact Form	1A 1C
Rated load	10A 250VAC/30VDC 15A 125VAC
Max Switching Voltage	277VA/30VDC
Max Switching Current	15A
Max Switching Capacity	2500VAC/300W
Min Allowing load	5VDC 100mA
Contact Resistance	100mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	750VAC 1min
Between coil and contacts	2000VAC 1min
Operate Time	Max.10ms
Release Time	Max.5ms
Mechanical life	10,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	5A 250VAC/30VDC 100,000 ops ON/OFF=1s/9s 10A 250VAC/30VDC 50,000 ops ON/OFF=1s/9s 15A 125VAC 50,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC/105ºC
Humidity	5% to 90%
Installation type	PCB Mounting

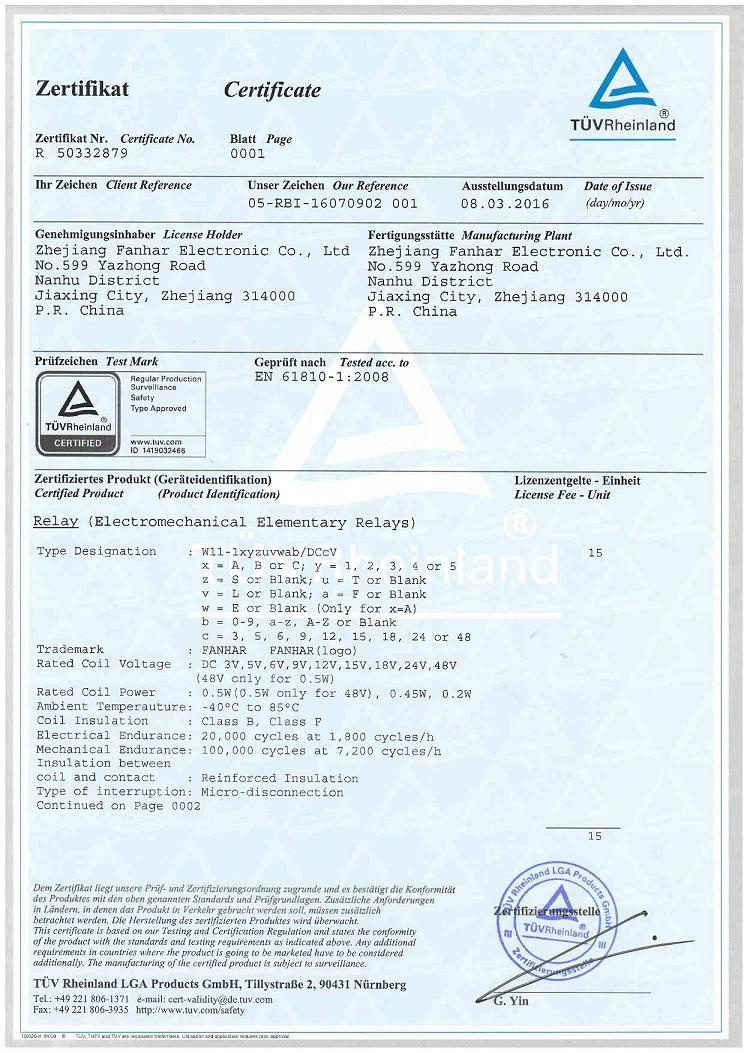

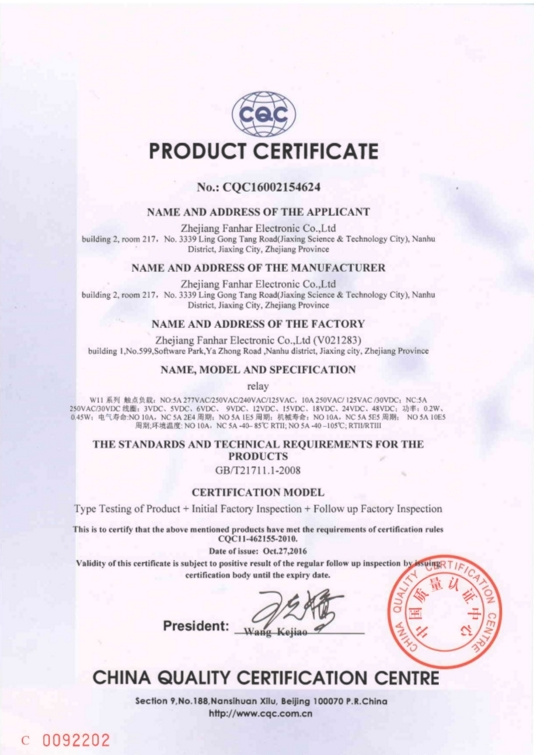

Certification	UL/C-UL:E475405 TUV:R50323750 CQC:CQC15002135519

Coil Data:
Standard:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 3V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	120mA	25Ω	360mW	90-120 % Rated voltage
DC 5V			72mA	69.4Ω
DC 6V			30mA	100Ω
DC 9V			40mA	225Ω
DC 12V			30mA	400Ω
DC 15V			24mA	625Ω
DC 18V			20mA	900Ω
DC 24V			15mA	1600Ω
DC 48V			7.5mA	6400Ω

High Power consumed:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 3V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	150mA	20Ω	450mW	90-120 % Rated voltage
DC 5V			90mA	55.6Ω
DC 6V			75mA	80Ω
DC 9V			50mA	180Ω
DC 12V			37.5mA	320Ω
DC 15V			30mA	500Ω
DC 18V			25mA	720Ω
DC 24V			18.75mA	1280Ω
DC 48V			9.4mA	5120Ω

Prod Model:	W14
Certification:	UL TUV CQC
Contact Material:	Agsno2
Installation Type:	PCB
UL Insulation Class:	F
Operate Time:	Max.10ms
Release Time:	Max.5ms
Weight:	7g
