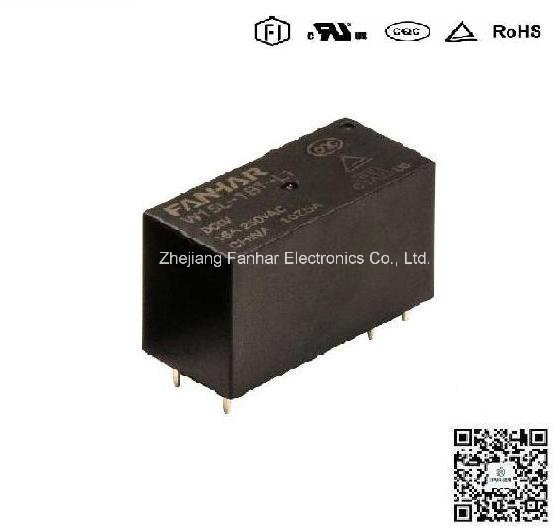

Relay with Hand Control for Intelligent Smart Home

Name: Relay with Hand Control for Intelligent Smart Home
Brand: all-electronics-online.com
SKU: 820811295
Availability: InStock
Rating: 4.7 (74 reviews)

Price:	US $ 0.75-1.2/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Basic Info

Model NO.: W15L
Contact Form: 1A = 1 OPEN 1B= CLOSE 1C= 1 Switch
Product protective: S=Sealed Nil= Soldered
Contact material: AgSnO2
Coil type: L1:single coil L2= double coil
Control type:None= none hand control type M:with hand control type
Operation Polarity: Nil:Standard Polarity R: Reversed Polarity
Insulation System:Nil:B grade F= F grade
Dimension: 29*12.7*15.7 MM
Weight: Approx 15g
Trademark: FANHAR
Origin: China

Product Description
1. 20A contact switching capability
2. Be able to bear 750A short-circuit inrush current
3. The withstand voltage between coil and contact can reach 10KV.
4. Contact off with manual control switch
5.UL insulation class : F grade

Contact Data:

Contact Form	1A 1B 1C
Rated load	16A 250VAC/30VDC 20A 250VAC
Max Switching Voltage	277VA/30VDC
Max Switching Current	20A
Max Switching Capacity	5000VAC/480W
Min Allowing load	5VDC 100mA
Contact Resistance	50mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	1000VAC 1min
Between coil and contacts	4000VAC 1min
Operate Time	Max.15ms
Release Time	Max.15ms
Mechanical life	5,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	16A 250VAC/30VDC 100,000 ops ON/OFF=1s/9s 20A 250VAC/30VDC 50,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting
Certification	UL/C-UL:E340054

Coil Data:
Single coil:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 5V	Below 75% rated voltage (initial)	Below 75% rated voltage (initial)	100mA	50Ω	500mW	90-150 % Rated voltage
DC 6V			83mA	72Ω
DC 9V			55.6mA	162Ω
DC 12V			41.7mA	288Ω
DC 24V			20.8mA	1152Ω

Double coil:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 5V	Below 75% rated voltage (initial)	Below 75% rated voltage (initial)	200mA	25Ω	1000mW	90-150 % Rated voltage
DC 6V			167mA	36Ω
DC 9V			111mA	81Ω
DC 12V			83mA	144Ω
DC 24V			41.6mA	576Ω

Prod Model:	W15L

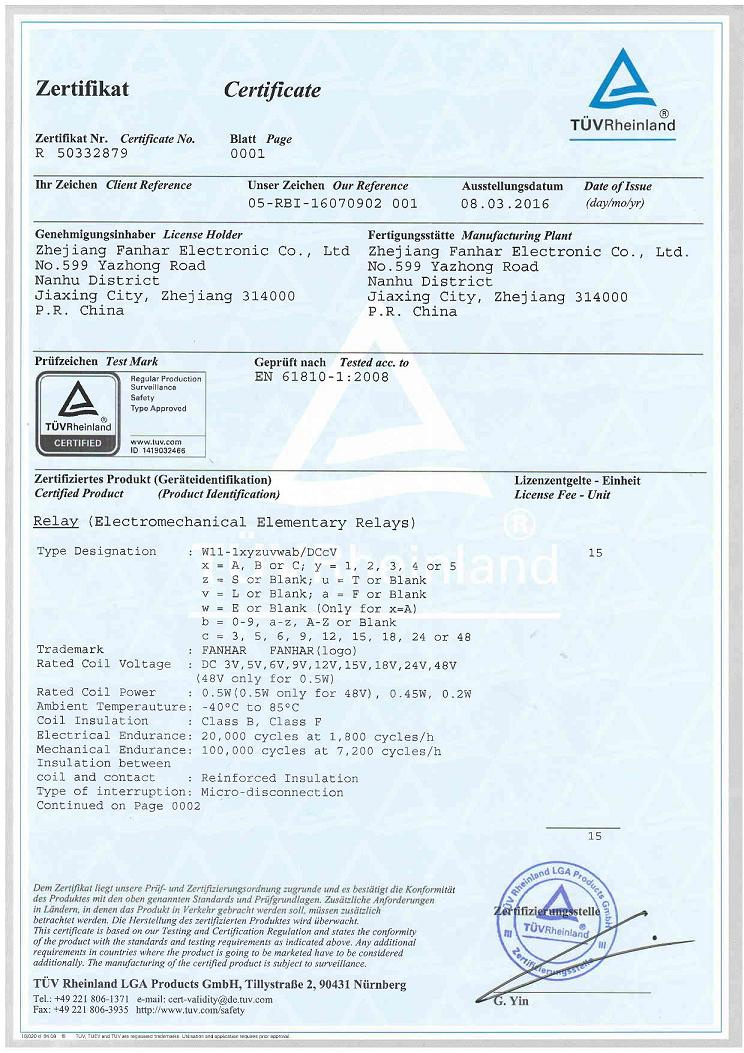

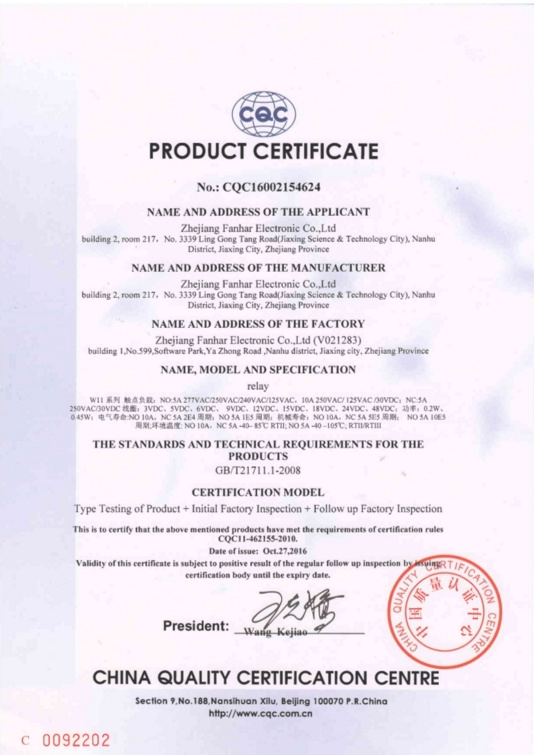

Certification:	UL TUV CQC
Contact Material:	Agsno2
Installation Type:	PCB
UL Insulation Class:	F
Operate Time:	Max.15ms
Release Time:	Max.15ms
Weight:	15g
