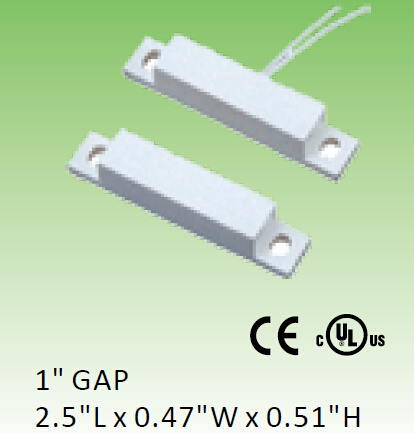

Wired Magnetic Contact Sensor with UL (BS-2025)

Name: Wired Magnetic Contact Sensor with UL (BS-2025)
Brand: all-electronics-online.com
SKU: 699528712
Availability: InStock
Rating: 4.4 (103 reviews)

Price:	US $ 0.60-0.85/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

BS-2025 series

* Surface mounted contact

* Center leads with #22AWG 18" length

* Screw mount

* Special leads on request

* Switches or magnets available seperately

* Resistor, Diode and Supervisory Loop available on request

* Colors: White, Brown, Grey

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Departure Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BS-2025	Closed	N/O	1 1/4(31)	1.38(34)	0.150	10	100	0.5
BS-2025A	Open	N/C	1 (25)		0.150	3	30	0.2
BS-2025C	Closed&Open	SPDT	1 (25)		0.150	3	30	0.2

Prod Model:	BS-2025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
