| Prod Model: |
LM18-3008PC |
| Output Current: |
200mA |
| Standard Detected Object: |
18*18*1(A3 Iron) |
| Repeated Precision: |
0.02 |
| Response Frequency: |
200Hz/25Hz |
| Working Environment Temperature: |
-25c ~+75ºC |
| Outpur: |
PNP.No+Nc |
| Range: |
8mm |
| Quantity: |
2PCS |
| Voltage: |
6-36V |
| Name: |
Proximity Sensor Switch |
Product Description
YUMO LM18-3008PC detecting range 8mm Proximity sensor switch
Specifications
| Output current | DC | 200mA |
| SCR/relay | 300mA |
| Output voltage drop | DC(NPN;PNP) <3V;2wires type:<3.9V;AC type: AC <10VDC< 3V ;AC< 10V |
| Consumption current | DC(NPN;PNP) 12V 8mA;24V 15mA; AC type: <10mA |
| Standard detected object | 18×18×1(A3 Iron) |
| Repeated precision | 0.02 |
| Response Frequency | 200Hz/25Hz |
| Working environment temperature | -25C ~+75ºC |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IP67 |
| Alternative model | E2E-X18M* |

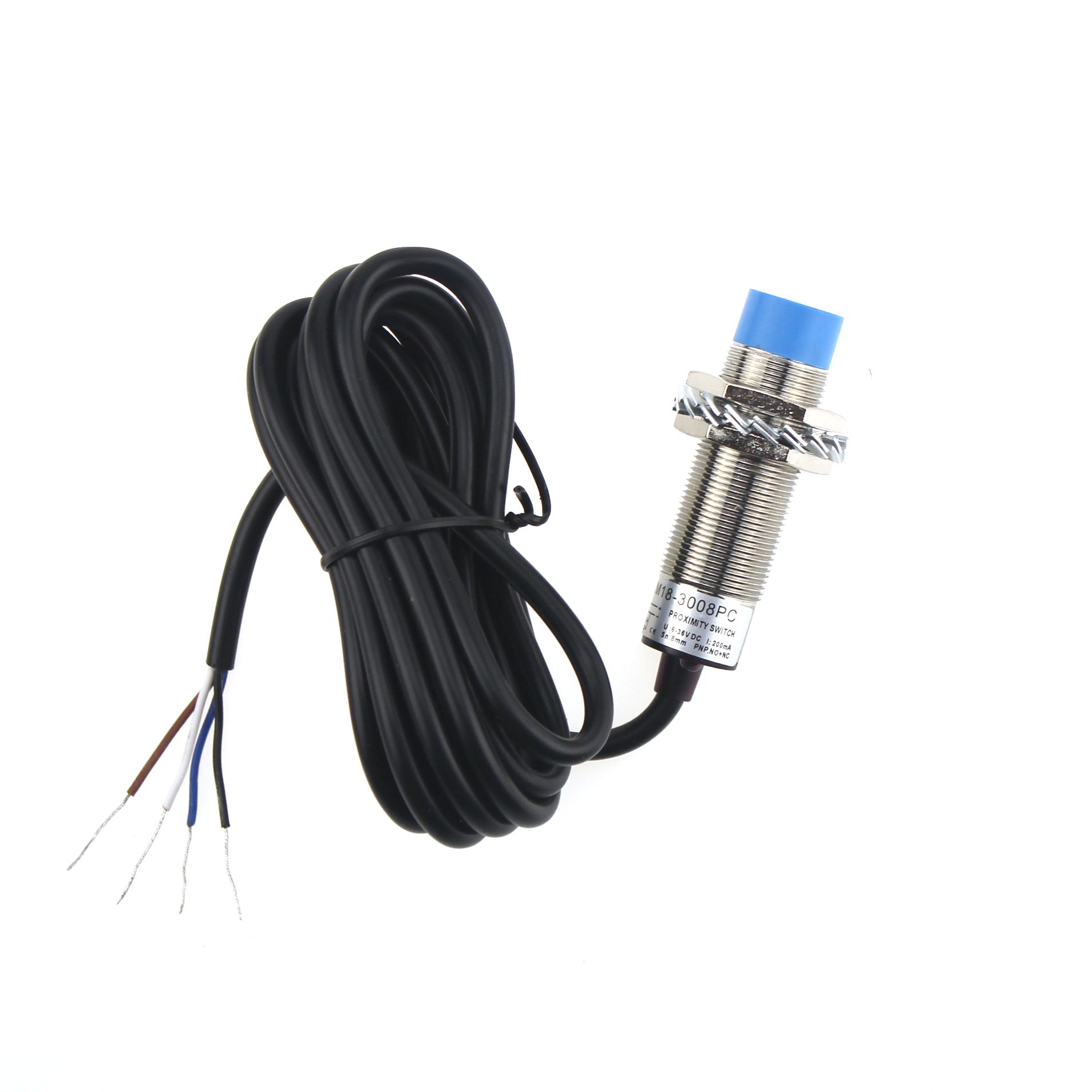

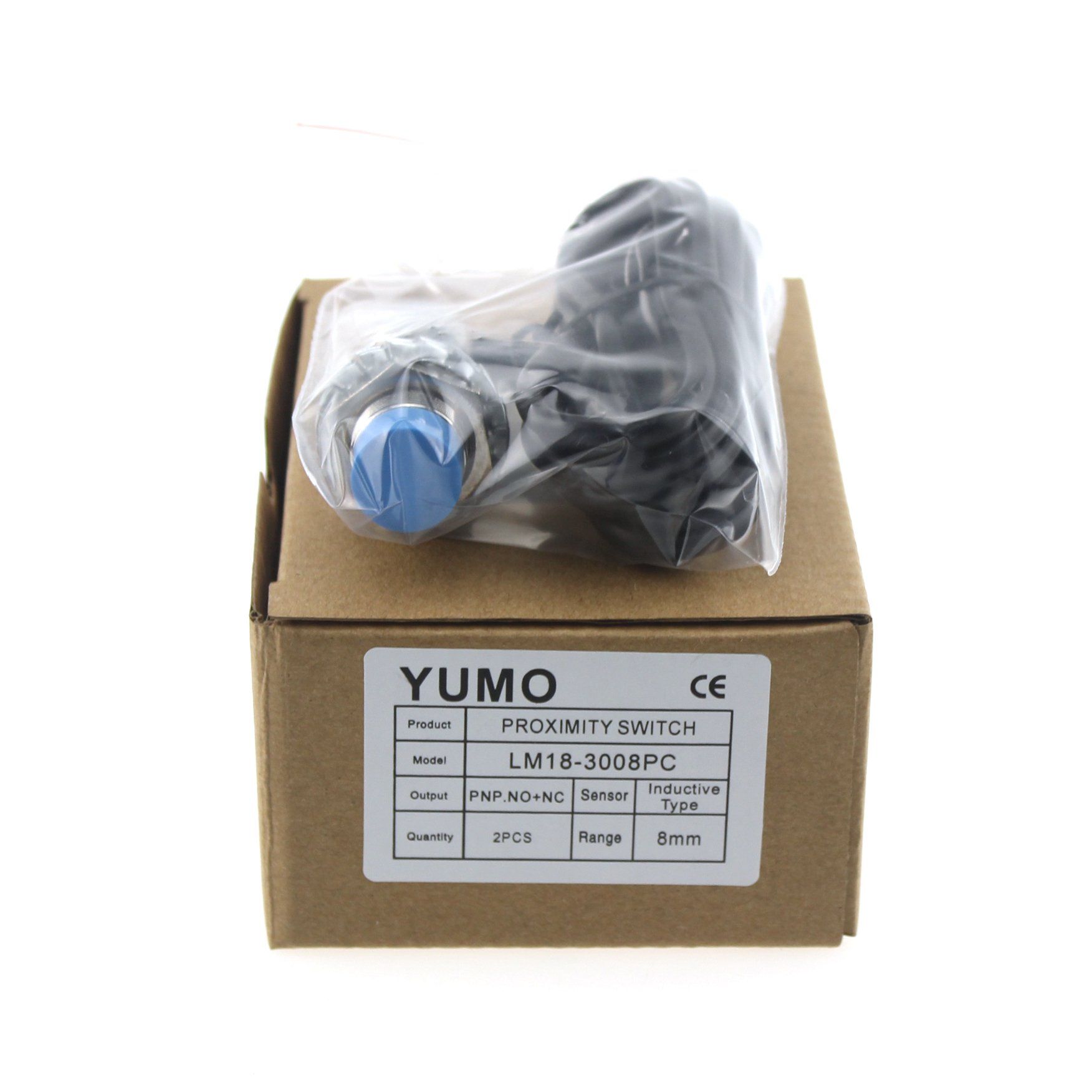

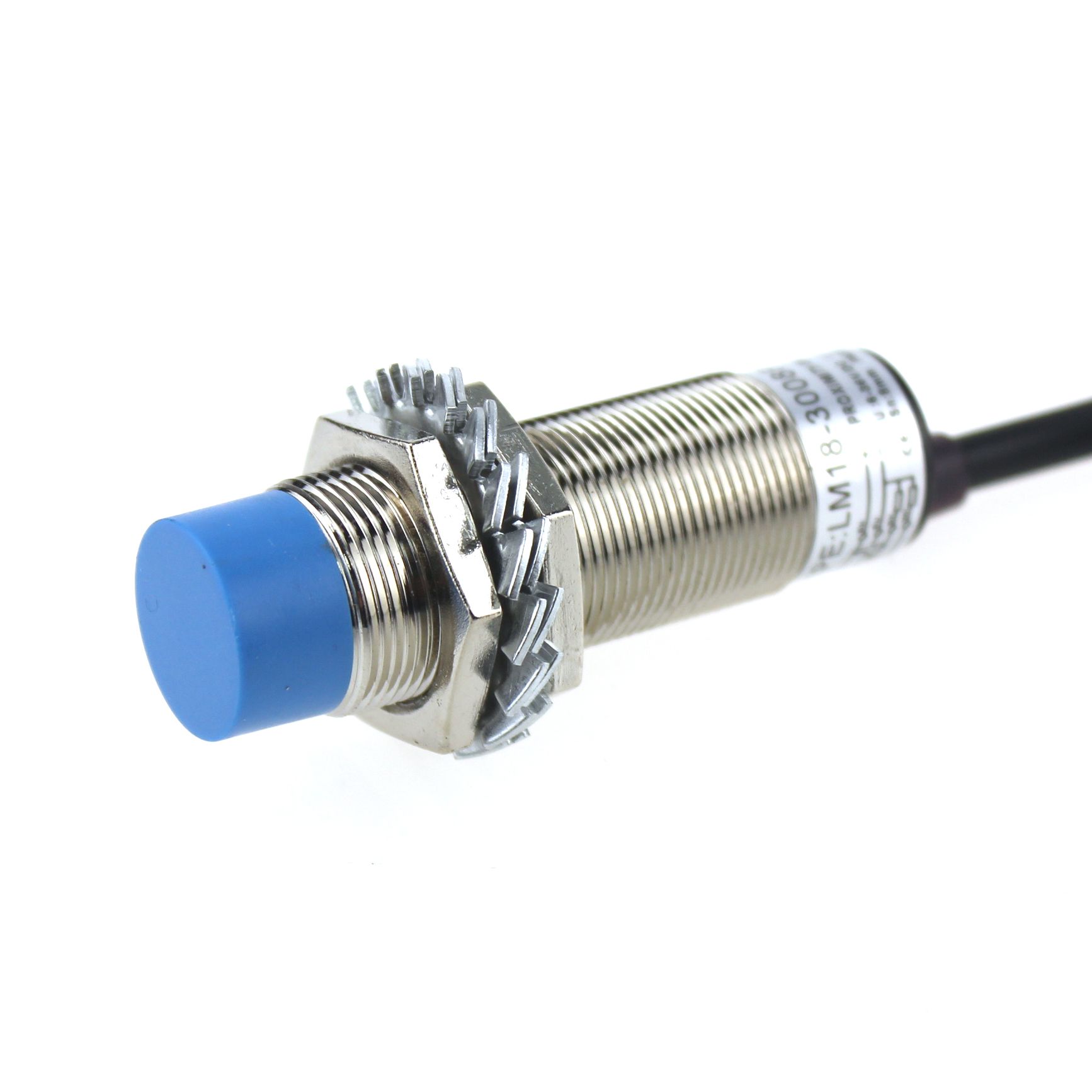

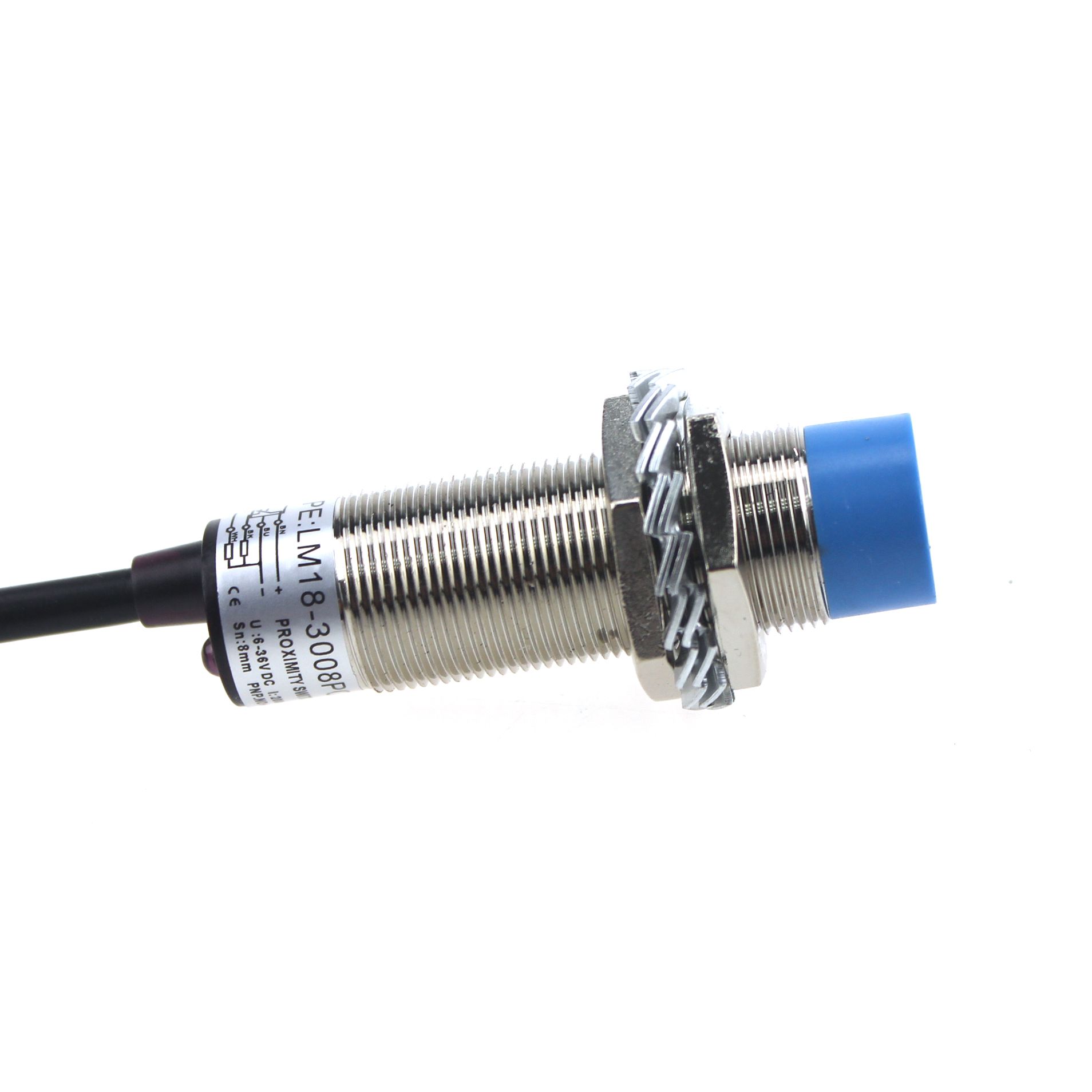

Product picture
