Prod Model: |
LM18-3008PCT |
Output Current: |
200mA |
Standard Detected Object: |
18*18*1(A3 Iron) |
Repeated Precision: |
0.02 |
Response Frequency: |
200Hz/25Hz |
Working Environment Temperature: |
-25c ~+75ºC |
Outpur: |
PNP.No+Nc |
Range: |
8mm |
Quantity: |
2PCS |
Voltage: |
6-36V |
Name: |
Proximity Sensor Switch |
Product Description

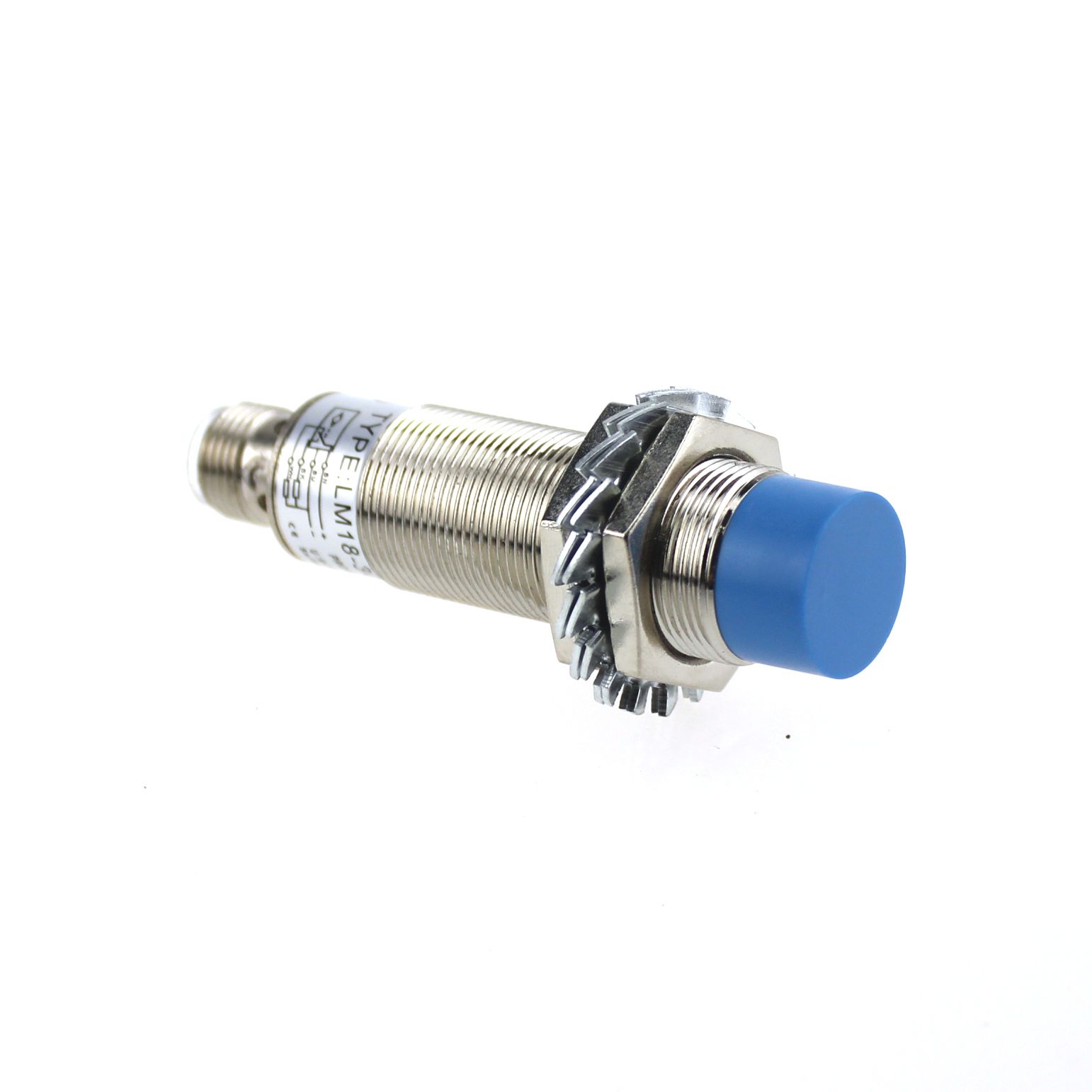

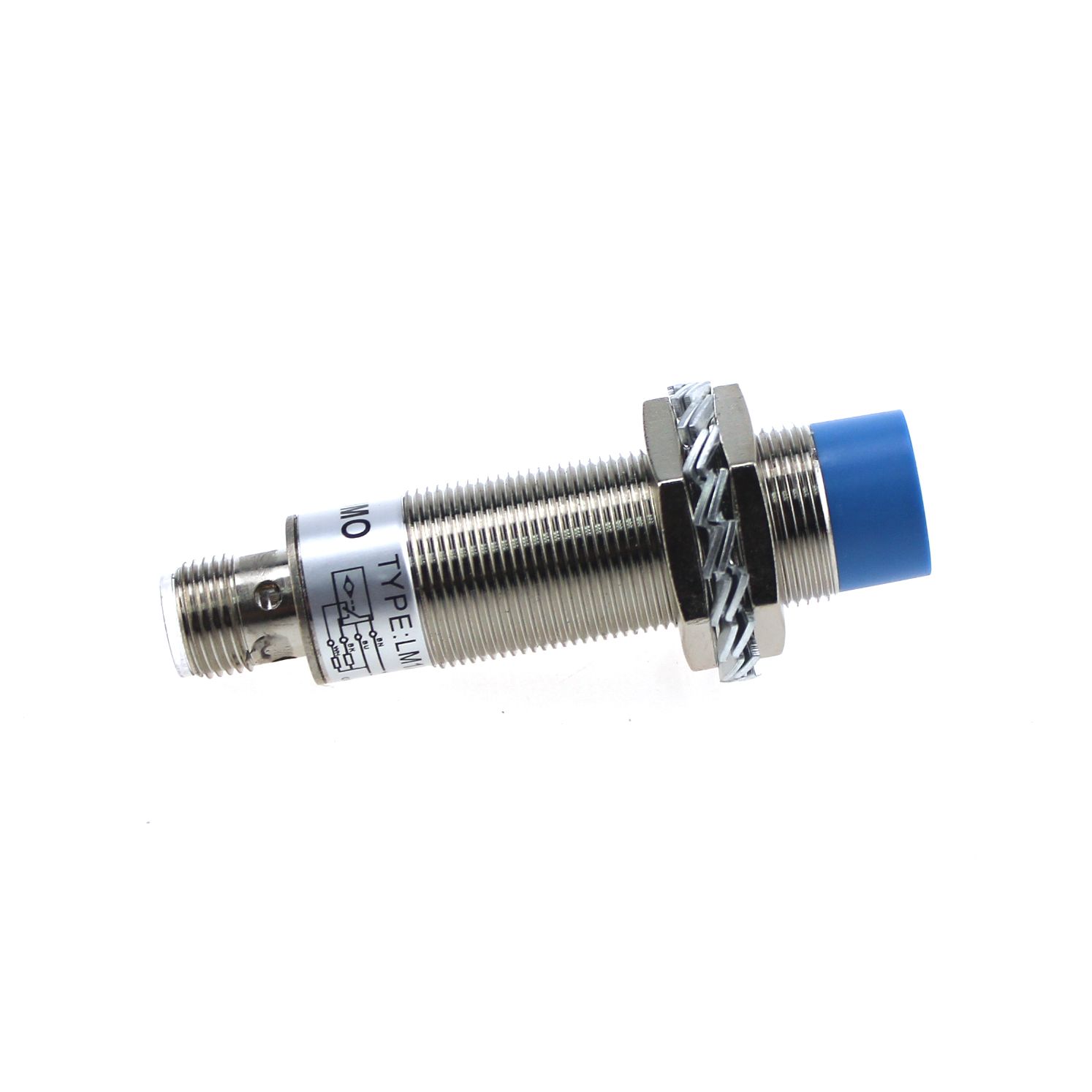

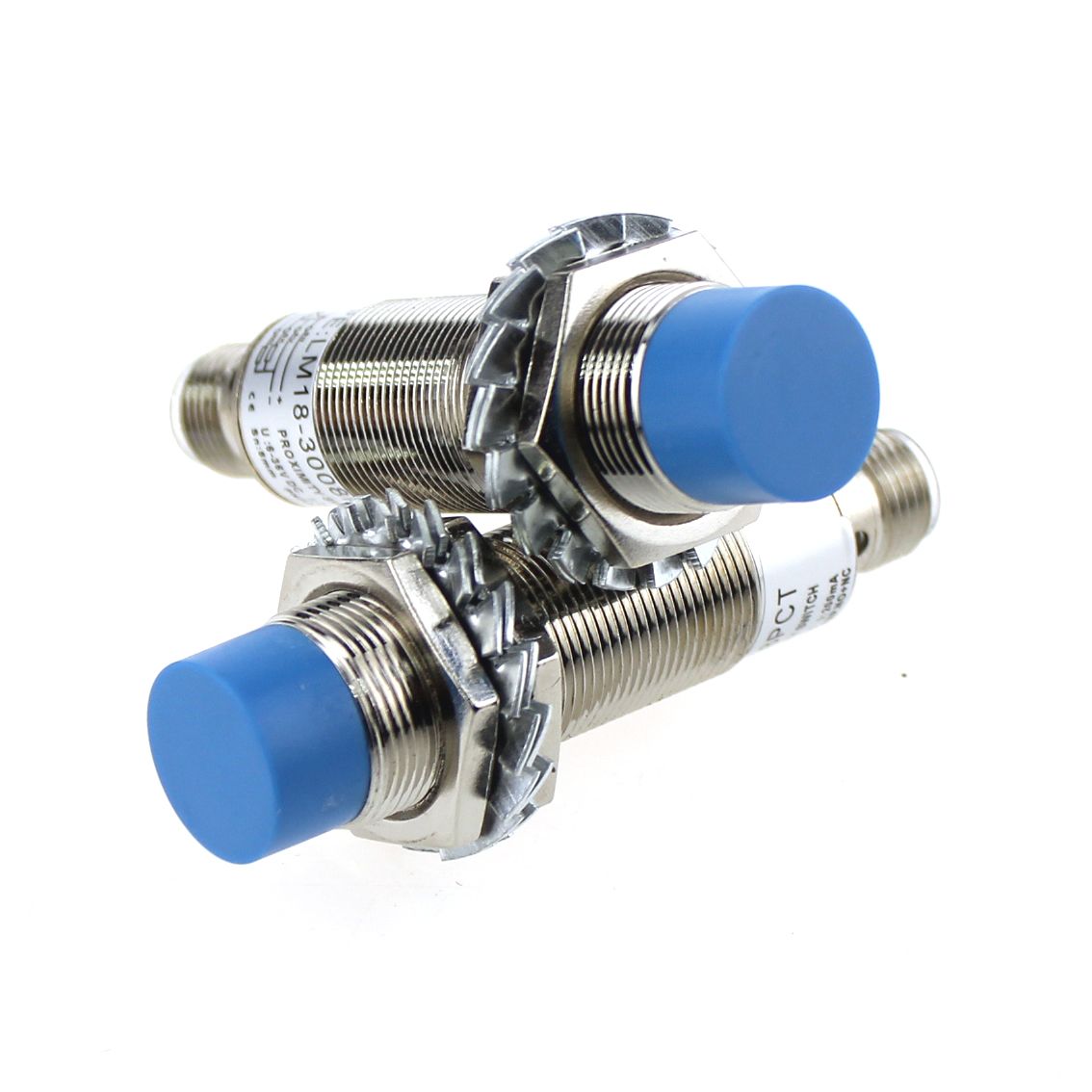

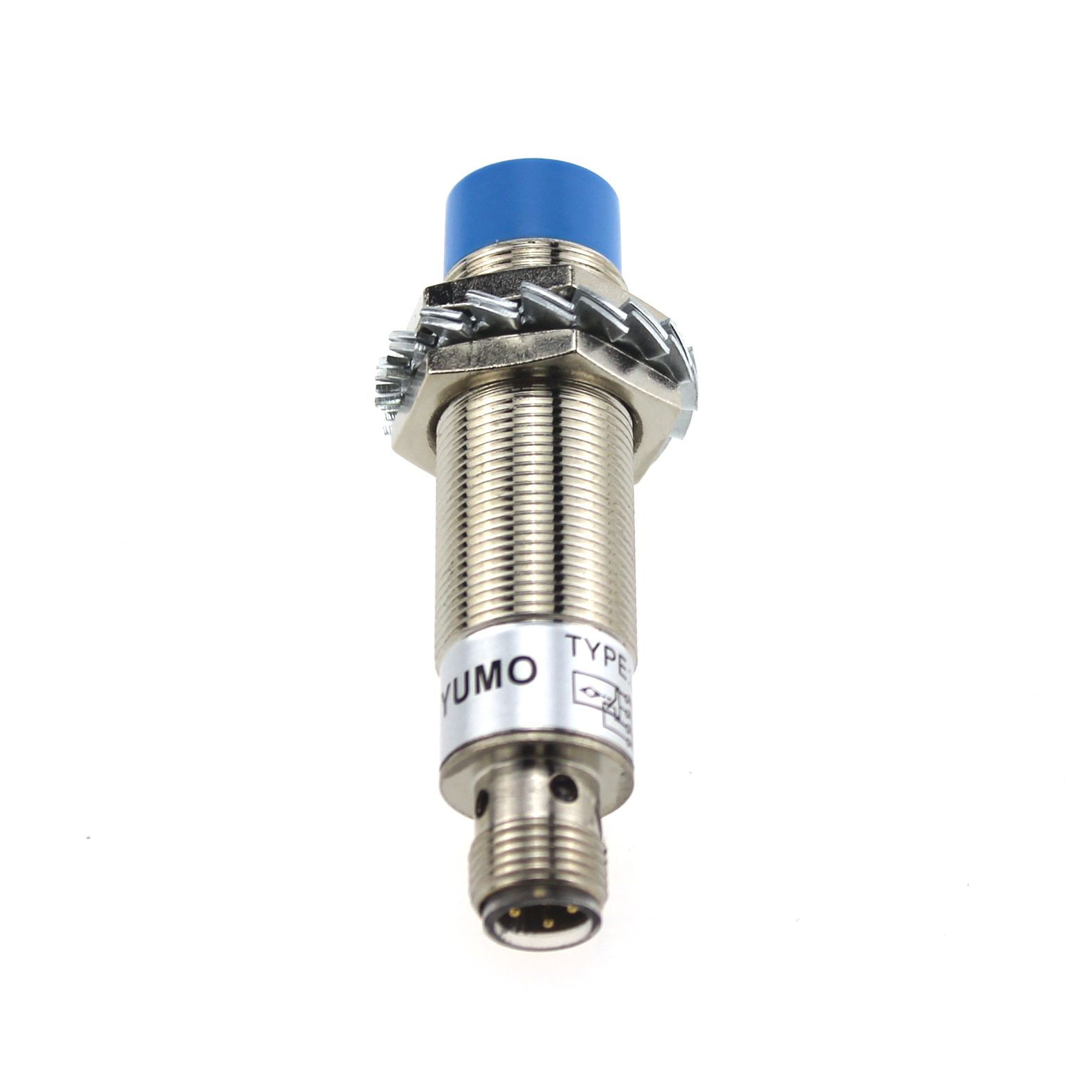

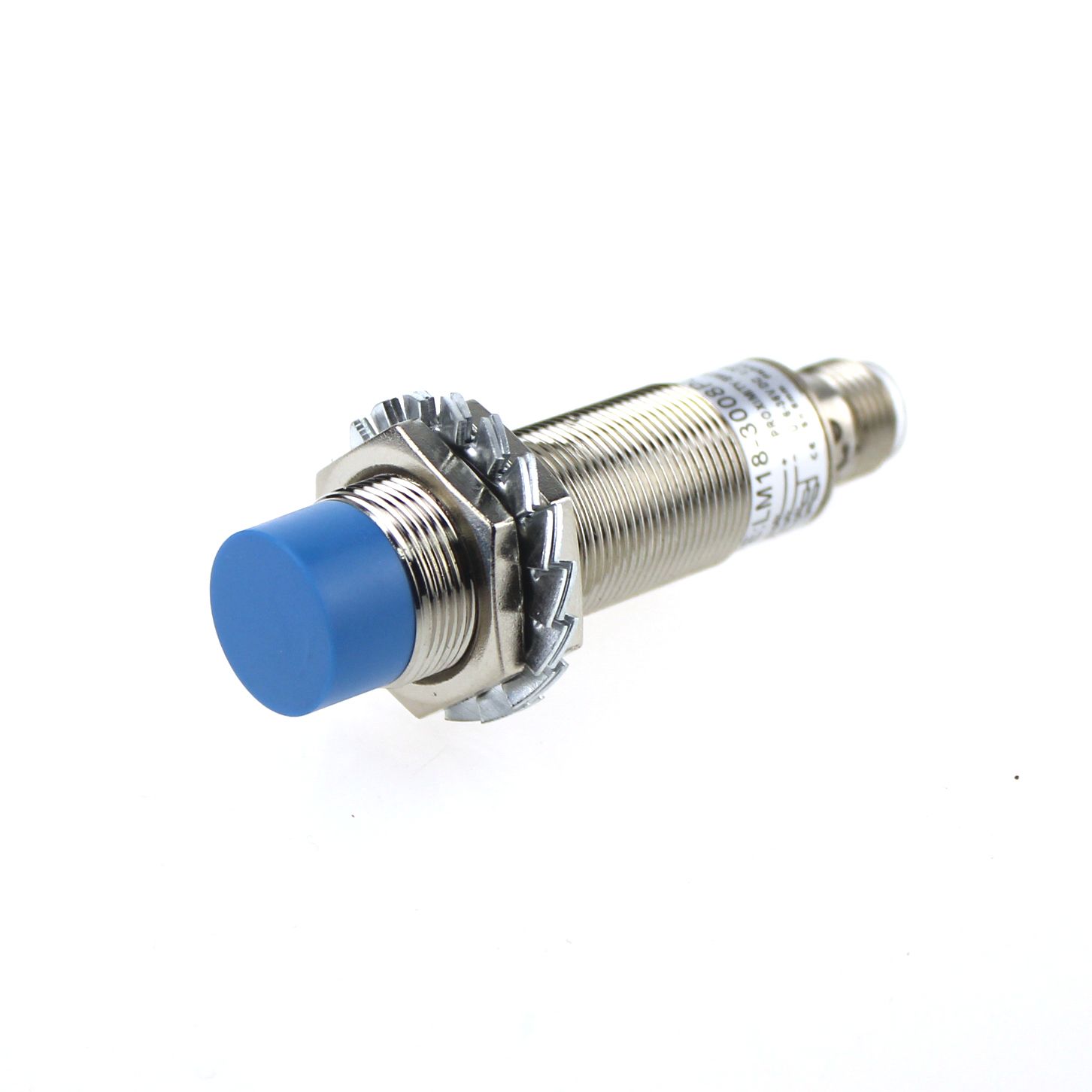

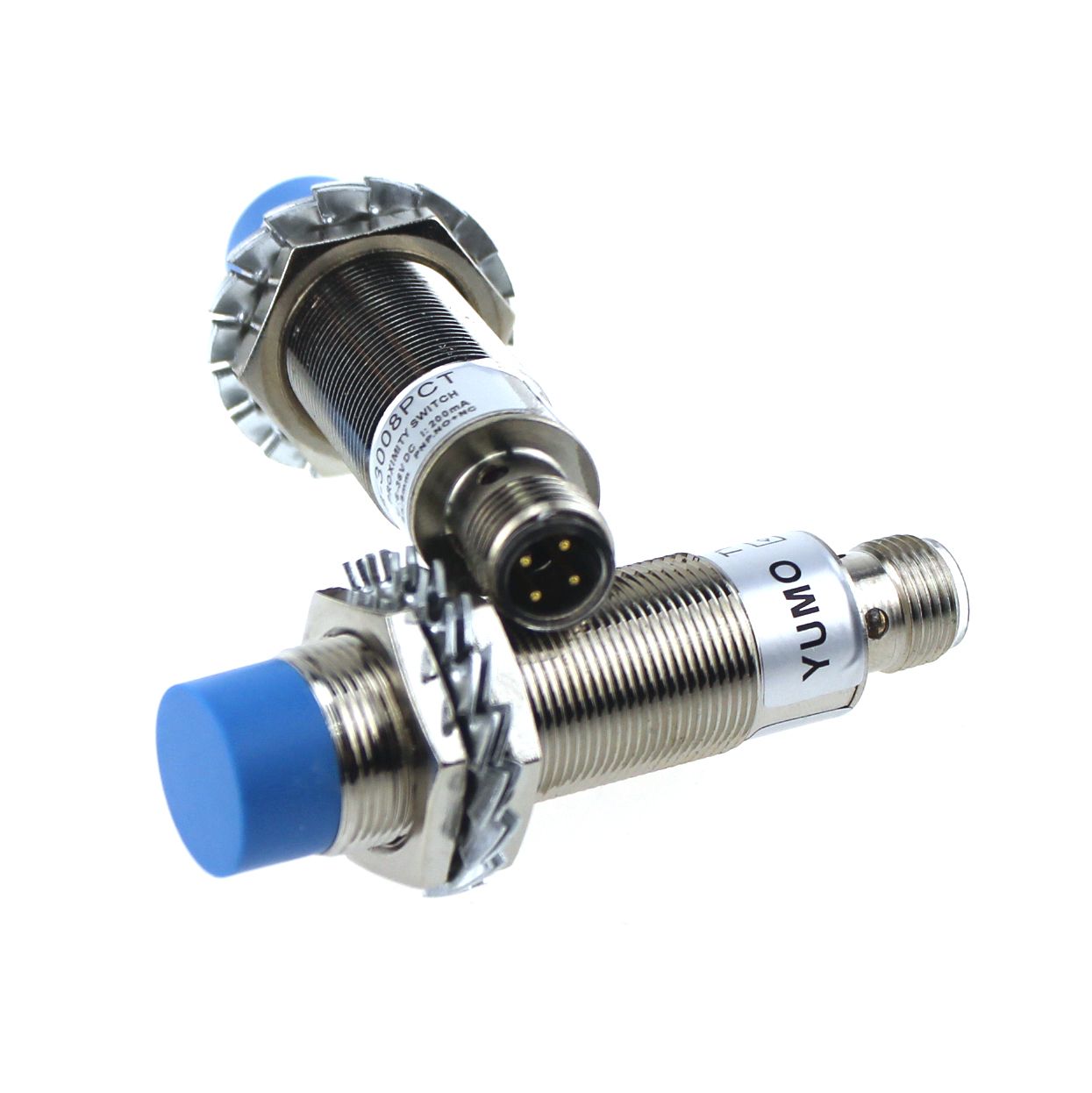

YUMO LM18-3008PCT detecting range 8mm Proximity sensor switch
Specifications
Output current | DC | 200mA |
SCR/relay | 300mA |
Output voltage drop | DC(NPN;PNP) <3V;2wires type:<3.9V;AC type: AC <10VDC< 3V ;AC< 10V |
Consumption current | DC(NPN;PNP) 12V 8mA;24V 15mA; AC type: <10mA |
Standard detected object | 18×18×1(A3 Iron) |
Repeated precision | 0.02 |
Response Frequency | 200Hz/25Hz |
Working environment temperature | -25C ~+75ºC |
Insulation resistance | 50MΩ |
Shell material | Metal |
Protection grade | IP67 |
Alternative model | E2E-X18M* |
