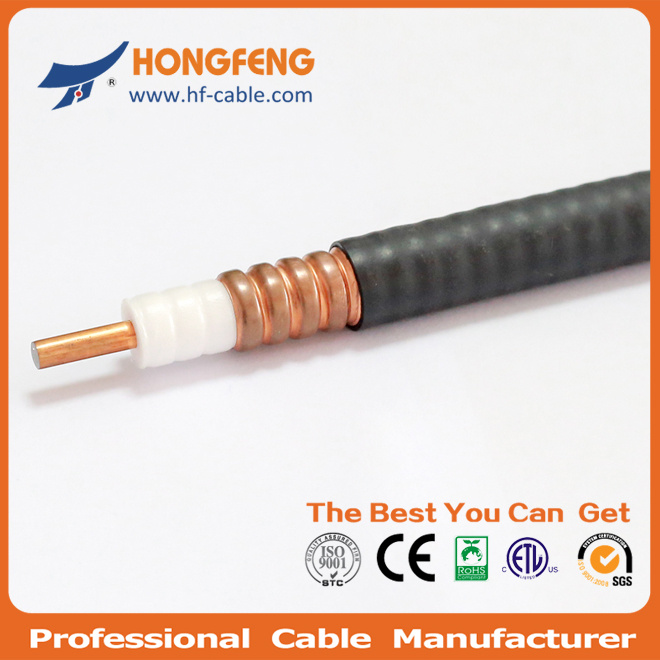

1/2" S (1/2') Super Flex RF Helical Cable

Price:	US $ 0.9/Meter
Trade Terms:	FOB,CFR,EXW
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	1/2' cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	3.55 mm CCA
Insulation:	9.0mm PE
Outer Conductor:	12.1mm Helical Copper Tube
Jacket:	13.6.0mm PE
Impedance:	50 Ohms
Certificates:	ISO9001/CE/RoHS/UL/ETL
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PE
Certification:	RoHS
Model:	Hoccay
Wire Core Material:	Copper Tube
Brand:	Hf/OEM
Type:	RF Cable

Product Description

1. Construction and Properties:

Item	Diameter(mm)	Material
Inner conductor	3.55	Copper clad Aluminum Wire
Insulation	9.0	Foamed polyethylene
Outer conductor	12.1	Helical corrugated copper tube
Jacket	13.6	Polyethylene

2. Attenuation and RATING:

Item	Specification	Remarks
Characteristic impedance	50±1Ω
Velocity	82%
Minimum Insulation resistance	5000MΩ.km	DC 500V
Capacitance	80 pF/m
Dielectric strength	3000V	DC (continuance 1 minute)
Peak power rating	15.6kW
RF peak voltage	1400 V
VSWR typical value	1.15	10M-3000MHz
	1.10	800M-1000MHz
	1.10	1700M-2000MHz
	1.10	2100M-2400MHz

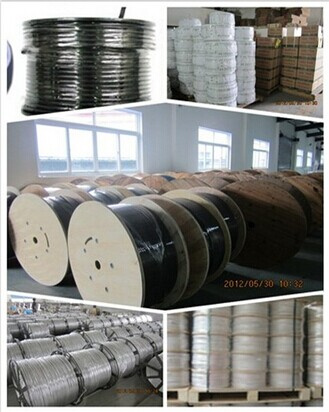

3. Packages:

4. Contact Information

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

http://www.hf-cable.com

http://www.hf-cable.com.cn

Tel: +86-571-5861-5552

Fax: +86-571-6381-6227

Mobile: +86-18268847560

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
