Takfly Communications Co., Ltd. >> 1.25g Sm 60km 1490/1550nm Bidi SFP Transceiver Module with Ddm

1.25g Sm 60km 1490/1550nm Bidi SFP Transceiver Module with Ddm

1.25g Sm 60km 1490/1550nm Bidi SFP Transceiver Module with Ddm
Price: US $ 20-150/Piece
Min Order: 2/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: transceiver module
Speed Rate: 1.25gbps
Wavelength: 1490/1550nm
Connector: Single Sc Connector
Fibe Type: Singlemode
Transmission Distance: 60km
Port: Single Fiber
Delivery Time: Within 5 to 7 Days
Export Market: Global
Usage: Server
Type: Wireless
Support Network: Ethernet
Information Content: Data
Certification: RoHS
Condition: New

Product Description

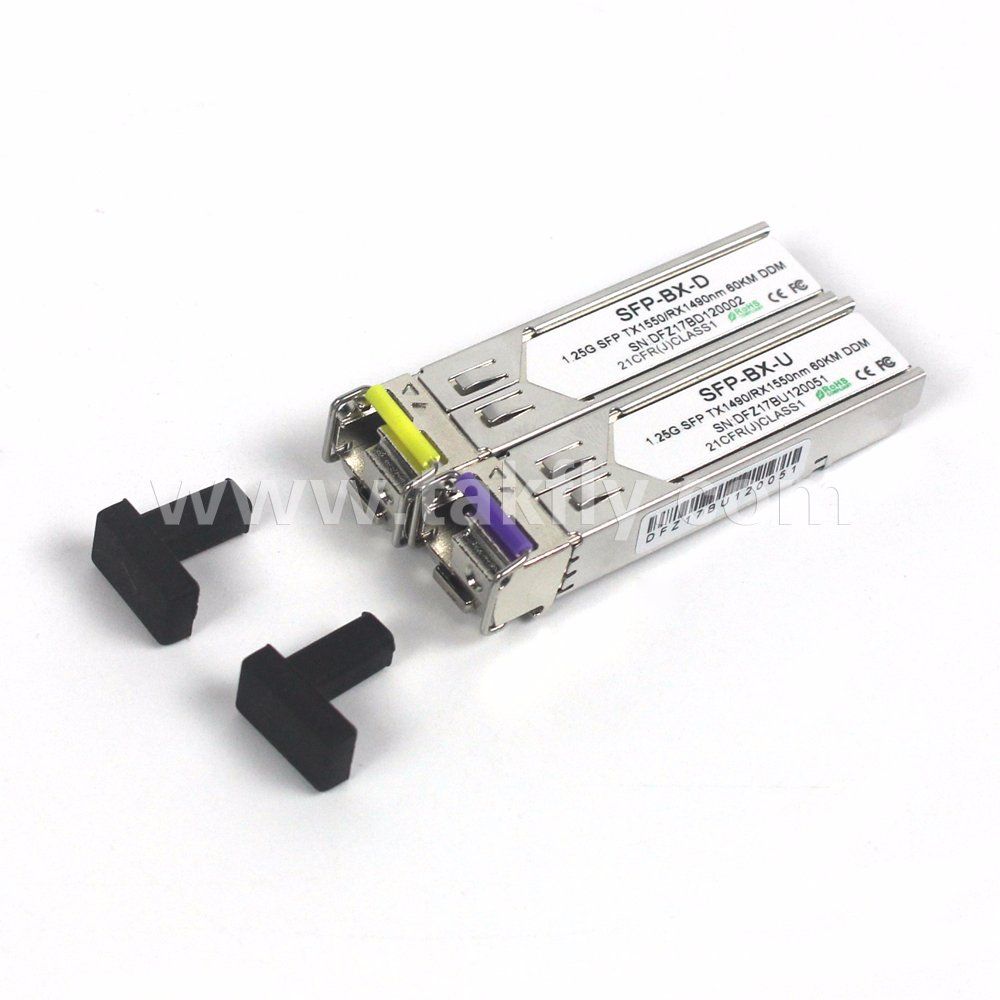

1.25G Singlemode 60KM 1490/1550nm BIDI SFP Transceiver Module with DDM




   The SFP Module are high performance, cost effective modules supporting data-rate of 1.25Gbps and 60km transmission distance with SMF.

Features:

1. Hot-pluggable
2. Single LC/SCreceptacle optical interface compliant
3. Wide distance Supported from 0.5km to 120km
4. Metal Enclosure for Lower EMI
5. Comply with SFP MSA
6. Comply with SDH/SONET
7. Comply with IEEE Std 802.3
8. Single +3.3V Power Supply
9. Monitoring Interface Compliant with SFF-8472
10. Wide Operation Temperature
11. Low Power Dissipation
12. RoHS-6 Compliant

Technical Information:

ParameterRangeUnitAccuracyCalibration
Temperature0 to +70°C±3°CInternal / External
 -20 to +85
Voltage3.0 to 3.6V±3%Internal / External
Bias Current0 to 100mA±10%Internal / External
TX Power0 to +5dBm±3dBInternal / External
RX Power-23 to -3dBm±3dBInternal / External

Application:

Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Our advantage:
1.Excellent quality with good price.
2.Efficient and safe delivery.
3.OEM and custom-made services are available.
4.Life time after-sale services.

Our products cover:
Patch Cords,Pigtail /MPO(MTP)/ Optical Fiber Cable/Optic Terminal Box / ODF,Patch Panels /Optic Splice Closure / SFP Module/ Media Converter / Video Optical transceiver /Connector /Adapter / AttenuatorCoupler / PLC Splitter / CWDM / DWDM / FWDM / OADM etc.
