10A~1600A Double-Power Automatic Transfer Switch
| Price: |
US $ 136.5-2167.2/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
RDQH |
| Customized Design: |
Yes |
| Function: |
Turn Switch |
| Pole: |
3poles,4poles |
| Rated Continuous Current: |
10A~1600A |
| Brand: |
People |
Product Description

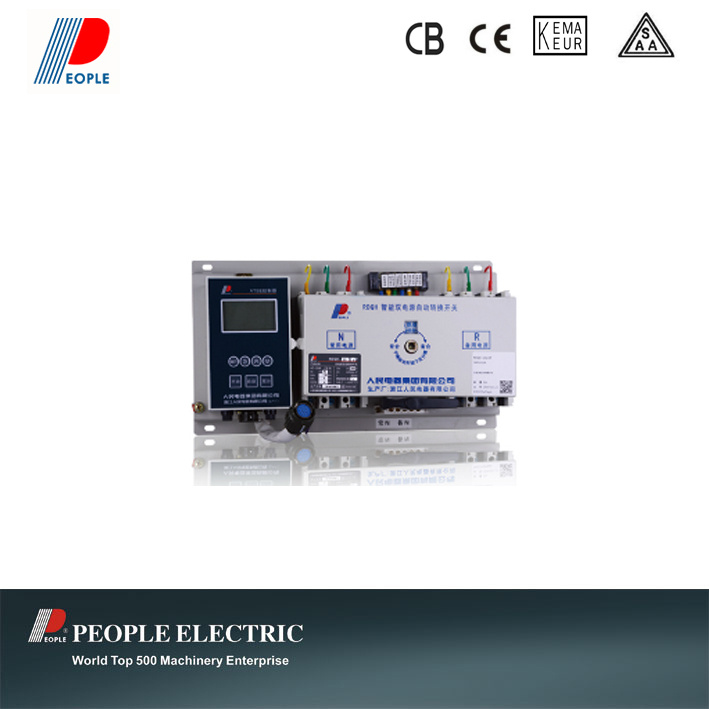

RDQH series double power supply automatic transform switch Summary:It's applied in AC 50Hz, rated working voltage 380V, rated working current 10A~1600A electricity supply system. Can select & switch between two circuits power sources as request. The product owns protection of overload, short-circuit, undervoltage, with fire-control, double-breaking & output making signal functions. Especial suitable for office building, mart, bank, high-rise building, theatre, mining army devices illumination circuits with fire-fighting demand. Normal working & Installment surroundings 1. Altitude below 2000m.2. Gas temperature maximum not exceed +40ºC, 24h average not exceed +35ºC, the minimum not below -5ºC3. Max temperature is +40ºC, gas relative humidity not exceed 50, higher relative humidity allowed at lower temperature, like 20ºC reach to 90,4. Pollution degree: 3; Installment category:III5. Upper wiring terminal connects power source side, lower wiring terminal connects load, the scope to vertical plane not exceed 5°.6. Any directions of external magnetic field around installment places not exceed 5 times of earth magnetic field Specification| ATS type | CB type |
| Usage category | AC-33iB |
| Rated working voltage Ue | AC380V/AC400V |
| Rated working frequency | 50Hz |
| Switch control voltage | AC230V, AC400V |
| Rated isolation voltage Ui | AC690V |
| Mini switching action time | ≤3s |
| Electrical life | <400A | 1500 times | >400A | 1000 times |
| Mechanical life | 4500 times | 3000 times |
Controller function| Model | RDQH double-power smart controller |
| Installment method | Integral type, Spare panel insert type |
| Operation method | Manual, Automatic, double-breaking |
| Monitoring function | Lose-phase, lose-voltage, undervoltage, overvoltage, manual, automatic, double-breaking |
| Switching method | Self-making & recovery, self-making no recovery, Alternate each other, Normal & ready selection |
| Self-function | Fire-control break, Generator starting signal, Tripping alarm. |
| Normal & alternate switching delay | 0~999s can be setted as users request |
| Double-breaking delay | 1~10s can be setted as users request |
| System type set | 1.1#City electricity 2# city electricity 2.1#City electricity 2# Generating electricity
3.1#Generating electricity 2# city electricity. |
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Warmly welcome to visit our factory. Welcome customer or your agent to inspect before order or lading.
