| Prod Model: |
RDQ1 |
| Customized Design: |
Yes |
Product Description

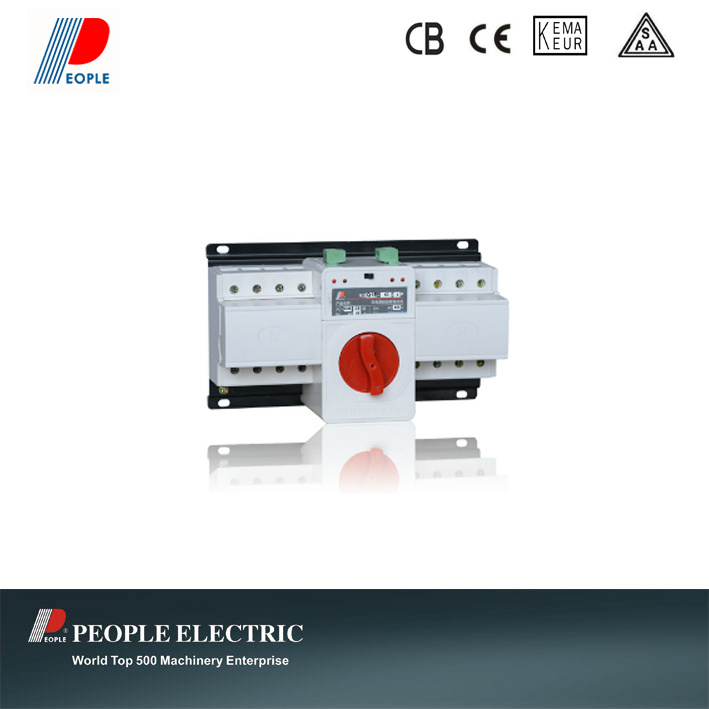

RDQ1 double power automatic transfer switch
Summary
Apply for power supply system AC50Hz, Rated working voltage 400V, rated working current 63A or below. It can select switch-on between two circuits power source as request. The product owns protections of overload, short-circuit, undervoltage, with functions of fire fighting, double-break, output making signal. Suitable for illumination circuit in office buildings, markets, banks, high-rise buildings ect with fire control request.
Normal working & installment surroundings
Installment altitude below 2000m
Gas temperature:Maximum below +40ºC; 24h average not exceed +35ºC. Minimum not below -5ºC.
Humidity: Max temp is +40ºC, gas relative humidity not exceed 50%, higher humidity allowed in lower temperature, like it reaches to 90% at 20ºC,
Pollution class:3; installment type:III
The upper terminal connect power source side, lower terminal connect load side, scope to vertical plane not exceed 5°.
Specification
| ATS type | CB type |
| Usage category | AC-33iB |
| Rated working voltage Ue | AC230V~400V |
| Rated working frequency | 50/60Hz |
| Rated working current Ie(A) | 6,10,16,20,25,32,40,50,63 |
| Switch control voltage | AC230V |
| Rated isolation voltage Ui | AC690V |
| Switching action time | ≤3s |
| Electrical life | 1500 times |
| Mechanical life | 6000 times |
| Rated short-circuit making capacity Icm | 7.5 kA |
| Rated short-circuit breaking capacity Icn | 5 kA |
| Model | Common type | Smart type |
| Installment method | Integral type | Integral type |
| Operation method | Automatic, Manual | Automatic,Manual, Double-breaking |
| Monitoring function | Phase-breaking inspection | Normal power source three-phases,undervoltage, lose-phase, phase-breaking |
| Switching method | Self-making & recovery | Self-making & recovery |
| Fire-fighting interactive control | No | DC12-24V input double-breaking(fire automatic breaking) |
| Indication function | LED lamp | LED lamp |
