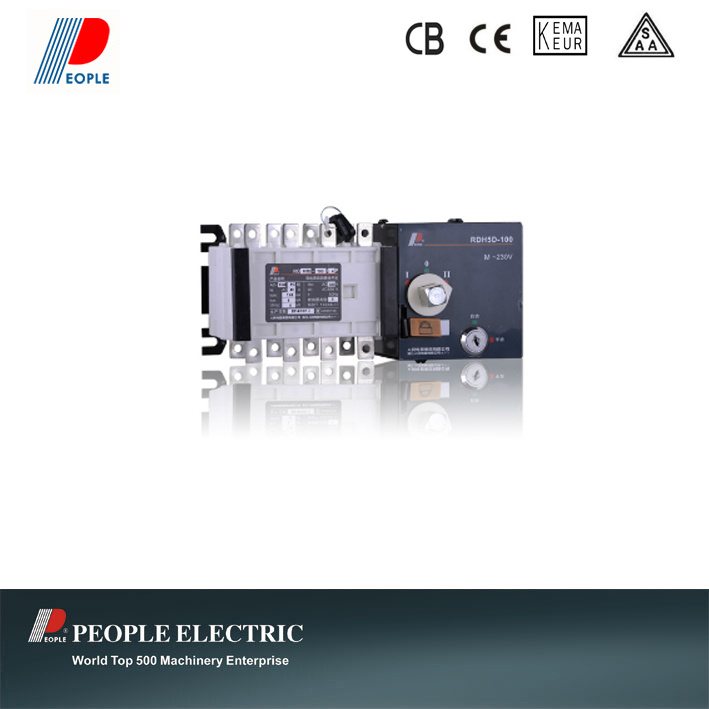

RDH5D double power automatic transfer switch
Summary
Applied in electricity distribution devices AC50Hz, Rated voltage 400V, rated heating current 3200A or below.
Testing, telecommunication interface, electrical interface, electric & mechanism interlock ect functions.
It can realize full-automation, remote control, turn to "0", urgent manual operation. Widely used for automatica switching of Normal & ready power source or automatic switching & safe isolation of two load devices The switch combines with control circuit to creat logic varioujs order to manage motor,motor can take switch main part operation mechanism, instantly breaking & making or switching circuits, Can realize safe isolation via obvious situation.
Normal working & installment surroundings
Installment altitude below 2000m
Gas temperature:Maximum below +40ºC; 24h average not exceed +35ºC. Minimum not below -5ºC.
Humidity: Max temp is +40ºC, gas relative humidity not exceed 50%, higher humidity allowed in lower temperature, like it reaches to 90% at 20ºC,
Pollution class:3; installment type:III
The upper terminal connect power source side, lower terminal connect load side, scope to vertical plane not exceed 5°.
Structure introduction
1. Electric key lock: control switch internal control circuit power source, lock is on, switch can realize full-automation, turn to "0", remote control; lock is off, switch only operate by hand.
2. Operation handle: Must turn the lock to "off" when taking manual operation via handle.
3. Mechanical padlock: For inspection, Using operation handle turns switch to "0" position, pull padlock mechanism and lock, then begin to inspect(pull padlock to cut off switch internal control power source, the switch can't realize automatic or manual function)
4. Indication part: Can indicate switch working situation position(I,0,II)
Specification
The switch comply with IEC60947-6-1 standard, rated working voltage Ue: AC400V, rated isolation voltage: AC690V, rated working current Ie:10A~3200A, control power source voltage: DC24V, AC230V, AC400V.
| Rated heating current(A) | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| Rated impulse withstand voltage(kV) | 5kV | 8kV | 12kV |
| Rated working current(A) | AC-31A | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| AC-35A | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| AC-33iB | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| Rated short-time withstand current | 5kA | 10kA | 13kA | 50kA | 55kA |
| Rated limited short circuit current | 5kA | 100kA | 70kA | 100kA | 120kA | 80kA |
| Control power source voltage | DC 24V, AC 230V, AC 400V |
| Switching time(s) | 0.5 | 1 | 1.1 | 1.2 | 1.25 | 2.45 |
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Warmly welcome to visit our factory. Welcome customer or your agent to inspect before order or lading.
