| Prod Model: |
RDQ6 |
| Customized Design: |
Yes |
| Function: |
Turn Switch |
| Pole: |
3poles,4poles |
| Rated Continuous Current: |
No Exceed 63A |
| Brand: |
People |
Product Description

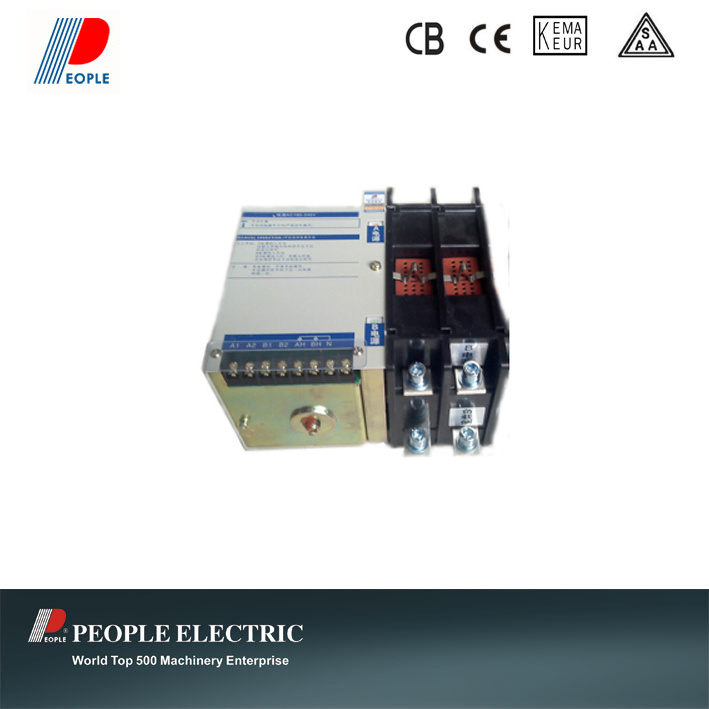

RDQ6 double power automatic transfer switch
Summary
Apply for electricity supply system AC50Hz, Rated working voltage 380V, rated working current 4000A or below. It can select switch-on between two circuits power source as request(Normal, ready power source can be electricity net, automatic generators unit, storage batteries ect). Suitable for important places without allowed like circuit in high-rise buildings,post telecommunication, mining, industry flow-line, hospitals ,arm devices, airports, chemistry, textile, oil ect.
Normal working & installment surroundings
Installment altitude below 2000m
Gas temperature:Maximum below +40ºC; 24h average not exceed +35ºC. Minimum not below -5ºC.
Humidity: Max temp is +40ºC, gas relative humidity not exceed 50%, higher humidity allowed in lower temperature, like it reaches to 90% at 20ºC,
Pollution class:3; installment type:III
The upper terminal connect power source side, lower terminal connect load side, scope to vertical plane not exceed 5°.
Specification
| Model | RDQ6 |
| Usage category | AC-33iB |
| Rated working voltage Ue | AC230V~400V |
| Rated isolation voltage Ui | 400V 690V |
| Rated working frequency | 50/60Hz |
| Rated impulse withstand voltage Uimp | 6kV, 8kV |
| Rated impulse withstand current Ie(kA) | 5, 10, 13, 30, 50 |
| Rated short-time making capacity(kA) | 7.5, 17, 26,50, 80 |
| Switching action time | ≤4s |
| Poles No | 2, 3, voltage |
| Electrical life | 1500 ~ 4500 times |
| Mechanical life | 6000 times |
| Operation cycle | 60s, 120s, 200s |
| Rated short-circuit breaking capacity Icn | 5 kA |
| Model | Common type | Smart type |
| Installment method | Integral type | Integral type |
| Operation method | Automatic, Manual | Automatic,Manual, Double-breaking |
| Monitoring function | Phase-breaking inspection | Normal power source three-phases,undervoltage, lose-phase, phase-breaking |
| Switching method | Self-making & recovery | Self-making & recovery |
| Fire-fighting interactive control | No | DC12-24V input double-breaking(fire automatic breaking) |
| Indication function | LED lamp | LED lamp |
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Warmly welcome to visit our factory. Welcome customer or your agent to inspect before order or lading.
