| Prod Model: |
PN-014 |
| Fiber Connector: |
LC/APC |
| Connector Gender: |
Fixed Female to Female |
| Transfer Mode: |
Singlemode |
| Attenuation: |
1~25dB |
| Return Loss: |
65dB |
| Max Optical Input Power: |
200MW |
| Humidity: |
95%RH |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
ISO9001 |
Product Description

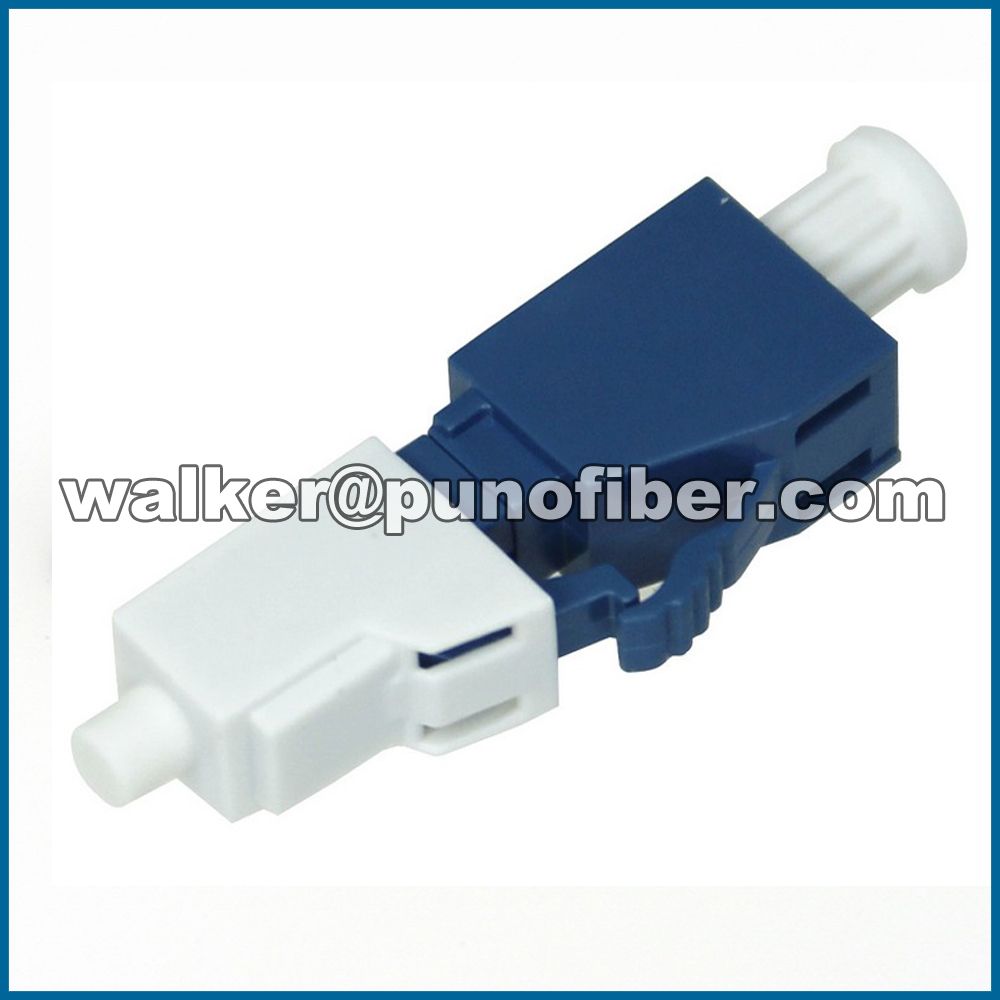

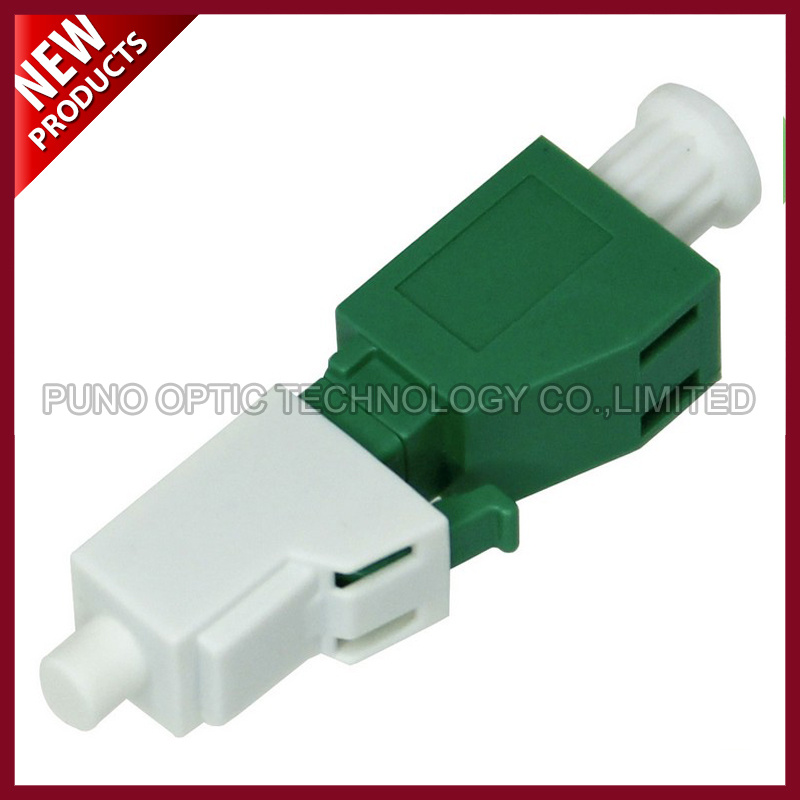

10dB LC APC Flange Fiber Optic Single Mode Female to Female Fixed AttenuatorTechnical Information:The Fiber Optic Attenuator can be used slow up the energy inside a optical signal. Obtainable in 1310nm in order to 1550nm. The actual optical attenuator is really a man in order to woman settings as well as connectorized having a FC, SC/APC, ST, PC, LC, UPC, MU, FC/APC, SC, LC/APC, set worth connect kind fiber optic attenuators, inline fiber optic attenuators, adjustable fiber optic attenuators. Typical attenuation ideals tend to be 5dB, 10dB, 15dB as well as 20 dB however all of us share just about all dimensions through 1dB in order to 25dB.

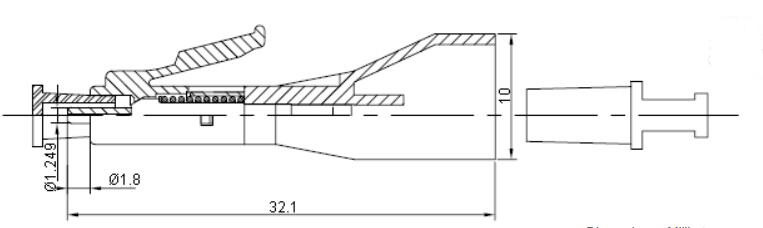

Appearance & Dimension(mm):
Advantage & Application:√ Fully compatible with LC fiber optic connectors;
√ Precise attenuation values;
√ Industry standard attenuation levels;
√ Low PDL and insertion loss;
√ Precision polishing for reduced back reflection;
√ Highly Reliable Physical Contact Connectors;
√ Compartmentalized case provides safe component storage and simple organization;
√ Small, durable case for easy portability;
√ RoHS compliant.
Product Details: | Single-mode | Multi-mode |
| Wavelength(nm) | 1310nm & 1550nm | Wavelength(nm) | 850nm & 1300nm |
| Attenuation Tolerance | 1 to 5dB ≤±0.5dB | Attenuation Tolerance | 1 to 5dB ≤±0.5dB |
| Attenuation Tolerance | 6 to 5dB ≤±10%dB | Attenuation Tolerance | 6 to 5dB ≤±10%dB |
| Return Loss | UPC≥50dB;APC≥60dB | Return Loss | UPC≥30dB |
| Working Temperature(ºC) | -40 to +70 | Working Temperature(ºC) | -40 to +70 |
| Storage Temperature(ºC) | -40 to +85 | Storage Temperature(ºC) | -40 to +85 |
International Authoritative Certification:Compliance with the international ISO9001, CE, FCC, RoHS standards. PUNO strict implementation of standardized management and control of the design, development, production, installation and service.

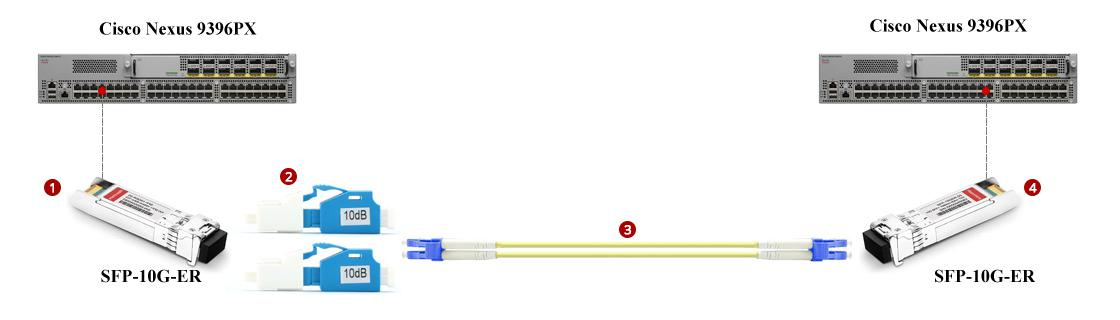

What does an Optical Attenuator do:An optical attenuator is a device commonly used to lower the amount of power of an optical signal in a fiber optic communication system. For a singlemode applications, the most important specification, after the correct loss value, is return loss or reflectance. It's more convenient to test the receiver power before and after attenuation or while adjusting it with your power meter at the receiver, plus any reflectance will be attenuated on its path back to the source. Bellow it shows the attenuator used with duplex fiber patch cable.
Ordering Information - Fixed Optical Attenuator: | Fiber Type | 5-50/125
6-62.5/125
9-9/125
O-OM3 |
| Connector Type | F-FC S-SC T-ST L-LC M-MU |
| Polish Type | P-PC U-UPC A-APC |
| Attenuation | 01-1dB 02-2dB 03-3dB 05-5db 07-7dB
10-10dB 15-15dB 20-20dB 25-25dB |
| Operating Wavelength | 1-850nm 2-1310nm 3-1550nm 4-1310/1550nm
5- 1310/1490nm |
