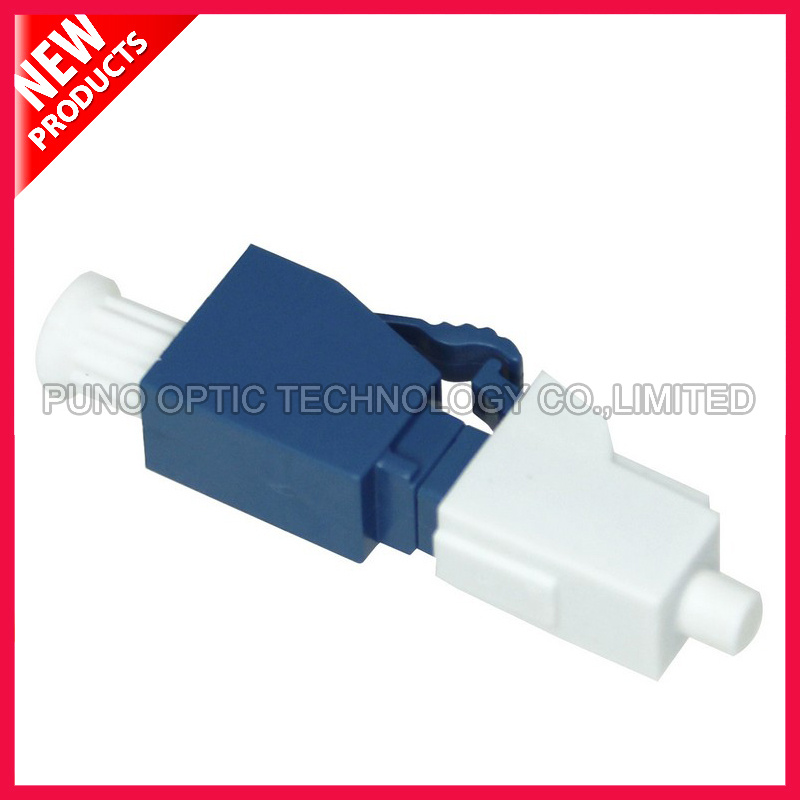

3dB Fiber Optic Simplex Multimode LC Female to Male Attenuator

Name: 3dB Fiber Optic Simplex Multimode LC Female to Male Attenuator
Brand: all-electronics-online.com
SKU: 825509775
Availability: InStock
Rating: 4.4 (91 reviews)

Price:	US $ 0.1-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-552
Color:	Blue&Grey
Return Loss:	> 45dB
Operating Temperature:	-40 ºC ~ + 75 ºC
Storage Temperature:	-40 ºC ~ + 85 ºC
Moudle:	Female to Male
Attenuation:	1, 3, 5, 10, 15, 20, 25 dB
Max Optical Input Power:	200MW
Structure:	LC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Transmission Medium:	siglemode&multimode
Connector Type:	LC

Product Description

3dB Fiber Optic Simplex Multimode LC Female to Male Attenuator

Fixed fiber attenuator is made of standard high precision dust blue. For a variety of fiber optic transmission line, the attenuation of high precision, stable and reliable performance. Performance characteristics are independent of wavelength variations and enable dual functions of adapters and attenuators. Attenuation accuracy, high additional loss, low application optical patch panel fiber network system, low speed optical fiber transmission system. Fixed fiber attenuator by type can be divided into flange and yin and yang type, according to the model can be divided SC, ST, FC, LC and so on.

Features:

√ High return loss
√ Simple structure
√ Maximum load power (1W)
√ Wavelength correlation is small
√ Low polarization dependent loss
√ Compact structure

Application:

√ Light distribution frame
√ Optical fiber network system
√ High - speed optical fiber transmission system
√ Cable television (CATV) system
√ Long distance trunk dense wavelength division multiplexing (DWDM) system
√ Optical add / drop multiplexer (OADM)

specification:

Attenuation	1, 3, 5, 10, 15, 20, 25 dB
Attenuation accuracy	<5dB ± 0.3dB <10dB ± 0.5dB > 10dB ± 10%
Return loss	PC:> 45dB APC:> 60dB
Working wavelength	1310 nm and 1550 nm (SM)
Polarization dependent loss	<0.1dB
Operating temperature	-40 ºC ~ + 75 ºC
Storage temperature	-40 ºC ~ + 85 ºC
Temperature (not encapsulated)	95% RH Complies with Telecordia standard (GR-910-CORE)

Our Services:

√ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience;
√ We accept OEM. The product size and material are customized.Ur own logo and own design are welcome. We will produce according to ur requirment and description;
√ Please send us inquiry for more products info and we will give you feedback in 12 hours.

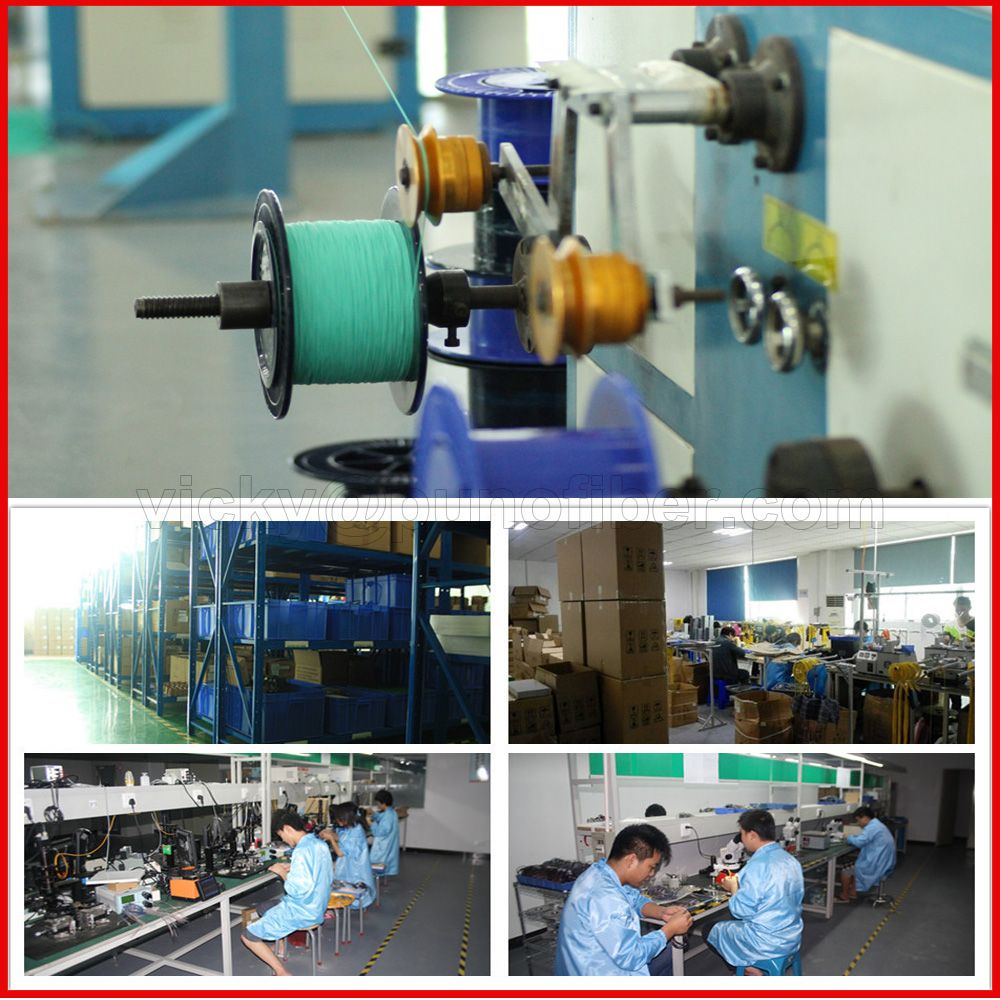

Workshop Overview:
