Singlemode Fiber Fixed Optical ST APC UPC Attenuator

Name: Singlemode Fiber Fixed Optical ST APC UPC Attenuator
Brand: all-electronics-online.com
SKU: 818203455
Availability: InStock
Rating: 4.9 (114 reviews)

Price:	US $ 0.9-2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-015
Wavelength(nm):	1310nm & 1550nm
Attenuation Tolerance:	0.5dB
Fiber Type:	5-50/125 6-62.5/125 9-9/125 O-OM3
Attenuation:	01-1dB 02-2dB 03-3dB 05-5dB 07-7dB
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	ST
Certification:	ISO9001
Sheath Material:	Metal

Product Description

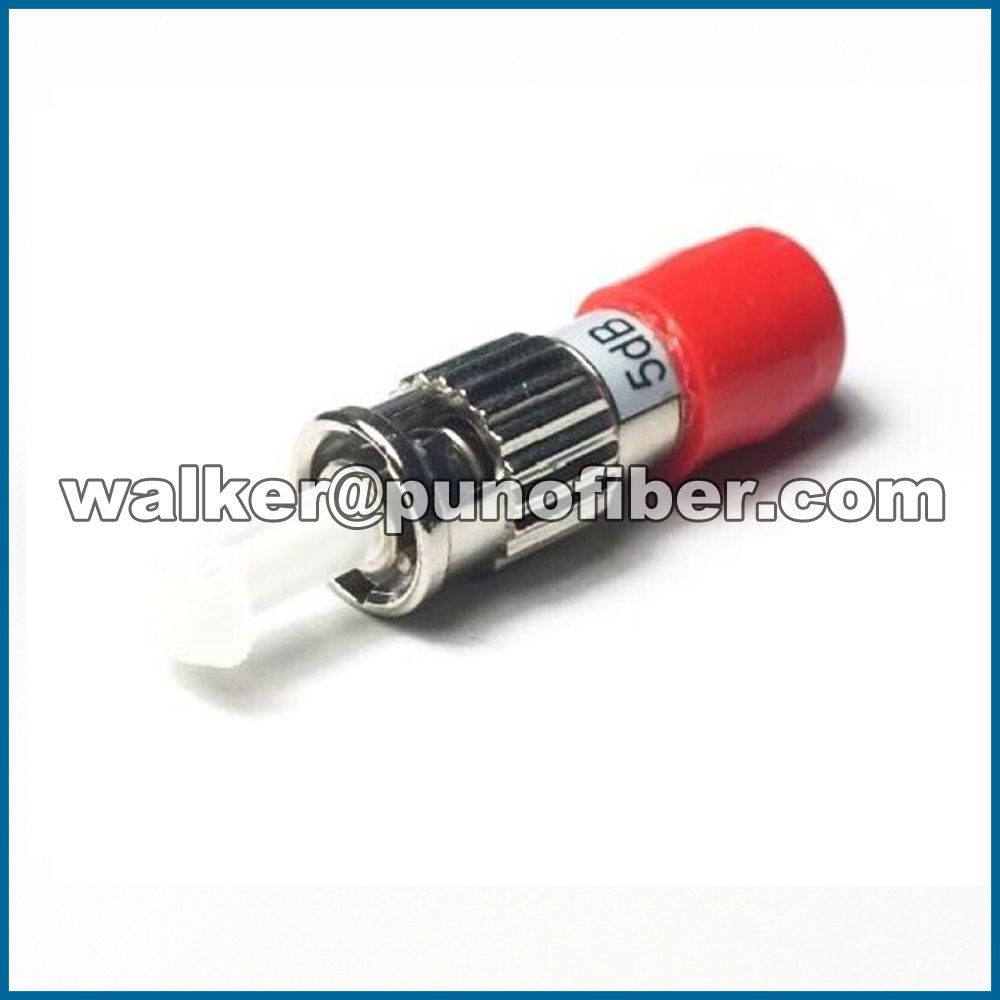

Singlemode Fiber Fixed Optical ST APC UPC Attenuator

Features:

√ Compliant with Bellcore GR-910-CORE/JIS C5920;
√ High quality materials;
√ Precision end-face geometry testing;
√ Precision and stable attenuation values;
√ Ultra low return loss;
√ High density, reliable and efficient packaging.

Applications:

√ Telecommunications;
√ Data transmission;
√ Testing instruments;
√ Fiber optical sensors;
√ Multi-channel;
√ CATV;
√ FTTB/FTTH/FTTD;
√ LAN/WAN;
√ Optical Specification.

Specification:

Attenuation values	1~10 dB / 15dB / 20dB / 25dB /Specified
Polish Type	PC	UPC	APC
Return Loss	50dB	55dB	65dB
Connector Type	FC, SC, ST, LC, MU		FC, SC
Attenuation Accuracy	<±0.5dB for 1-10dB , <±1dB for 11-30dB
WaveLength	850nm, 1310nm 1550nm, 1310nm&1550nm
Bandwidth	±40nm
Operating Temperature	-40ºC~80ºC
Storage Temperature	-55ºC~85ºC
Ferrule Material	Ceramic

More Optical Attenuators We Can Offer:

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
