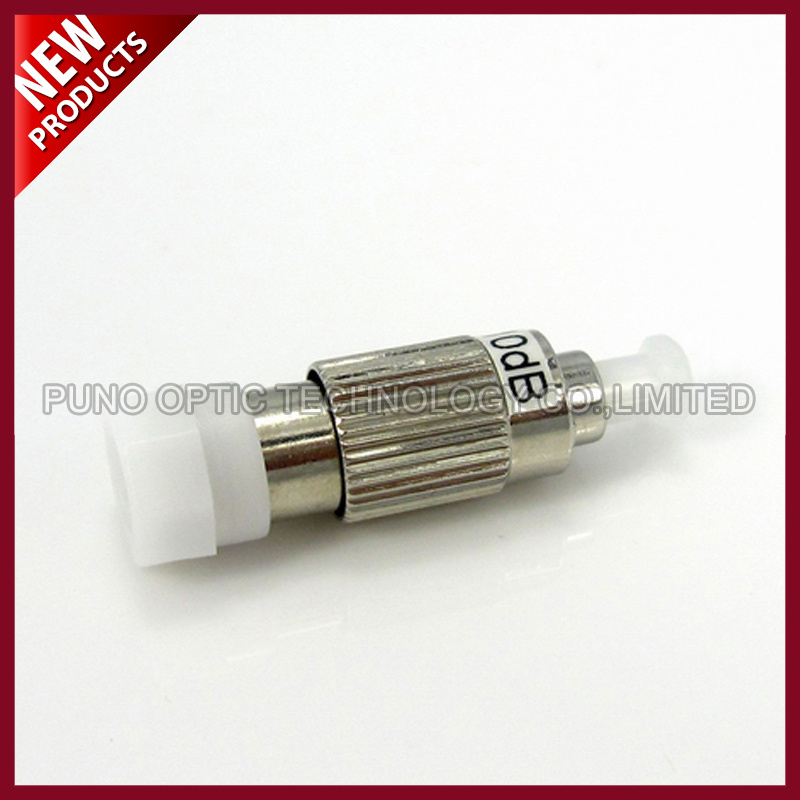

3dB FC UPC Female to Female Single Mode Fixed Flanged Attenuator
Price: |
US $ 0.2-1/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
PN-996 |
Fiber Connector: |
FC/UPC |
Connector Gender: |
Fixed Female to Female |
Transfer Mode: |
Singlemode |
Attenuation: |
1~25dB |
Operating Wavelength(nm): |
1260~1620(SM) |
Transmission Medium: |
Single-Mode |
Structure: |
FC |
Number Of Cores: |
Single-Core |
Ferrule Endface: |
APC |
Product Description
3dB FC UPC Female to Female Single Mode Fixed Flanged AttenuatorProducts Description:
FC/UPC Fixed Optical Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Keyed Characteristics:
√ Fully compatible with FC fiber optic connectors;
√ Precise attenuation values;
√ Industry standard attenuation levels;
√ Low PDL and insertion loss;
√ Precision polishing for reduced back reflection;
√ Highly Reliable Physical Contact Connectors;
√ Compartmentalized case provides safe component storage and simple organization;
√ Small, durable case for easy portability;
√ RoHS compliant.
Items Details: Fiber Connector | FC/UPC | Connector Gender | Fixed Female to Female |
Transfer Mode | Singlemode | Attenuation | 1~25dB |
Operating Wavelength(nm) | 1260~1620(SM) | Attenuation Accuracy | 1-5dB ±0.5, 6-10dB ±0.7, >10dB ±1.0 |
Return loss | ≥ 65dB | Max Optical Input Power | 200mW |
Operating Temp Range | -40ºC~75ºC | Polarization Dependent Loss | ≤ 0.2dB |
Storage Temp Range | -40ºC~80ºC | Humidity | 95%RH |
How to work:
Is done by such means as absorption, reflection, diffusion, scattering, deflection, diffraction, and dispersion, etc; Optical attenuators usually work by absorbing the light, like sunglasses absorb extra light energy. They typically have a working wavelength range in which they absorb the light energy equally;
They should not reflect the light since that could cause unwanted back reflection in the fiber system;
Or by scattering the light such as an air gap; Another type of attenuator utilizes a length of high-loss optical fiber, that operates upon its input optical signal power level in such a way that its output signal power level is less than the input level.
Application:
√ Optical attenuators are commonly used in fiber optic communications, either to test power level margins by temporarily adding a calibrated amount of signal loss;
√ Installed permanently to properly match transmitter and receiver levels;
√ Sharp bends stress optic fibers and can cause losses;
√ Telecommunications;
√ LAN & CATV;
√ Optic Fiber Sensors;
√ Testing Instruments;
√ Fiber to the home;
√ Multi-Channel Subscriber loop;
√ Optical Transmission System.
Payment & Shipping Terms: Minimum Order Quantity | 100 PCS |
Price | Negotiations |
Packaging Details | 1pc/PE Bag, then with carton packaging |
Delivery Time | 3-7 Business Days |
Payment Terms | L/C, T/T, Western Union,Paypal |
Supply Ability | 300,000pcs/Month |
Shipment By | Fedex; DHL; TNT |
Certification | CE/ROHS/ISO9001 |
Model Number | FC Attenuator |

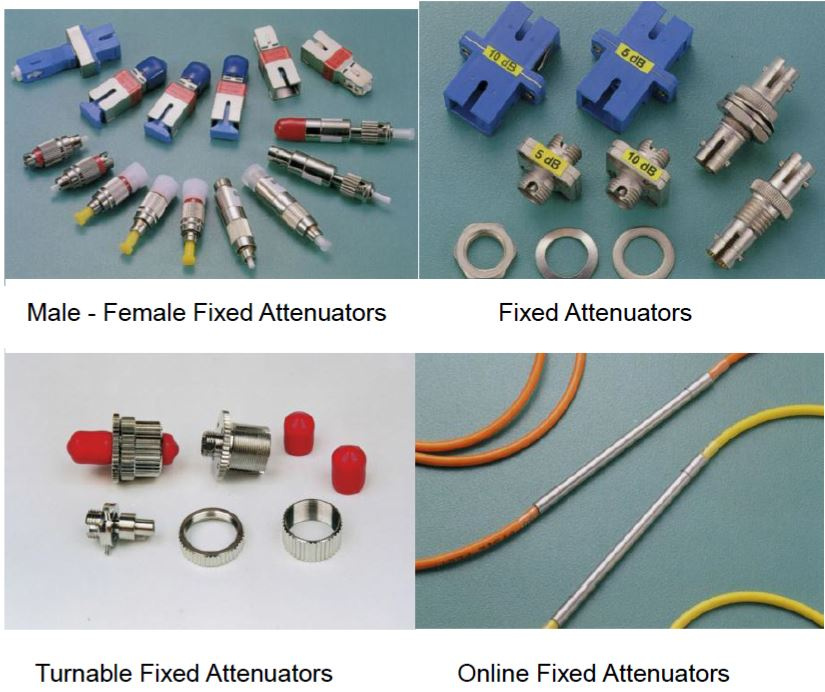

We can provide more related optical attenuators as bellow:
