12 Cores Fiber Optical Singlemode MTP MPO Cable Cassette Modular

Prod Model:	002
Weight:	550g
Connector 1:	MPO MTP
Connector 2:	LC
Fiber Type:	Singlemode
Fiber Count:	12 Cores
Material:	Metal
Polish Type:	APC
Adapter:	MPO MTP; LC
Panel:	Aluminum
Installation:	Plug and Play
Application:	Medicine
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	MPO MTP
Sheath Material:	Metal

Product Description

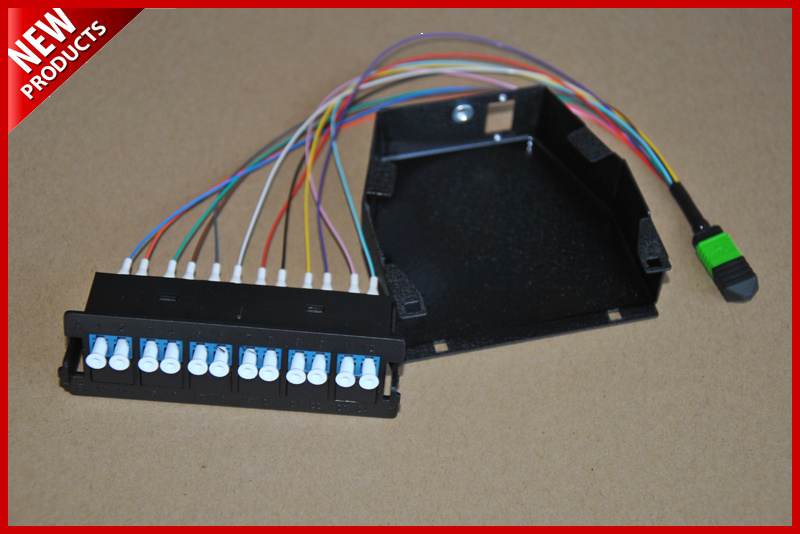

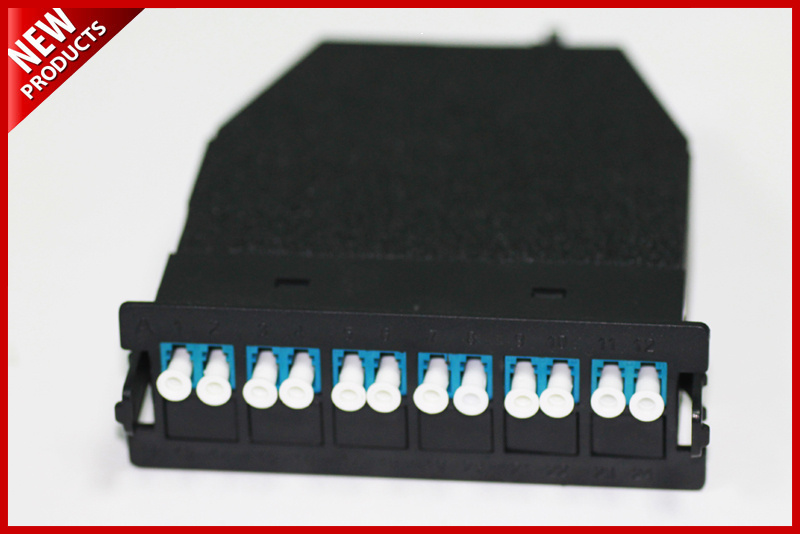

12 Cores Fiber Optical Singlemode MTP MPO Cable Cassette Modular

PUNO's provides a valiety of MPO Cassette modules Fiber Optic Connector for MPO network
components and systems. These MPO Cassette modules Suitable for MPO / MTP application,with 12
and 24 fiber versions - 12 LC (Duplex)/SC (Simplex) optical parts. Our MPO Connector Marketing
Positioning:70% for overseas ICT market; 30% domestic market for supplement.
The Singlemode or Multimode MPO connector are Multifiber connections used in high-density backplane
and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO fiber
cable connector offers up to 12 times the density of standard connectors, providing significant space and
cost savings. MPO fiber connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO fiber cables are packaged in a rugged, compact housing for the highest density available for these applications. MPO Loopbacks standard
products include a female MPO interface 12-fiber with 8-fiber (QSFP) option or 100G, singlemode or
multimode versions. Our compact and rugged housing design provides high stability, reliability, and
repeatability. MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes.It can be mounted in 1U or 2U 19″ multi slot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance
and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

Keyed Characteristics
√ Suitable for MPO/MTP application;
√ High-density and small design;Easy and fast installation;
√ 12 and 24 fiber versions - 12 LC (Duplex) / SC (Simplex) optical parts;
√ Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode (OS1/2) fiber;
√ Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed
quality and performance;
√ Metallic shell with high strength protect the inner fibers effectively;
√ Supports easy reconfiguration for moves, adds, and changes.

Applications
√ Data Centre Infrastructure;
√ Storage Area Network-Fiber Channel;
√ Emerging 40 & 100Gps Protocols.

MTP^® / MPO Connector

Type and Color Code Connectors	Insertion Loss (IL)	Optical Return Loss (RL)	Operating Temperature
Multimode MTP® /MPO Standard Connector	0.35 dB Typical (All Fibers) 0.75 dB Maximum (Single Fiber)1,3	> 45 dB  (0°Flat Polished)2,3	-40ºC to 75ºC
1 IL test according to IEC 61300-3-4; 2 RL test according to IEC 61300-3-6; 3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.
