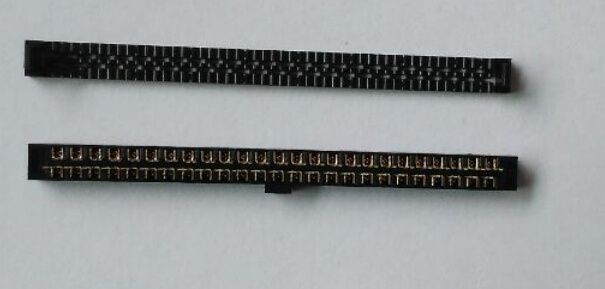

2.0mm IDC Femail Connector Without S/R

Name: 2.0mm IDC Femail Connector Without S/R
Brand: all-electronics-online.com
SKU: 790434545
Availability: InStock
Rating: 4.6 (117 reviews)

Price:	US $ 0.2/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	2.0MM IDC
Application:	Cable
Environmental Protection:	Resistance to Environmental
Connection Mode:	Card Lock Connection
Shape:	Rectangle

Product Description

IDC Connector Socket with Intensive Contact 2.0mm Pitch

Material:

Insulator: PBT, glass reinforced, rated UL 94V-0

Contact: Phosphor bronze

Electrical:

Current rating: 1A

Contact resistance: 30 mΩ Maximum

Insulation resistance: 3, 000 MΩ Minimum

Dielectric withstanding voltage: 500V AC for 1 minute

Operating temperature: -40 to +105 deg. C

Terminated with 1.00mm pitch flat ribbon cable

Number of contacts: 06, 08, 10, 12, 14, 16, 20, 22, 24, 26, 30, 34, 36, 40, 44, 50.

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
