2.4G RF RGB RGBW LED Control

CCT:	Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
Lead Time:	3 Working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Voltage:	3V
Material:	Plastic
Battery Type:	AAA Battery

Product Description

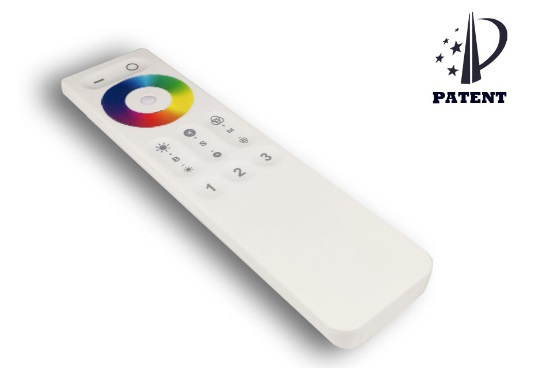

Remote control
1. Touch remote design
2. one remote control 3 zones separately or together.
3. Control distance:20-30 meters.
4. PWM dimming
5. For Led strips / Led Module and other DC5-24V led lights with 5 cables input.
6. Application: Commercial lighting, Fun lighting, Christmas Lighting...

INTRODUCTION                                                                               · This is a 3 zone RF Touch Remote Control, which adopt the most advance PWM control technology, can control all kinds of DC led lights.
Such as led strips light, led module, led source etc.
· It can control 3 zones separately, 30 meters tops control distance.

RGBW REMOTE FUNCTIONS:
1. Static colors: 1.6 MillionColors + White color

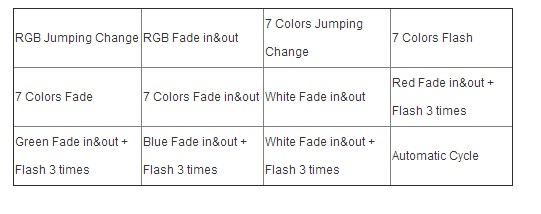

2. Dynamic modes:

3. Brightness: 1-100(in static color)
4. Speed: 16 levels(in dynamic modes)
5. One remote can control 3 zones led receivers and lights seperately or together.

CONTROL METHOD:
1. This RF Remote can adjust brightness/color infinitely, its control mode is wireless control. You could adjust light to the appropriate lighting
brightness or color in accordance with your actual need.
2. lINK & UNLINK
· Link: Long press any number(1,2,3) button of the 3 zones immediately once you switch the light. The link is done once the light blink 3 times.
· Unlink: Long press the number(1,2,3) button of the linked zone immediately once you switch on the light. The unlink is done once the light
blinks 9 times.
3. USING
a. Link the device to remote before using it.
b. Control before click the Zone number(Master ON or Zone1,2,3), be sure in lighting situation.
4. TIPS
a. Long Press and hold 2 seconds Master ON or Zone1,2,3 for 100% brightness white color.
b. Long Press and hold 2 seconds Master OFF for 10% brightness white color.

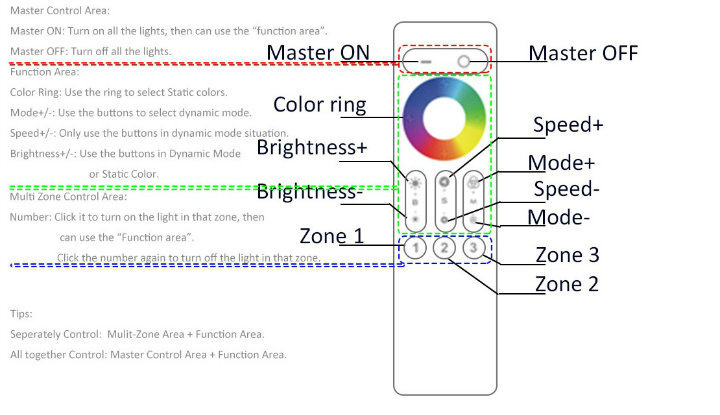

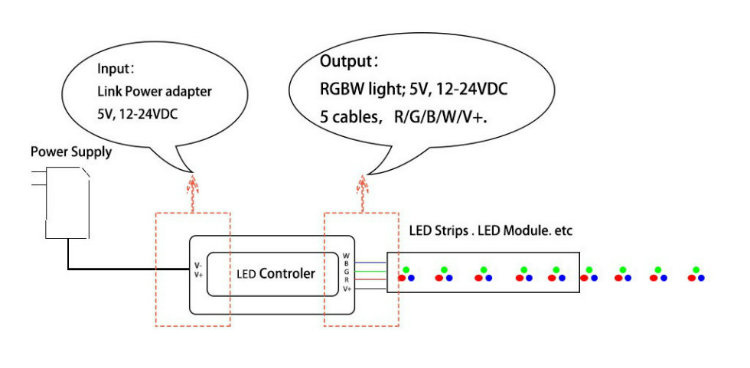

BUTTONS AS BELOW                                                                                                                       DIAGRAM & INSTALLATION                                                                                                                         Link instructions:

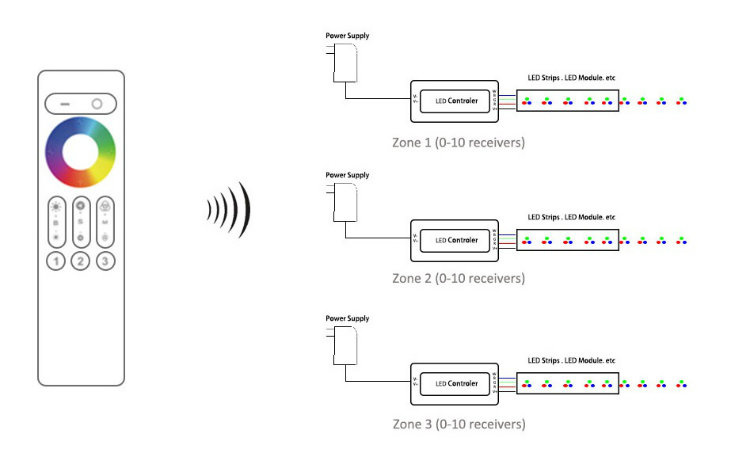

 APPLICATION DIAGRAM

APPLICATION IN LIGHTING
CAUTIONS
1. This products Input voltage is DC12-24V,other input voltage are not allowed.
2. Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.
Overload are prohibited                                                                                                                                                                                        SPECIFICATION                                                                                 · Working temperature:-20~55ºC
· Battery: AAA*2pcs
· Radio Frequency: 2.4G
· Control distance: 30 meters
