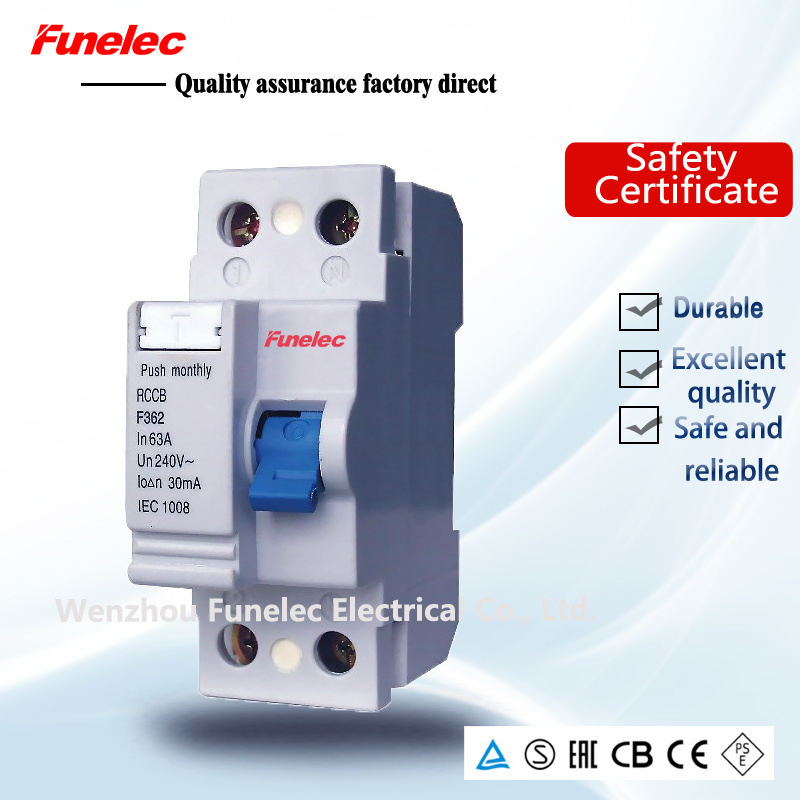

2p Residual Current Circuit Breaker RCCB/ELCB/RCD

Prod Model:	F362
Standard:	IEC61008-1
Rated Working Voltage:	240/415V
Rated Working Current:	25;40;50;63A
Customized Design:	Yes
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CCC
Structure:	RCCB
Poles Number:	2p,4p

Product Description

Product Description

Application
F362, F364, FUNELEC The Residual Current operated Circuit-Breakers ( RCCBs ) of the AC type adapted to domestic, public, and industrial fields are used in the distribution systems TT, TN, and IT, in accordance with the rules and regulations in force. The RCCBs together with the earthing system are therefore used to protect people in case of indirect contacts. These devices characterized by a rated residual differential current of 30mA also assure an additional protection in case of direct contacts. In addition to the function of protection against direct or indirect contacts, the residual current operated circuit breakers ( RCCBs ) incorporate a protective function against the danger of fire in the event of insulation breakdown.
Compliance with standards of IEC 1008: 1990; BS4293

Technical Data
Rated current ( A ) 16, 25, 40, 60, 80
Rated voltage ( V ) 230/400
Poles 2P, 4P
Rated residual fault currents 30, 100, 300, 500mA
Rated residual non-operating current In: 15mA, 50mA, 150mA, 250mA
Tripping time:
Notes: F362/F364 has two types, one is electronic and the other type is electromagnetic.

Packaging & Shinpping:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
4.Shipment port:SHANGHAI/NINGBO
5.By Air or by Sea for batch goods,Airport/ Port receiving;
6.Customers specifying freight forwarders or negotiable shipping methods!
