Product Description

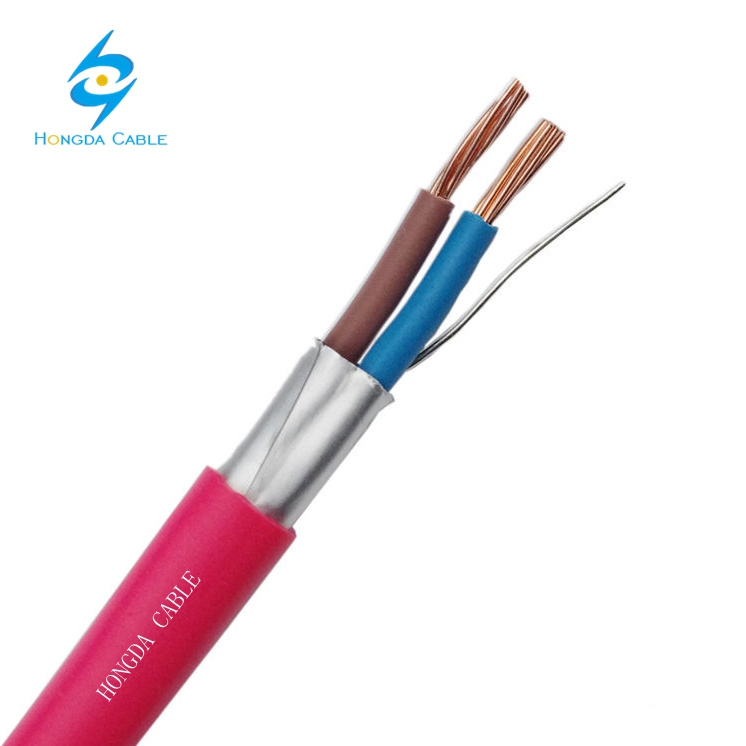

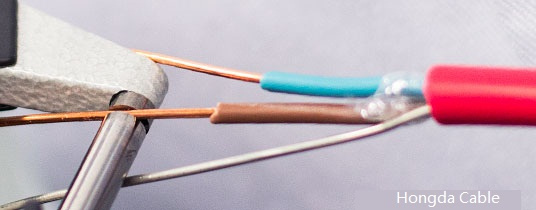

2x1.5mm Silicone Insulation Fire Warning Fire Resistant PH30 & PH120 Cable
FIRE RESISTANT CABLE PH30 & PH120
Fire Resistant cable with Halogen free compounds is mainly used for installation of fire alarm and emergency evacuation systems, where long term electrical circuits are required under fire conditions, and to prevent loss of life and property eg. in industrial complexes, power stations, communal establishments, hotels, airports, underground railway networks, hospitals and outpatient clinics, department stores, data processing centres, theatres, cinemas, in multi-storey buildings, public gatherings, schools, etc. mining works, offshore plants, leading centres, traffic communication, emergency power supply and alarm systems.
Suitable for fixed installation in dry and moist rooms, in, above, on and beneath plaster as well as in masonry walls and in concrete.
These cables are suitable for outdoor and underground applications when installed in conduits or tubes. When installed in conduit, all precautions must be taken that no accumulation of water can occur in the pipes.
Supplied in 500 metre rolls.
SPECIFICATIONS
1. Flame retardant, fire rated security and fire warning cable
2. Conforms to BS EN 50200 and tested to BS6387
3. Voltage rating U / U 300 / 500 V
4. Cable Construction Twisted 2C x 1.0 Sq.mm + E
5. Conductor Resistance 18.1 Ω / km
6. Outer Diameter PH30 - 7.8 mm PH120 - 9 mm
7. Operating temperature -15 °C to 70 °C
FEATURES
1. Versatile use for RS485 communication, Addressable system and Conventional system wiring
2. Tested to IEC 60332-1, Cat CWZ TO BS:6387, BS EN 50200
3. No short circuit under a direct flame of up to 850 °C for the duration equivalent to the rating
4. PH30 Functionality assures the functional performance of emergency systems up to 30 minutes
5. PH120 Functionality assures the functional performance of emergency systems up to 120 minutes

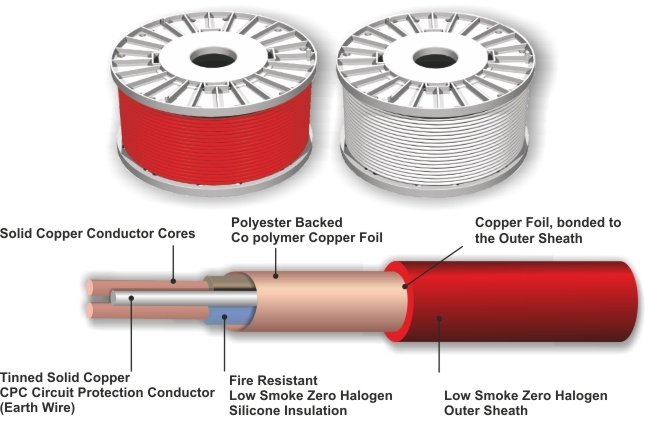

6. Class 2 stranded copper conductor
7. Core wrapping with special mica impregnated glass fibre tape ƒ Red outer jacket
8. Screening with alu-laminated polyester tape and stranded tinned copper drain wire
| ELECTRICAL DATA (AT20OC) |
Minimum
Bend Radius | Min.
Insulation
resistance | Max.Working
Temperature | Test voltage
(rms value) | Max.
Operating
voltage
peak value |
| | MΩ/km | ºC | V | V |
| 8×Diameter | 300 | -40ºC~+90ºC | 1000 | 300/500 |
| TYPES AND MECHANICAL DATA |
Types
sqmm (mm2) | Conductor | Insulation | Shielded1/
Drain Wire /
Shielded2 | Level of
twisting | Jacket
Matterial | OD of
Jacket (mm) |
| 2×1.0 | BC Class 1,5 | Rubber | Fiber Tape/AL-Foil | TC | FR-LSZH | 7.00±0.20 |
| 4×1.0 | BC Class 1,5 | Rubber | Fiber Tape/AL-Foil | TC | FR-LSZH | 8.00±0.20 |
| 2×1.5 | BC Class 1,5 | Rubber | Fiber Tape/AL-Foil | TC | FR-LSZH | 7.50±0.20 |
| 4×1.5 | BC Class 1,5 | Rubber | Fiber Tape/AL-Foil | TC | FR-LSZH | 8.60±0.20 |
| 2×2.5 | BC Class 1,5 | Rubber | Fiber Tape/AL-Foil | TC | FR-LSZH | 8.50±0.20 |
| 4×2.5 | BC Class 1,5 | Rubber | Fiber Tape/AL-Foil | TC | FR-LSZH | 10.0±0.20 |
| 2×4.0 | BC Class 5 | Rubber | Fiber Tape/AL-Foil | TC | FR-LSZH | 9.80±0.20 |
| 4×4.0 | BC Class 5 | Rubber | Fiber Tape/AL-Foil | TC | FR-LSZH | 11.70±0.20 |
| | | | | | | |
| *Notes | Class Types: | Class1: Solid / Class 5: Flexible |
| | FR-LSZH: | LSZH thermoplastic material Type LTS3 to BS 7656-6.1 |
| | Silicone Rubber: | High performance silicone rubber EI2 to BS EN 50363-1 |
| TECHNICAL DATA |
Types
sqmm (mm2) | Max.Resistance
of Cond.at 20ºC | Current Carrying
Capacity(Amperes) | Nominal
Capacitance
(pF/m) |
| | Class 1,2 | Class 5 | Clipped | In Conduit | Core | Screen |
| 1.00 | 18.10 Ω/km | 19.50 Ω/km | 19 | 17 | 100 | 170 |
| 1.50 | 12.10 Ω/km | 13.30 Ω/km | 24 | 22 | 110 | 190 |
| 2.50 | 7.41 Ω/km | 7.98 Ω/km | 33 | 30 | 130 | 220 |
| 4.00 | 4.61 Ω/km | 4.95 Ω/km | 45 | 40 | 160 | 270 |
| | | | | | | |
| Order Informations: |
| Marking | HONGDA CABLE PH120 SR 114E Enhanced Cable N*NNmm2 XXX M |
| Package | 500M/Wooden Spool, 1 Spool/Carton |
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-15838290725 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
