Product Description
LSZH Sheath Mica Tape Fire Resistant electric Cable 0.75mm 2.5mm
APPLICATION
This cable is used in fire extinguishing systems, sprinklers, control panels, and exit lights in high-rise buildings, hotels, hospitals,sub-ways,and public acilities.
STANDARDS
- Basic design to BS 7211 IEC60227
FIRE PERFORMANCE
| Circuit Integrity | IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1) |
| System circuit integrity | DIN 4102-12, E30 depending on lay system |
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*;DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires &cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
450/750V & 600/1000V
CABLE CONSTRUCTION
| Conductor | Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 |
| Fire Barrier | Mica glass tape |
| Insulation | Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
COLOUR CODE
Insulation Colour: Black (other colors upon request)
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) | -30°C - +90°C |
| Temperature range during installation (mobile state) | -20°C - +50°C |
| Minimum bending radius | 6 x Overall Diameter |
ELECTRICAL PROPERTIES
| Dielectric test | 600/1000V: 3500 V r.m.s. x 5'(core/core); 450/750V: 2500 V r.m.s. x 5'(core/core) |
| Insulation resistance | 20 MΩ x km (at 20°C) |
| Short circuit temperature | 250°C |
CONSTRUCTION PARAMETERS
| Conductor | FFX100 07mZ1-R | FFX100 1mZ1-R |
|---|
| Nominal Cross Section Area | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Overall Diameter | Approx. Weight | Nominal Insulation Thickness | Nominal Overall Diameter | Approx. Weight |
|---|
| mm2 | No./mm | mm | mm | kg/km | mm | mm | kg/km |
|---|
| 1.5 | 7/0.53 | 0.7 | 3.5 | 25 | 0.8 | 3.8 | 30 |
| 2.5 | 7/0.67 | 0.8 | 4.1 | 35 | 0.8 | 4.2 | 40 |
| 4 | 7/0.85 | 0.8 | 4.6 | 52 | 1 | 5.3 | 70 |
| 6 | 7/1.04 | 0.8 | 5.2 | 72 | 1 | 6 | 96 |
| 10 | 7/1.35 | 1 | 6.5 | 120 | 1 | 6.6 | 130 |
| 16 | 7/1.70 | 1 | 7.6 | 180 | 1 | 7.7 | 200 |
| 25 | 7/2.14 | 1.2 | 9 | 275 | 1.2 | 9.1 | 290 |
| 35 | 7/2.52 | 1.2 | 10.2 | 370 | 1.2 | 10.3 | 390 |
| 50 | 19/2.52 | 1.4 | 11.8 | 500 | 1.4 | 11.9 | 520 |
| 70 | 19/2.14 | 1.4 | 13.4 | 700 | 1.4 | 13.5 | 730 |
| 95 | 19.2.52 | 1.6 | 15.8 | 980 | 1.6 | 15.9 | 990 |
| 150 | 37/2.52 | 1.8 | 18.8 | 1500 | 1.8 | 18.9 | 1520 |
| 185 | 37/2.52 | 2 | 21 | 1900 | 2 | 21.2 | 1900 |
| 240 | 37/2.52 | 2.2 | 25.7 | 2500 | 2.2 | 25.8 | 2550 |
| 300 | 37/2.52 | 2.4 | 28.6 | 3140 | 2.4 | 28.8 | 3150 |
| 400 | 61/2.85 | 2.6 | 32 | 4000 | 2.6 | 32.2 | 4000 |
| 500 | 61/3.20 | 2.8 | 35.5 | 5000 | 2.8 | 35.7 | 5000 |
| 630 | 127/2.52 | 2.8 | 39.5 | 6300 | 2.8 | 39.7 | 6360 |

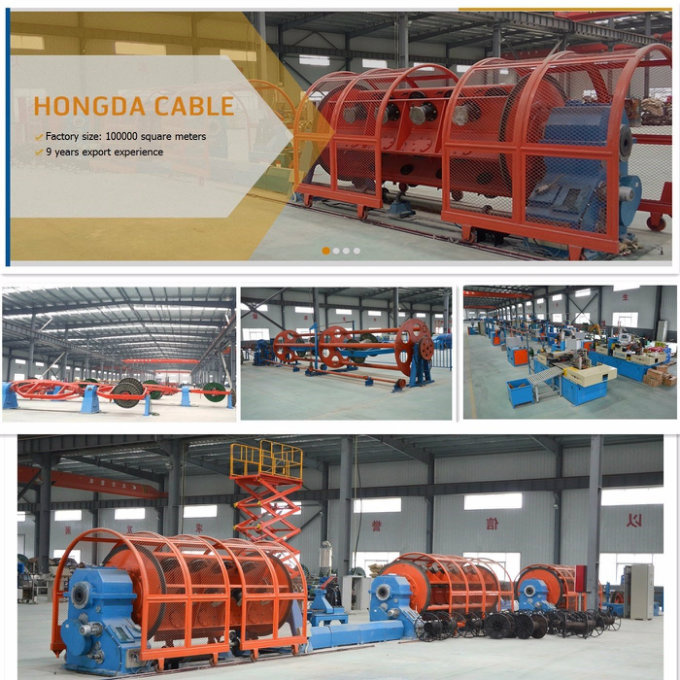

Factory information:Hongda cable Co., Ltd. is one of the most professional cable & wire producer, which was founded in 1988, have exported for 9 years, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co., The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead Cable, AAC, AAAC, ACSR, ACAR bare conductor, Concentric Cable, etc
