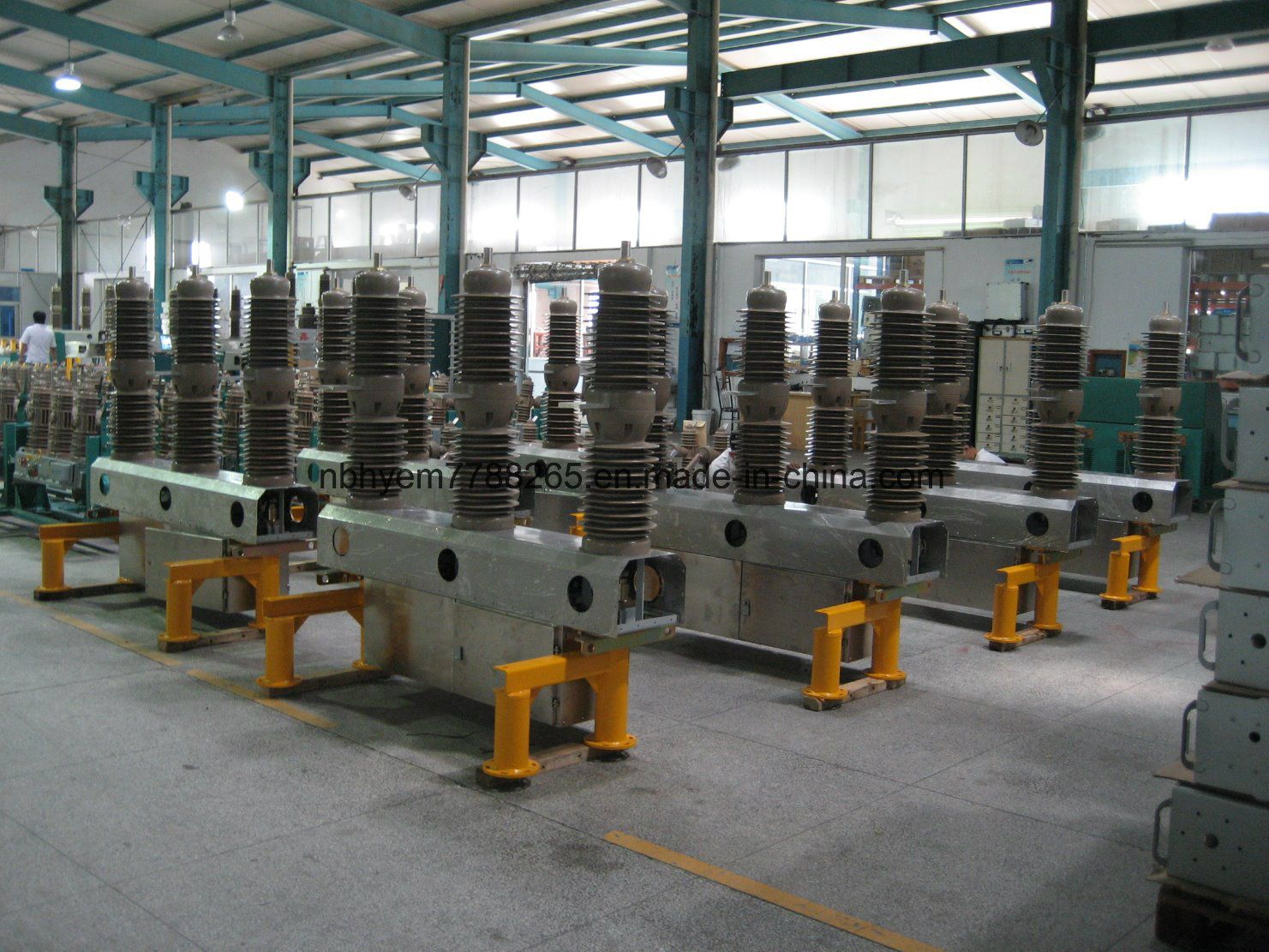

38kv 1250A Recloser with Bil200kv with Sealevel 4500m
| Price: |
US $ 100000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
CHZ4 |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Certification: |
ISO9001-2000 |
Product Description
| SPECIFICATION OF RECLOSERS 22,9 Kv |
| Nº | DESCRIPTION | UNIT | REQUIRED | GUARANTEED |
| 1 | GENERAL DATA | | | | | |
| 1.1 | MANUFACTURER | | | INDICATE | | HEMG |
| 1.2 | MODEL | | | INDICATE | | CHZ4 |
| 1.3 | COUNTRY | | | INDICATE | | CHINA |
| 1.4 | STANDARD OF MANUFACTURE AND TESTS | | ANSI / IEEE 37,60 | | ANSI/IEEE37.80 |
| 1.5 | MOUNTING | | Outdoor | | Outdoor |
| 1.6 | SYSTEM | | Threephase | | Threephase |
| 1.8 | ALTITUDE | mosl | | 3400 | | 3500 |
| 1.9 | Temperature of operation | ºC | -10 a 40 | | -10 a 40 |
| 2 | CARACTERISTICAS DEL RECONECTADOR: | | | | | |
| 2.1 | Frequency | Hz | 60 | | 60 |
| 2.2 | Nominal Current | A | 600 | | 600 |
| 2.3 | Nominal Symmetric Interruption Current (3 Sec) | kA | 16 | | 16 |
| 2.4 | Nominal Voltage of the system | kV | 22.9 | | 22.9 |
| 2.5 | Voltage max of service | kV | 24 | | 24 |
| 2.6 | Voltage of the Equipment | kV | 28 | | 28 |
| 2.7 | BIL 1,2/50 us | kVp | | 200 | | 200 |
| 2.8 | Withstand voltaje industrial frequency. 1 minute.Dry | kVef | | 95 | | 95 |
| 2.9 | Withstand voltaje industrial frequency, 10 sec . Wet | kVef | | 60 | | 60 |
| 2.1 | Arc interruption way | | Vacuum | | Vacuum |
| 2.1 | Insulation type of arc interruption way. | | Solid Dieléctric or resyn HCEP | | Solid Dielectric |
| 2.1 | Current transformer , for protection | | 125-250/1A,15VA, 5P20 | | 125-250/1ª,15va,5p20 |
| 2.1 | Current transformer , for measure | | 125-250/1A,15VA, cl 0,2 | | 125-250/1ª,15va,cl0.2 |
| 2.1 | Six capacitive voltage sensors for voltage measurement per phase (Incorporated in the epoxy insulation), at the input and output of the Recloser | | Yes | | Yes |
| | - Accuracy of voltage amplitude | | ± 2% | | ±2% |
| | - Accuracy of angle of phase | | ± 1% | | ±1% |
| 2.2 | Insulators | | Yes | | yes |
| | Manufacture | | | | | hemg |
| | Material | | Resyn | | resin |
| | Type | | | | | zsw |
| | Leakage distance / Voltage of Line | mm/kV | >=25 | | 25 |
| 2.2 | Max. Open time | seg | 0.06 | | 0.06 |
| 2.2 | Max. Close time | seg | 0.05 | | 0.06 |
| 2.2 | Pole operation | | SI | | yes |
| 2.2 | Number of electric operations | | >=10000 | | 10000 |
| 2.2 | Number of mechanicall operations | | >=10000 | | 10000 |
| 2.2 | Indicator of position OPEN-CLOSE visible from the soil. | | Yes | | yes |
| 2.2 | Equipment with lifting hook | | Yes | | yes |
| 2.2 | Type of operation mechanism | | Magnétic | | Magnetic |
| 3 | CHARACTERISTICS OF ELECTRONIC CONTROL | | | | | |
| 3.1 | Manufacturer | | | | | HEMG |
| 3.2 | Model | | | | | CHZ4 |
| 3.3 | Country | | | | | CHINA |
| 3.4 | Standards | | ANSI / IEEE 37,90 | | ANSI/IEEE37.90 |
| 3.5 | Operation principle | | Microprocessor | | NICROPROCESSOR |
| 3.6 | Functions of protection (*) | | | | | |
| | -Overcurrent of phases | 50/51 | Yes | | 50/51 |
| | - Overcurrent phase to ground | 50N/51N | Yes | | 50N/51N |
| | - Overcurrent directional | 67/67N | Yes | | 60/67N |
| | - Sensitive ground fault | SEF | Yes | | SEF |
| | - Función de sobre tensión | 59 | Yes | | 59 |
| | - Function of homopolar voltage | 59N | Yes | | 59N |
| | - Functions failure of the breaker | 51BF | Yes | | 51BF |
| | - Function of frequency | 81 O/U | Yes | | 81O/U |
| | - Reclose | 79 | Yes | | 79 |
| 3.7 | Minimum trips currents | | | | |
| | - Failure between phases | Amp | 25 | | 25 |
| | - Failure to ground | Amp | 5 | | 5 |
| 3.6 | Recloser Status Indicator | | Yes | | YES |
| 3.7 | Oscillographic record in Contrade format.
| | Yes | | YES |
| 3.8 | Fault locator | | Yes | | YES |
| 3.9 | Event storage | | Yes | | YES |
| 3.1 | Parameter display template | | Yes | | YES |
| 3.1 | Digital imputs | | Yes | | YES |
| 3.1 | Digital outputs | | Yes | | YES |
| 3.1 | IRIG-B port time synchronization. | | Yes | | YES |
| 3.1 | Elements of protection and blocking of harmonic currents | | Yes | | YES |
| 3.2 | Monitoring of the 3 voltage inputs | | Yes | | YES |
| 3.2 | Sag / Swell voltage recording for power quality analysis | | Yes | | YES |
| 3.2 | Auxiliary Source of Energy and Autonomy | | Battery (24 V) | | YES |
| 4 | COMUNICATIONS | | | | | |
| 4.1 | Communications protocol for sending to the Scada | | DNP3 (TCP/IP) and IEC 61850 | | DNP AND IEC61850 |
| |
| 4.2 | RS232 and RS485 communication port (**) | | Yes | | YES |
| 4.3 | Sending of digital signals through communications port at protection speed | | Yes | | YES |
| 4.4 | RS232 communication port independent of the port for SCADA sending that allows communication between reclosers in a protocol in order to allow quick restoration schemes in the event of a fault between two consecutive reclosers. | | Yes | | RJ45 |
| 4.5 | Communication protocol that allows communication between reclosers in order to allow quick restoration schemes in the event of a fault between two consecutive reclosers (Include protocol characteristics) | | Attach the documents of the test report
| | YES ,BEFORE SHIPMENT |
| 5 | ACCESORIES | | | | | |
| 5.1 | Metallic structure for mounting on electric station,include the anchor bolts. | | Yes | | YES |
| 5.2 | 04 Interface cables for PC configuration | | Yes | | YES |
| 5.3 | Configuration software (unlimited licenses), event analysis and management of electronic control | | Yes | | YES |
| 5.4 | Surge arresters 21kV 10kAmp | | Yes | | YES |
| 5.5 | Groundind to earth <10 ohm guaranteed | | Yes | | YES |
| | Spare parts | | | | | |
| 5.6 | Battery | | 1 | | 1 |
| 5.7 | Front panel face masks | each | 2 | | 2 |
(*) Protection curves according to ANSI, IEC, own and user-defined standards
(**) The electronic control shall have an RS-485 or higher communication port for data transmission to the SCADA. |

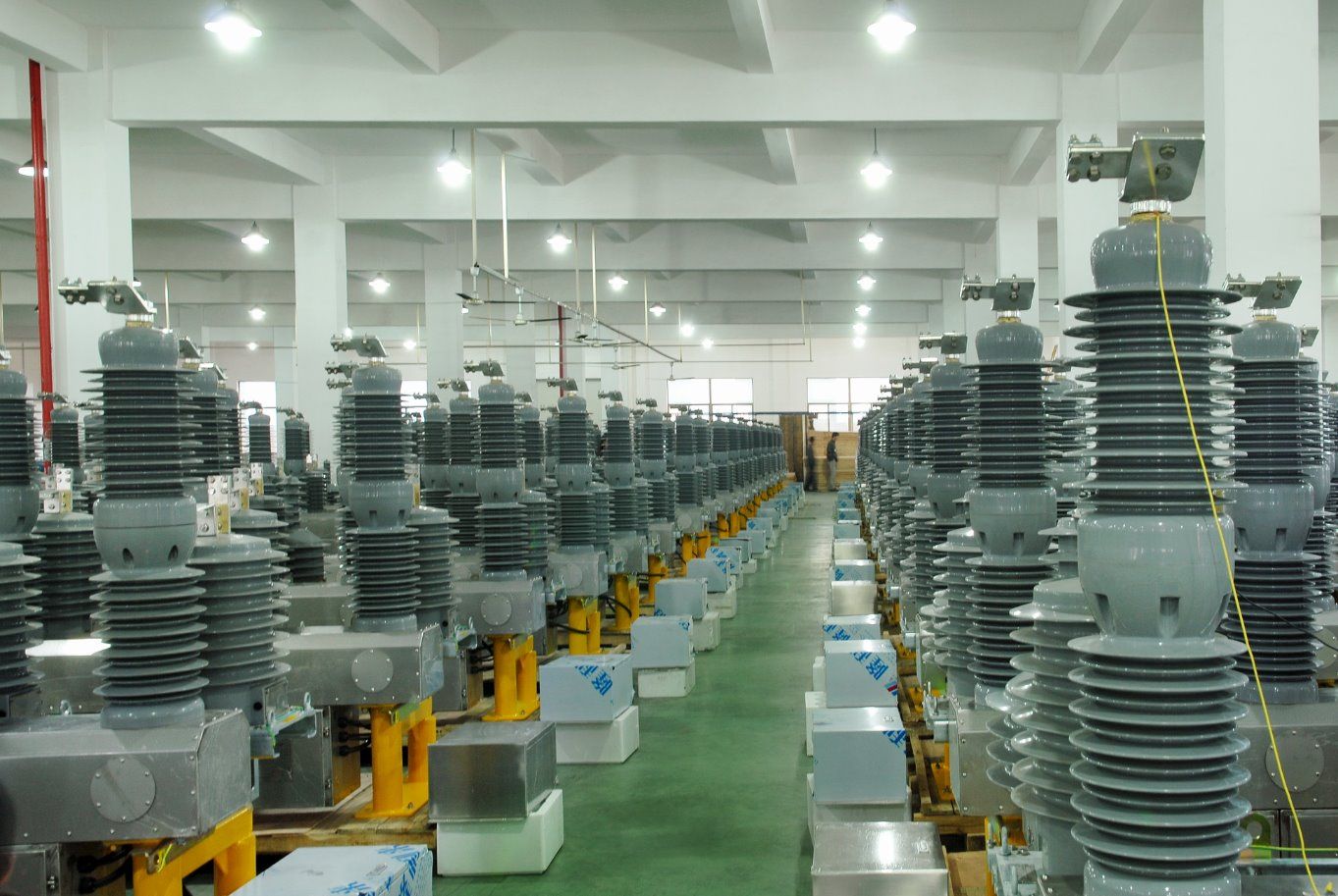

Ningbo Hyuan Power Industry Co., Ltd was found in 2006, It is a professional company which is involved in Complete supply, Designing, Consulate and Service of Substation up to 245kv and of Distribution Automation up to 245kv
Our product is including of:
1.15KV/27KV/38KV, 50Hz/60Hz, 630A/1250A The Most advanced Recloser in the world for Pole mounted and Substation Mounted with Protocol IEC61850/DNP3.0 according to IEEE/ANSI/IEC standard;
2.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Three phase Outdoor Isolator/Disconnector with Double Break at side /Central Single Break for Level/Vertical Mounted on Pad Substation or Power Tower;
3.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Outdoor Three phase /Single phase SF6/Vacuum Circuit Breaker with Three Phase Common Operation /Single Phase Seperate Operation;
4.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, MR2000/1(5)A, Outdoor Oil/Resin/Capacitor Current transformer, Voltage Transformer up to 5 cores;
5.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, 100kvar to 100Mvar capacitor bank for pad mounted and Pole mounted;
6.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Power Transformer up to 200mva and reactor up to 200Mvar;
7.400V/6KV/15KV/27KV/38KV, 50Hz. 60Hz, indoor AC control and Protection switchgear panel for substation and Distribution system;
8.48VDC/110VDC/220VDC 50Hz/60Hz Lead-Acid/Ni-CD Battery bank with Charger up to 2000AH;
9.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Cable heat srink/cold shrink Terminal and Joint with joint box
10.33KV/66KV/145KV 50Hz/60Hz dead tank GCB /HGIS and compact GIS;
11.11KV/33KV, 50Hz/60Hz, 9/11/17/32 steps ON LOAD TAP CHANGER for Power Ttansformer
12. RTU remote terminal unit for VCB, SWITCHGEAR AND RECLOSER WITH IEC61850/DNP3.0 Protocol
Our Mian service is including of:
1. Designing, Complete Supply, Conssate and Commission of 33KV/66KV/145KV/245KV 60Hz/50Hz substation including of GCB, DS, CT PT, LA, Transformer, Cable, Control & Protection Panel, Earthing Grounding system,
SCADA system, Steel grid tower;
2. Desinging, Complete Supply, consulate and Commission of 33kv/66kv/145kv/230kv 60Hz/50Hz Distribution automatic system including of recloser, sectionaliser, fault indicator, RTU, GPRS, and management software
We are rich experience in substation and automatic distribution system for 10years, our business had been involve in the world I including of Bangladesh, Indonesia, malasia, Pakistan, zimbia, zembewei, Peru, Ecuador ect over the world.
Customerizer will be welcome, Speciall required wil be welcome, we have good experience to proposal you and support you to success in business.
All the goods from HEMG will be guaranteed within 2 years, in specially, it will be 5 years.
For Above 1 million Order, We will send our engineer to work in site untill runing in good conditions.
