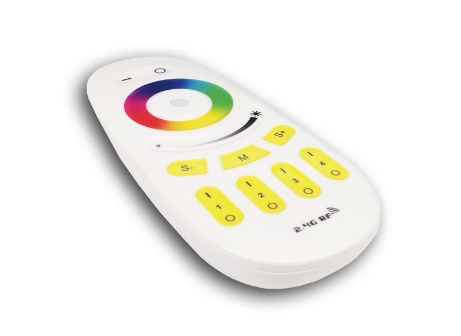

4 Zones Touch Remote Controller for RGB RGBW

Lead Time:	3 Working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Voltage:	3V
Material:	Plastic
Battery Type:	AAA Battery

Product Description




1. Can WiFi Control with Mi-light WiFi Bridge.
2. 1 remote control 4 zones receiver and lights together or separately.
3. Touch Design.
4. Color ring for 16 million colors, 9 dynamic modes inside.
5. Control distance: 20-30 meters.


  Product Description
This 4 zone 2.4G RF RGB Controller is the touch button RF wireless remote controller, the most advanced PWM (pulse width modulation) control technology have been adopted. It can be installed & used easily, plenty modes can be selected, speed & brightness can be adjusted with the remote. It also has memory function because we inside the memory chip on the PCB. With all these high functions, we still make it so tiny, and make it more economical and practical. It's mainly used to control all kinds of constant voltage led lights, such as: LED source, LED strips, led wall washer, wall Glass curtain lights, etc.

Dynamic modes



No	Mode
1	7 color fade
2	White fade in and out
3	Red fade in and out +        Green fade in and out +       Blue fade in and out +       white fade in and out
4	7 color jump
5	Red fade in and out+ jump flash 3 times
6	Green fade in and out+ jump flash 3 times
7	Blue fade in and out+ jump flash 3 times
8	Auto Cycle

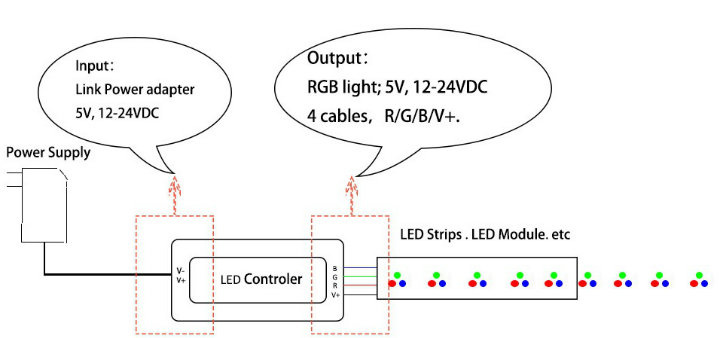

 DIAGRAM & INSTALLATION
WiFi Control:

With  iBox1 or iBox2 to achieve WiFi Control.  Contact us to guide you how it works.

Specifications

Item	Description	remark
Work voltage	3V	AAA*2
Radio Frequency	2400-2483.5MHz
Modulation	GFSK
Transmit power	6db
Standby power consumption	10uA
Remote distance	20-30 meters
Size	110*55*20mm
