Rigid Conductor Control Cable |
| Product Name: |
Rigid Conductor Control Cable |
| Rated Voltage: |
450/750V 0.6/1 Kv |
| Conductor: |
Copper |
| Insulation: |
PVC |
| Sheath: |
PVC |
| Core Color: |
Red Yellow Blue Green Black or as Your Requirement |
| Shield: |
Copper Wire / Copper Tape / Steel Tape |
| Packaging: |
Packed in Roll or Wooden Drum |
| Shipping: |
3-10 Working Days |
| MOQ: |
100 Meter |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Instrument |
| Model: |
Various Control Cable |
| Brand: |
Chang Qing Teng |
Product Description
ITEM NAME : 450/750V XLPE Insulated PVC Sheathed Rigid Conductor Control Cable
APPLICATION
Copper Conductor XLPE Insulated PVC Sheathed Rigid Control Cable (KYJV) is mainly used for system connection wire of control,signal,protection or measuring for rated voltage up to and including 450/750V.
CABLE STANDARDS
GB/T,JB/T,IEC,BS,DIN,ICEA up on request.
BASIC INFORMATION
Code Name
KYJV/KVV
Rated Voltage (Uo/U)
450/750V
Cable Structure
CU/XLPE Insulation/PVC Sheathed
CONSTRUCTION
Conductor
Preferred Number of cores:
2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52,61
The conductors shall comply with the requirement given in IEC 60228 for class 1 or 2.
class 1 for solid conductors;
class 2 for stranded conductors.
Insulation
Cross-linked Polyethylene XLPE according to IEC.
Sheathed
PVC(Polyvinyl Chloride) Type PVC/ST2 according to IEC.
Other special application cable can be provided upon requests:
Fire-resistant,Flame-retardant,Low-halogen,Non-halogen,Low-fume,Low-smoke ( LSZH ),as well as acid-alkali-proof,High temperature resistant,Termite and Rodent resistant, Water proof series and so on.
CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 90ºC
Installation temperature
Ambient temperature under installation shall not be below 0ºC
Max.temperature of conductor under short circuit-(Max.Duration 5 sec.)
xlpe Insulated:250ºC
Preferred Permissible bending radius
For non-armoured XLPE insulated cable not less than: 12 times of cable diameter
VARIOUS TYPES FOR YOU TO CHOOSE
Type | Description | Rated Voltage | Conductor Size |
KVV (ZR/NH-KVV) | PVC insulated PVC sheathed (flame retardant or fire resistance) control cable | 450/750V | 2~61 cores 0.75~10mm2 |
KVVP (ZR/NH-KVVP) | PVC insulated PVC sheathed copper wire braid shielded (flame retardant or fire resistance) control cable |
KVVP2 (ZR/NH-KVVP2) | PVC insulated PVC sheathed copper tape shielded (flame retardant or fire resistance) control cable |
KVV22 (ZR/NH-KVV22) | PVC insulated PVC sheathed steel tape armored (flame retardant or fire resistance) control cable |
KVV32 (ZR-KVV32) | PVC insulated PVC sheathed steel wire armored (flame retardant) control cable |
KVVR (ZR-KVVR) | PVC insulated PVC sheathed (flame retardant) flexible control cable |
KVVRP (ZR-KVVRP) | PVC insulated PVC sheathed copper wire braid shielded (flame retardant) flexible control cable |
KYJV (ZR/NH-KYJV) | XLPE insulated PVC sheathed (flame retardant or fire resistance) control cable | 0.6/1kV | 2~61 cores 0.75~10mm2 |
KYJVP (ZR/NH-KYJVP) | XLPE insulated PVC sheathed copper wire braid shielded (flame retardant or fire resistance) screen control cable |
KYJVP2 (ZR/NH-KYJVP2) | XLPE insulated PVC sheathed copper tape shielded (flame retardant or fire resistance) control cable |
KYJV22 (ZR/NH-KYJV22) | XLPE insulated PVC sheathed steel tape armored (flame retardant or fire resistance) control cable |
ZR-KYJS-C | XLPE insulated LSHF sheathed flame retardant control cable | 0.6/1kV | 2~61 cores 0.75~10mm2 |
ZR-KYJSP-C | XLPE insulated LSHF sheathed copper wire braid shielded flame retardant control cable |
ZR-KYJS P2-C | XLPE insulated LSHF sheathed copper tape shielded flame retardant control cable |
ZR-KYJSP3-C | XLPE insulated LSHF sheathed aluminum tape shielded flame retardant control cable |
ZR-KYJS22-C | XLPE insulated LSHF sheathed steel tape armored flame retardant control cable |
ZR-KYJSR-C | XLPE insulated LSHF sheathed flame retardant flexible control cable |
ZR-KYJSRP-C | XLPE insulated LSHF sheathed copper wire braid shielded flame retardant flexible control cable |
TECHINICAL PARAMETER
Nom.
Cross section
(mm) | Conductor construction | DCresistance of conductor at 20oC(min.) Ω/km | Nom.wall thickness
of insulaion mm |
Insulation resistance
of 70oC
(MΩ/km)
|
Type |
No./Nom. Dia of conductor mm
| PVC | PE | XLPE |
1.0 | 1 | 1/1.13 | 18.1 | 0.6 | 0.7 | 0.7 | 0.011 |
1.0 | 2 | 7/0.43 | 18.1 | 0.6 | 0.7 | 0.7 | 0.013 |
1.5 | 1 | 1/1.38 | 12.1 | 0.7 | 0.7 | 0.7 | 0.011 |
1.5 | 5 | 30/0.25 | 13.3 | 0.7 | 0.7 | 0.7 | 0.010 |
2.5 | 1 | 1/1.78 | 7.41 | 0.8 | 0.7 | 0.7 | 0.010 |
2.5 | 2 | 7/0.68 | 7.41 | 0.8 | 0.7 | 0.7 | 0.009 |
4 | 1 | 1/2.25 | 4.61 | 0.8 | 0.7 | 0.7 | 0.0085 |
4 | 2 | 7/0.85 | 4.61 | 0.8 | 0.7 | 0.7 | 0.0077 |
6 | 1 | 1/2.76 | 3.08 | 0.8 | 0.7 | 0.7 | 0.0070 |
6 | 2 | 7/1.04 | 3.08 | 0.8 | 0.7 | 0.7 | 0.0065 |
10 | 2 | 7/1.35 | 1.83 | 1.0 | 0.7 | 0.7 | 0.0065 |

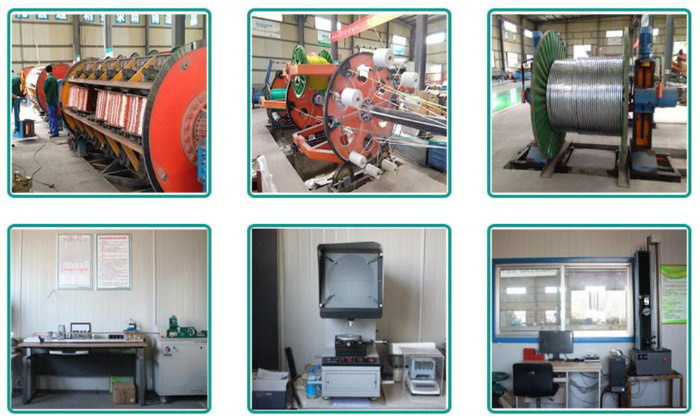

Company Information Our company-Shandong New Luxing Cable Co.,Ltd establish in the year of 1999 , so until now we have been in this line for more than 18 years .at present ,we have 150 empoyees in total , and annual sales volume is about 8 billion .our headquarter in Jinan City , the capital in shandong province . and our factory located in Dezhou City , Covering an area of more than 60 acres .Strict Quality Test ( Raw Material & Finished Cable )
Certificates ( ISO CE CCC ROHS GB/T )
Type Test Report
We Mainly Produce the Following Products | 300/500V 450/750V electrical wire | AAC conductor |
| 600/1000V PVC insulated cable | AAAC conductor |
| 600/1000V XLPE insulated cable | ACSR conductor |
| 1.8/3KV to 26/35KV power cable | OPGW |
| Armored underground cable | ABC cable |
| Control cable and instrumentation cables | Rubber cable |
