| Prod Model: |
SU-CON-RF8B(T)-3CH-LV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Wireless Audio Controller (RF8b) |
| Size(Mm): |
L121*W53*H25 Mm |
| Suply Voltage: |
DC5V, 12V, 18V24V |
| Output Current: |
8A*3CH(12V) / 4A*3CH(2 |
| Output Power: |
216W(12V) / 288W(24V) |
| Frenquency: |
433.92MHz |
| Polarity: |
Common Anode |
| Packing Size: |
L150*W76*H51 Mm |
| Output: |
3 Channels |
| With Remote Controller: |
Yes |
| Signal Transmission: |
RF Remote Control |
| Application: |
Audio / Video Players |
| Type: |
Audio Controller |
Product Description

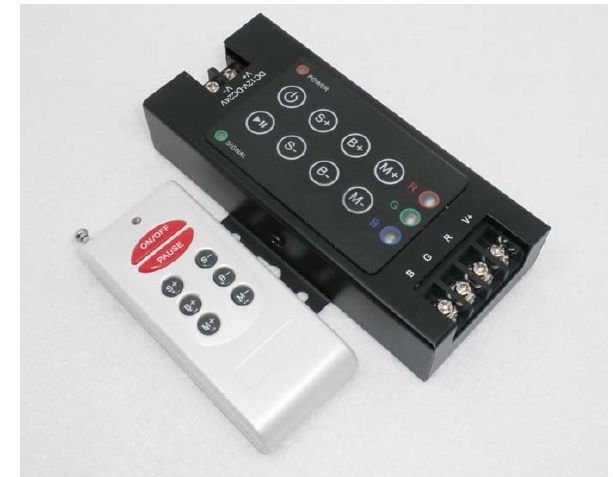

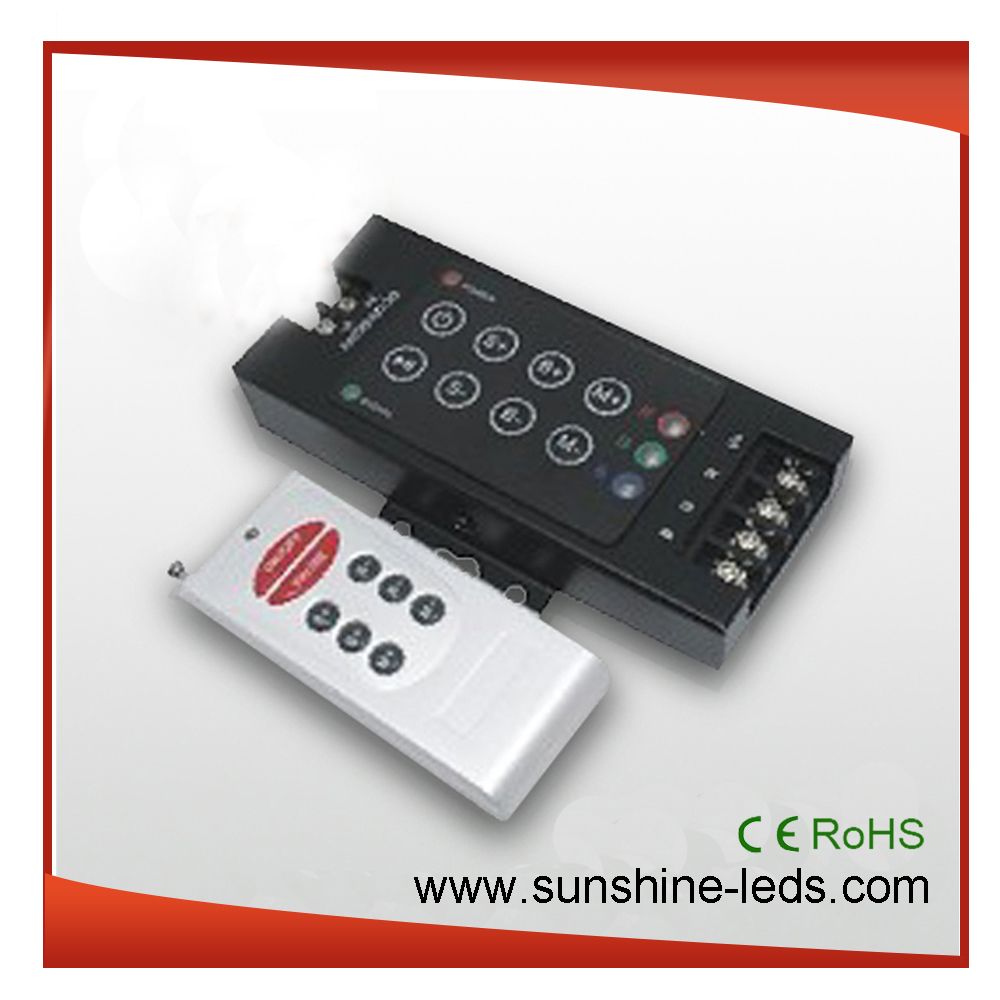

4A ,288W High quality!Wireless Audio controller (RF8B)
Summarization RF 8-key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on;It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.Technical Parameters 1.Working temperature: -20-60 °C
2. Supply voltage: DC5V, 12V ,18V, 24V(Order goods need marking out the required voltage)
3. Output: 3 channels
4. Connecting mode: common anode
5. External dimension: L121W53H25 mm
6. Packing size: L150W76H51 mm
7. Net weight:255g
8. Gross weight:285g
9. Static power consumption: <1W
10. Output current: <4A(each channel)
11. Output power: 5V:<60W, 12V:<144W, 24V:<288W
External Dimension
Interface Specifications

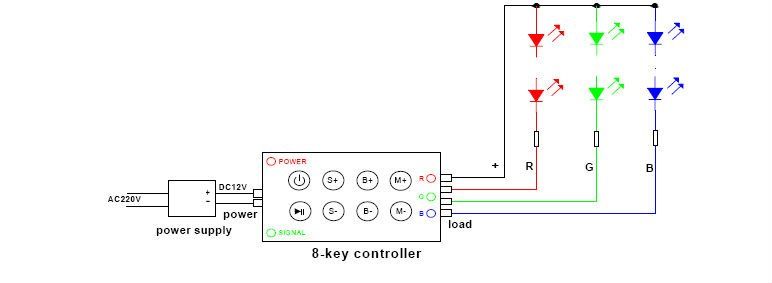

Direction for use Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
Adopt film button and RF for controlling,there are 8 buttons in all, the funtion of each key as follows:
(1): you could turn on/off controller at any time;
(2): Play/pause button,it is convenient for you to see the static effection of led;
S(3)+: The step of the speed change add 1 by each pressing;
S-(4): The step of the speed change subtract 1 by each pressing;
B+(5): A brightness control button,the step of the brightness add 1 by each pressing;
B-(6): The step of the brightness subtract 1 by each pressing;
M+(7): The NO. of patterns add 1 by each pressing;(refer to the following form)
M-(8): The NO. of patterns subtract 1 by each pressing;
3. Standard changes funtion as the following form:
Our service1.your inquiry related to our products or prices will be replied in 24hours.
2.well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM and ODM,any your custonized lightings we can help you desiign put into product
4.Distributonership are offered for your unique design and some our current models
5.protection of your sales area,ideas of design and all your private information
Pament Terms: T/T, West union, Paypal is availiable for us. Should any questions ,Pls add my skype or give me an inquiry , So I can service you better ,also you can get more information for our COB Downlight , Happy shopping !!
Contact : Rachel Lee
Mobile no: +86-15999511752
Phone no: +86-755-89564062
|
Part no. |
Description |
Supply Voltage |
Output current |
Output Power |
Size(mm) |
|
SU-CONAudio-RF6B(H)-3CH-LV |
Wireless Audio Controller
(RF6B) |
12V, 24V |
<4A |
12V<144W 24V<288W |
L130ΧW64ΧH24 mm |
|
SU-CONAudio-RF8B(T)-3CH-LV |
Wireless Audio Controller
(RF8B) |
12V, 24V |
<4A |
12V<144W 24V<288W |
L121ΧW53ΧH25mm |
