5kw 10kw Solar Panel off-Grid Inverter with Controller
| Price: |
US $ 571-1320/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
SC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated DC Voltage: |
12/24/48/96V |
| Input Voltage: |
90V-127V, 165-275V |
| Charge Current: |
10-100A |
| Voltage Drop: |
Less Than 0.3V |
| Control Method: |
MPPT |
| Output Voltage: |
110/120/220/230V |
| Output Frequency: |
50/60Hz |
| Environment Humidity: |
0-90% Maximum, Non-Condensable |
| Wave Form: |
Pure Sine Wave, Thd<4%(Full Load) |
| Efficiency: |
90% |
Product Description
5KW 10KW Solar Panel Off-grid Inverter with ControllerTanfon Advantages: Installtion service and technical support

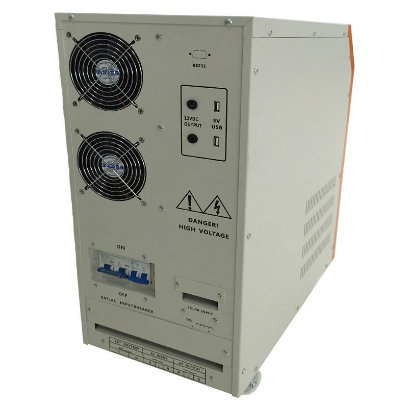

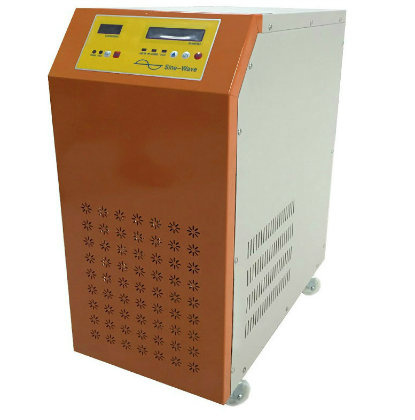

Front and Back Look:
Feature:1.Combine with solar power controller and inverter hybrid function.2.Completely controlled by CPU.3.Inverter use copper transformer, pure sine wave output.4..LCD displays, clearly to know the status.5.have bypass function and AC charger (UPS function)6.Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc. 7.Easy operation,only need connect the panels and batteries directly to the Hybrid solar inverter.Working way below optional:1.the city power priority: when it have city power ,inverter will work bypass output ,city power take the load directly; when have both city power and sun power ,inverter will charge 2 kinds power to battery .when city power failed ,just charge solar power to battery . 2.battery power priority: when it have sun power ,just charge sun power to battery ,and take the load ,when it has not sun power ,inverter will use battery power take the load .when battery power is lower ,inverter will automatically use bypass function to take the load ,and charge to battery at the same time.Additional function:5V USB charger and 12v DC chargerSpecification:| Model | SC1500 | SC2000 | SC3000 | SC5000 |
| Rated power(W) | 1500W | 2000W | 3000W | 5000W |
| Rated DC voltage(V) | 24Vor48V | 48V or 96V |
Line input | Input voltage(V) | 145-280V, 90-127V |
| Charge current(A) | 7-25A |
| Inverter output | Output voltage(V) | 220VAC±5% &5V,12V DC |
| Output frequency | 50Hz/60Hz±1% |
| Wave form | Pure Sine Wave, THD<4%(Full Load) |
| Solar input | Maximum voltage(V) | 42V or 88V or 176V |
| Rated power(Wp) | 1500 | 2000 | 3000 | 5000 |
| Solar Controller | Charge current(A) | 50/30 | 40/30 | 60/40 | 80/60 |
| MPPT range(V) | 24v(20-34)48v(40-68),96v(80-136) |
| Charging efficiency | 90%-95%, Peak on 97% |
Other
| Over charge
protective voltage of battery(V) | 24V(28.6),48V(57.2),96V(114) |
| Over charge recover-voltage of battery(V) | 24V(27.4),48V(54.8),96V(109.6) |
Voltage drop between solar
module and battery(V) | ≤0.5V |
Voltage drop between loads
and battery(V) | ≤0.25V |
| Start speed of cooling fan | Have |
| Environment Humidity | 0-90% Maximum,non-condensable |
| Protective Functions | Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules |
| Control method | MPPT |
| Size :D*W*H(mm) | 470*230*480 | 470*230*560 |
| N.W&G.W(kg) | 26/32 | 32/38 | 40/49 | 44/52 |
| Model | SC6000 | SC7000 | SC8000 | SC10000 |
| Rated power(W) | 6KW | 7KW | 8KW | 10KW |
| Rated DC voltage(V) | 96V or 120V |
Line input | Input voltage(V) | 145-280V, 90-127V |
| Charge current(A) | 28A-45A |
| Inverter output | Output voltage(V) | 220VAC±5% &5V,12V DC |
| Output frequency | 50Hz/60Hz±1% |
| Wave form | Pure Sine Wave, THD<4%(Full Load) |
| Solar input | Maximum voltage(V) | 176V or 220V |
| Rated power(Wp) | 6kw | 7kw | 8kw | 10kw |
| Solar Controller | Charge current(A) | 60A | 80A | 80A | 100A |
| MPPT range(V) | 96v(80-136);120V(100-170V) |
| Charging efficiency | 90%-95%, Peak on 97% |
Other
| Over charge
protective voltage of battery(V) | 96V(114);120V(142V) |
| Over charge recover-voltage of battery(V) | 96V(109.6);120V(137V) |
Voltage drop between solar
module and battery(V) | ≤0.5V |
Voltage drop between loads
and battery(V) | ≤0.25V |
| Start speed of cooling fan | Have |
| Environment Humidity | 0-90% Maximum,non-condensable |
| Protective Functions | Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules |
| Control method | MPPT |
| Size :D*W*H(mm) | 590*470*730 |
| N.W&G.W(kg) | 64/72 | 68/76 | 70/83 | 73/88 |
FAQ for our inverter:Q1.Are you factory?A1. Yes, our factory and sales department are located in Foshan and we would be pleased to welcome you in our factory at any time when you are in Foshan.
Q2.What is the warranty for this inverter?A2.YES,All products are at least 2 years warranty. Q3.What is the shipping way?A3.DHL,UPS,TNT,EMS,FedEx, Ship by sea. Q4.Can we customize product?A4.YES.OEM&ODM.A5.Are there some optional function for your inverter?Q5.Yes,it have battery priority function,grid priority function,AC grid charger function,AVR function,RS232 interface telecommunication function.Solar system inverter mostly use battery priority function,AC grid charger function.It can make full use of solar power.
More FAQ,pls feel free contact us directly!

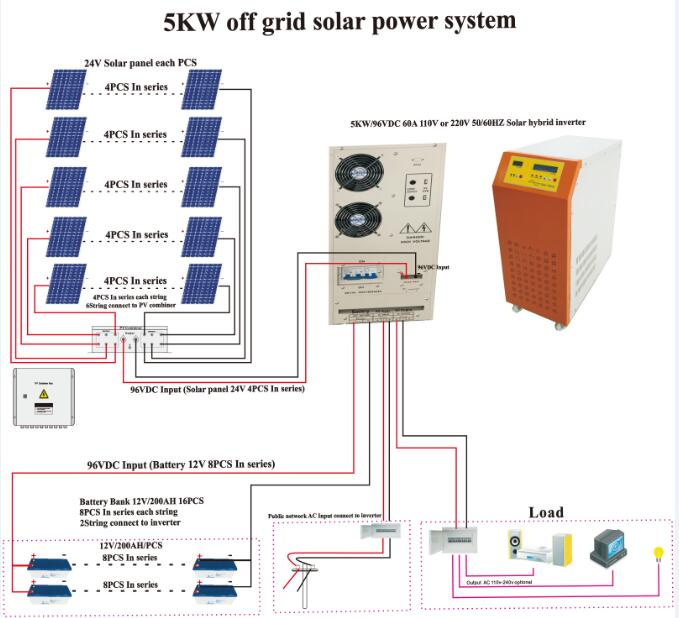

System installation drawing:
More system installation drawing,pls contact us directly!

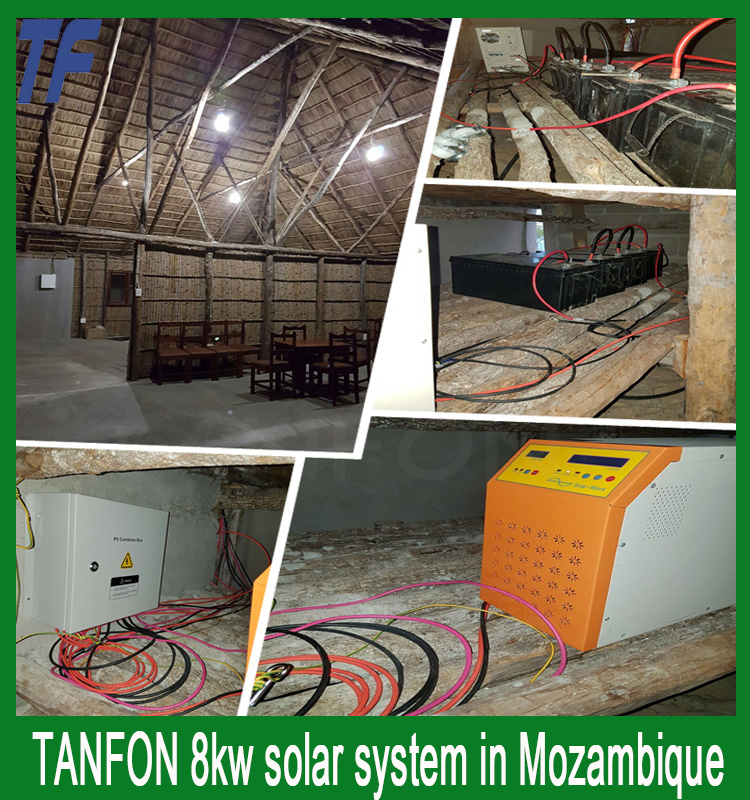

Customer installation feedback:
We offer Good quality and Good service:
With us, your business in safe, your money in safe!
Who we are?
Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart and responsibility.
What we do?
We are specialized in the R&D, manufacture and sale of the high quality environmental solar system, wind energy turbine, solar street light, solar pump and pure sine wave inverter, etc.
Now we are having the main series products as below:
1. Solar inverter
2. Solar controller(PWM and MPPT)
3. Portable solar system
4. Solar power system
5. Solar on grid system
6. Solar refrigerator system
7. Wind power system
8. Wind &solar hybrid system
9. Solar street light system
10. Solar air conditioner system
With these items as our weapons, we can fully supply the solutions for our clients' different needs.
We adhere to "quality first, users first" purpose, devoting ourselves everyday into setting up a suitable system for all of our clients.
How we do?
For the production, we have the professional production lines(Automatic series welding machine, EL test machine, Automatic frame machine, Special debug machine). Each step of production is under strict quality control. Our products are qualified with CE, RoHS, ISO certification.
For the service, we promise the quality. All products have the certain warranty and the new part would be shipped freely on time for service during the warranty. Also our company has started opening the factories in some countries, so it is very convenient to service you well at local.
Importantly, with a professional installation team, we have been to many countries(like Egypt, Bangladesh, Chad, Nigeria, Ghana, Doha, Pakistan) for installation service as well as win good feedback from the customers.
Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation.
Our Vision:
Tanfon create a solar kingdom for you
Our Mission:
Sincere, All-win, Unite, Aggressive.
Our Core Value:
100% Commitment 100% Contribution
100% Possibility 100% Time
