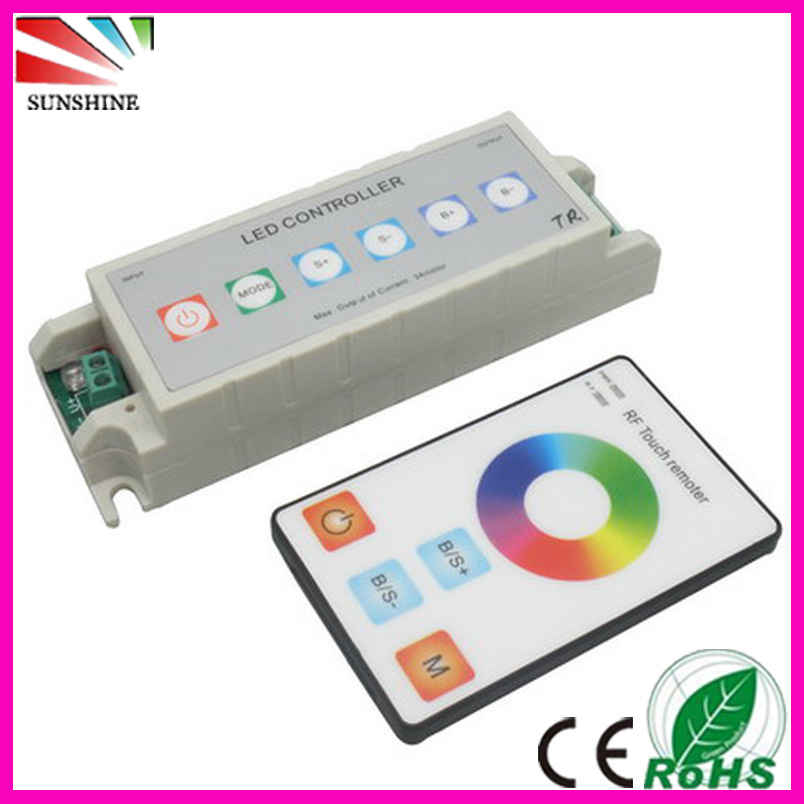

6-Key Touch RF RGB LED Controller

Prod Model:	SU-CON-TRF4B(C)-3CH-LV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	3 Channels
Supply Voltage:	5V, 12V, 24V
Connectiing Mode:	Common Anode
Output Current:	<4 a
Output Power:	60W, 144W, 288W
Certificate:	CE&RoHS
Warranty:	2 Years
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Metal
Battery Type:	AA Battery
Application:	LED Lighting

Product Description

6-key Touch RF RGB LED controller
1. Touch RGB RF controller
2. RGB wireless controller for RGB products
3. CE&RoHS approved
4. 2years warranty

Main feature
1. Touch-button, ultrathin, light quality, protable.
2. Touch-key count up to 64, up to 64 kinds of mode function, small volume, more key funcation.
3. Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
4. Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.

Technical Parameters
Controller
1. Working temperature: -20-60 degrees
2. Supply voltage: DC5V, 12V, 18V, 24V < optional > ( supply voltage should be marked on order )
3. Output: 3 channels
4. Connection mode: Common anode
5. External dimension: L130 * W40 * H31 mm
6. Packing size: L140 * W50 * H60 mm
7. Net weight: 125g
8. Gross weight: 150g
9. Static power: <1W
10. Output current: <3A( each channel )
11. Output power: 5V<45W, 12V<108W, 24V<216W

Touch remote
1. Working temperature: -20-60 dergees
2. Power supply mode: 28*8mm battery
3. Supply voltage: 12V
4. Static power consumption: 0.036mW
5. Standby current: 3uA
6. Work current: 300uA
7. Emission current: 12mA
8. Remote distance: 30m
9. Standby time: 6 months

Controller panel have 6 buttons, and the function as follows:

ON/OFF: You could turn on/off controller at any time;
MODE: The color change button, there are 21 modes of change for you to choose;
B+: A brightness control button, the grade of the brightness add 1 by each pressing, a total of 100 grades;
B-: The grade of the brightness subtract 1 by each pressing;
S+: The grade of the speed change add 1 by each pressing, a total of 100 grades.
S-: The grade of the speed change subtract 1 by each pressing.

Mode number	Function	Remark	Mode number	Function	Remark
1	Static yellow	Brightness is adjustable, Speed is unadjustable	11	Static blue-green	Brightness is adjustable, Speed is unadjustable
2	Static orange		12	Static light green
3	Static red		13	Static green
4	Static deep red		14	Static yellow green
5	Static pink		15	Static light yellow
6	Static purple		16	Three color jumpy changing	Speed is adjustable, brightness is unadjustable
7	Static bluish violet		17	Three color gradual changing
8	Static blue		18	Seven color jumpy changing
9	Static powder blue		19	Seven color gradual changing
10	Static azure
