8 Core Butterfly Self-Supporting Flat Fiber Optic Drop Cable

Name: 8 Core Butterfly Self-Supporting Flat Fiber Optic Drop Cable
Brand: all-electronics-online.com
SKU: 730994712
Availability: InStock
Rating: 4.8 (109 reviews)

Price:	US $ 0.005-0.15/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ftth cable
Model Number:	GJYXFCH
Fiber Type:	G652D,G657A,Om1,Om2,Om3,Om4
Outsheath:	PVC,LSZH.
Package:	1km/Roll,2km/Roll or Customized
Laying Method:	FTTH/FTTX/Ftta
Operating Temperature:	-20- +60
Number Of Conductors:	2
Standards:	Yd/T 1258.2-2003,Icea-596,Gr-409,IEC794,Ofnr & Ofn
Certificate:	SGS,UL,RoHS,ISO 9001-2008,Tlc,Ce
Color:	Black,White or Customized
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC

Product Description

GJYXFCH

1-12 cores

Single steel wire massagers as the additional strength member ensures good

performance of tensile strength

Simple structure,light weight and high practicability
Novel flute design ,easily strip and splice,simplify the installation and maintenance

Low smoke,zero haogen and flame retarant sheath.

Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
1	(2.0±0.2)X(5.3±0.2)	20	60/120	300/1000	15/30
2	(2.0±0.2)X(5.3±0.2)	20	60/120	300/1000	15/30
4	(2.0±0.2)X(5.3±0.2)	21	60/120	300/1000	15/30

Product Description

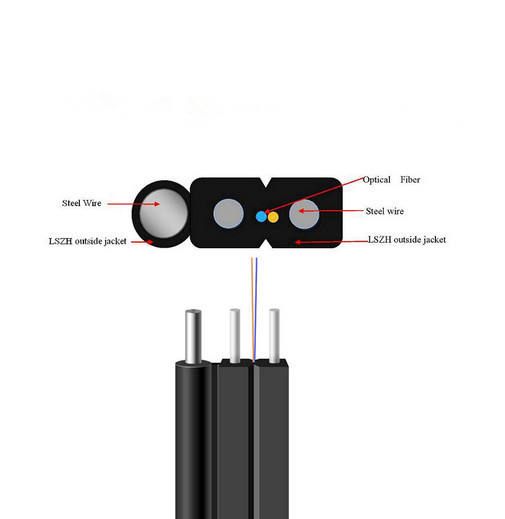

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
