| Prod Model: |
ftth cable |
| Product Name: |
4 Core Fiber Optic Cable |
| Optical Connector: |
FC Sc LC |
| Operating Temperature (ºC): |
-40~85 |
| Attenuation: |
<0.3 at 1310nm, <0.25 at 1550nm |
| Cable Specification: |
3.0*2.0 |
| Min.Bending Radiation: |
15/10 mm(Static) 30/25mm(Dynamic) |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
Product Description

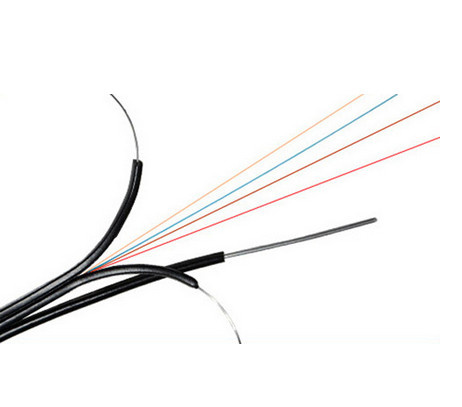

4 core fiber optic cable
Feature:
1.Low insertion loss and back reflection loss
2.Good exchangeability
3.Good Durability
4.High temperature stability.
5.Precise connector
Application
Butterfly Drop cable is designed according to the application environment and laying conditions and is flexible. It owns indoor soft and self -supporting fiber optic cable characteristics , with indoor junction box , quick connectors and fiber panels, can be connected to the optical fiber household's desktop, not only improve the efficiency of construction projects, but also saves construction costs. This product is suitable for communication network terminal and FTTX network cabling, for network convergence project, it is the best alternative products.

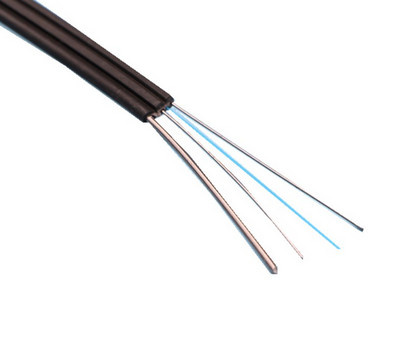

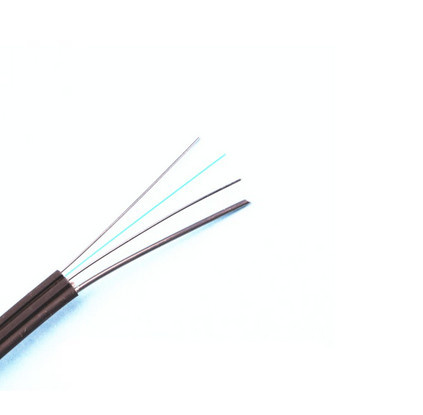

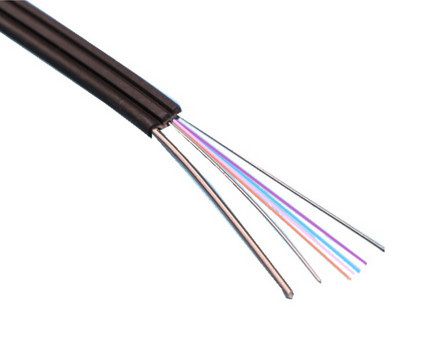

Drop cable , mostly single, dual core, can also be made into four core structure , shaped in cross section 8 , reinforcement located in the center of the two circles , can be metallic or non-metallic structures , fiber located in the geometric center of 8 shape. Using G.657 optical fiber bending radius fiber, bend radius of 20mm can be laid in the building to fit the pipe -line mode or open-wire line mode.
Drop cable can be divided according to the type of reinforcement metal and non-metallic reinforcement two kinds. Metal reinforcement of drop cable can achieve greater tensile strength, suitable for more remote interior vertical or indoor short distance horizontal cabling. Metal reinforcement drop cable use special copper clad steel wire material in construction instead of using conventional phosphate steel, it can avoid rebound of phosphate wire caused by damage to the cable. Non-metallic strength member FRP drop cable can achieve full nonmetallic home , lightning excellent performance suitable for fiber to the home.
Product Features:
1.Fiber optic light weight, strong tensile
2.Unique groove design, easily strip and splice, simple installation and maintenance
3.LSZH jacket, environmental, safety
4.100% "YOFC ","Fiber Home " G.657.A(bend-insensitive single mode fiber) core, to ensure product quality.
5.Delivery length:2000 m (1000 m) standard disk can be customized. Each disc fiber drop cable is attached with factory test parameters and certificates, in line with international and national standards.
6.Product Sheath color: white/ black.
Specification
Item | technical parameters |
Cable Type | YT-PXGL |
product standard(mm) | 3.0×2.0 |
Optical fiber coating color | Blue + orange |
(single mode optical fiber specification) | G.657.A2 Bending is not sensitive to single mode fiber |
Optical cable color | Black (or white) |
Optical cable protection materials | LSZH or PVC |
Cable outer diameter(mm) | 3.0(±0.1)*2.0(±0.1) |
approximated cable weight(kg/km) | 10~12 |
Cable minimum bending radius(mm) | 7.5 |
attenuation(dB/km) | less than 0.3at1310nm, less than 0.25at1550nm |
Short-term tensile(N) | 50~100 |
Short-term flattening force(N/100mm) | 500~1000 |
Note:
1,The reinforcement can use metal reinforcement or non-metallic parts (FRP or KFRP);
2,The general use of indoor drop cable sheath LSZH (Low Smoke Zero Halogen) material, outdoor drop cable can choose PVC material.
