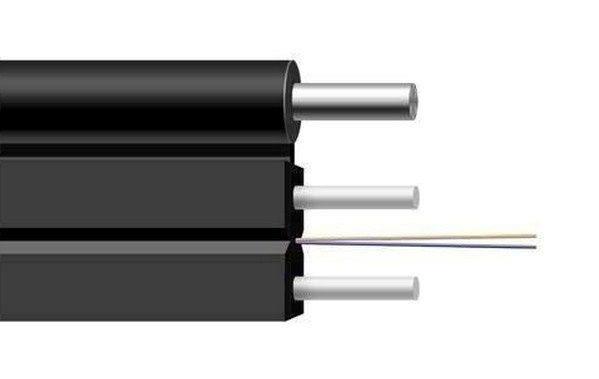

High-End 2 Core Butterfly Indoor FTTH Fiber Optic Cable

Name: High-End 2 Core Butterfly Indoor FTTH Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 833083155
Availability: InStock
Rating: 5 (21 reviews)

Price:	US $ 0.005-0.15/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUNET-FTTH CABLE
Model Number:	Gjyxch
Fiber Type:	G652D,G657A,Om1,Om2,Om3,Om4
Outsheath:	PVC,LSZH.
Package:	1km/Roll,2km/Roll or Customized
Laying Method:	FTTH/FTTX/Ftta
Operating Temperature:	-20- +60
Number Of Conductors:	2
Standards:	Yd/T 1258.2-2003,Icea-596,Gr-409,IEC794,Ofnr & Ofn
Certificate:	SGS,UL,RoHS,ISO 9001-2008,Tlc,Ce
Color:	Black,White or Customized
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC

Product Description

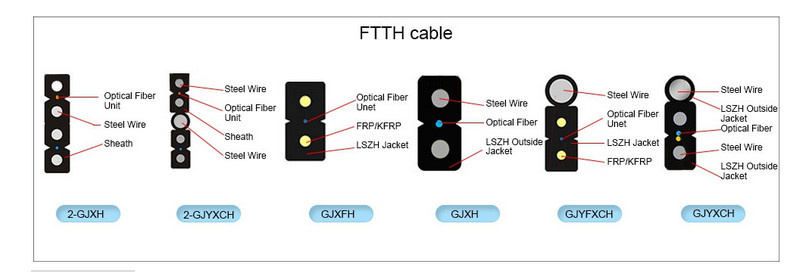

GJYXCH

1-24 cores

Special tube filling compound ensure a critical protection of fiber;

special sesigned compact structure is good at preventing loose tubes from shrinkong;

FRP used as the central strength member;

Water-blocking tape enhancing moisture-proof.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.45 dB/km	≤0.50 dB/km
	@1550nm	≤0.30 dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
2	(2.0±0.2)×(3.4±0.2)	8.5	30/60	300/1000	15/30
1	(2.0±0.2)×(3.8±0.2)	9	30/60	300/1000	15/30
4	(2.0±0.2)×(4.0±0.2)	10	30/60	300/1000	15/30

Product Description

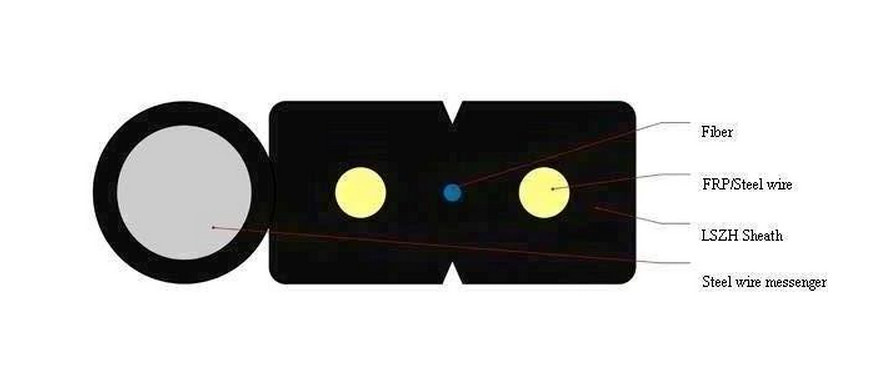

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

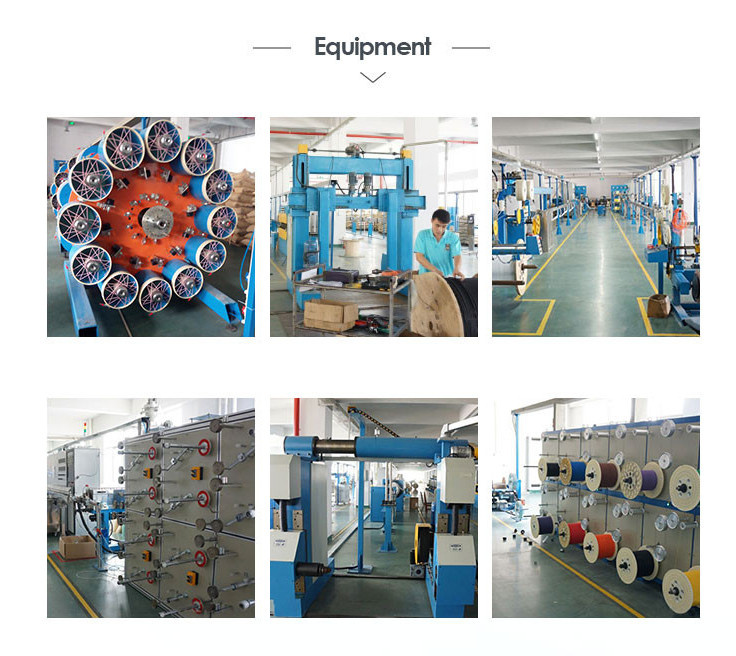

Qingdao Sunet Technologies Co., Ltd (SUNET), estalished in 2006 Year(which located in beatiful city QINGDAO, Shandong Province), is a high-tech enterprise and a leading worldwide provider for Fiber Optic Components.

Now it is the biggest fiber optic components supplier in North China. Our main products are all kinds of Fiber Optic components such as fiber optic Patchcords, fiber optic Pigtails, fiber optic Adapters, fiber optic FBT Couplers, PLC splitters, WDM/CWDM/DWDM, all series of Distribution boxes and FTTH products.

All our products are comply with the international quality standard and are greatly apprecatied in a variety of diffrent markets thoughout the world!

We have over 300 employees, and because of our high-quality production and excellent customer service, we have gained a global sales network reaching North American, Europe, South American, Asia etc.

We have passed ISO9001: 2008 Quality Management System Certification and ISO14001 Environmental Management System Certification. Our high quality products and outstanding service win the customers from all the world, and SUNET is looking forward to cooperate with you!
