High-End GJFJV Multi Purpose Distribution G652D Optic Fiber Cable

Name: High-End GJFJV Multi Purpose Distribution G652D Optic Fiber Cable
Brand: all-electronics-online.com
SKU: 730995432
Availability: InStock
Rating: 4.6 (45 reviews)

Price:	Negotiable/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	indoor fiber optic cable
Model Number:	GJFJV
Number Of Conductors:	>10
Fiber Type:	G652D,G657A,Om1,Om2,Om3,Om4
Fiber Count:	1-24 Cores

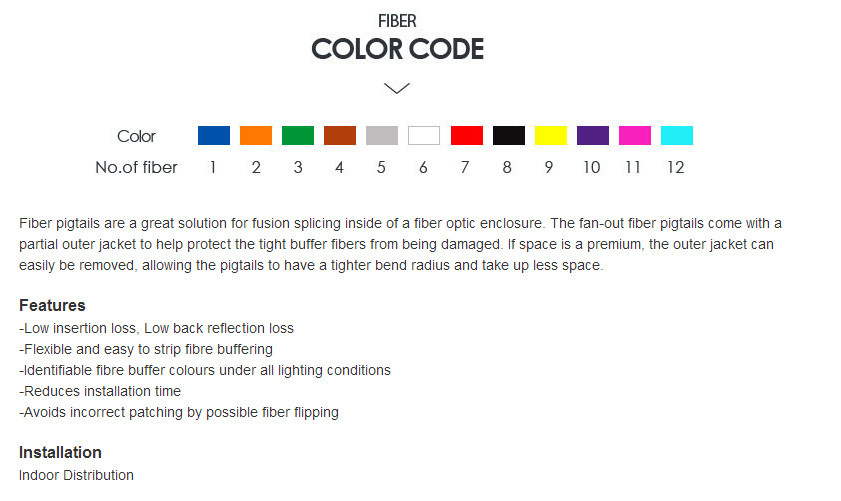

Color:	Yellow, Orange, Aqua or Customerized
Laying Method:	Indoor Distribution

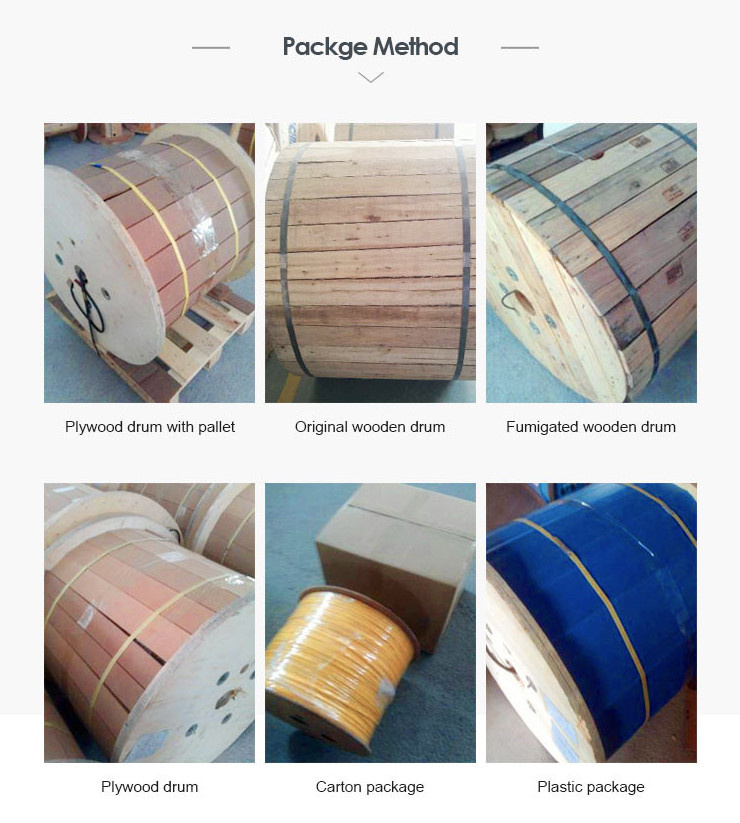

Package:	PP Bag, Carton or Customized
Operating Temperature:	-40-70
Certificate:	SGS,UL,RoHS,ISO 9001-2008,Tlc,Ce.
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC

Product Description

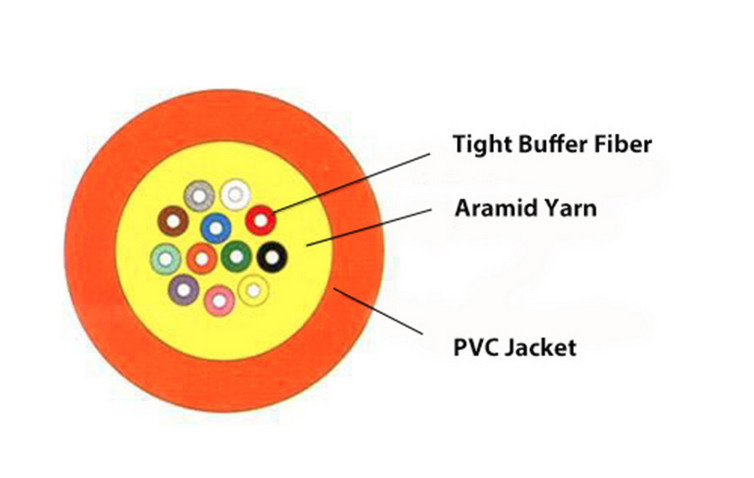

GJFJV

1-24cores
Special tube filling compound ensure a cntical protection of fiber
Special designed compact structure is good at preventing loose tubes from shrinking
Aramid yarn/glass yarn make the cable stronger ,and hence Tensile&crush strength

Product Attenuation

			2-96 fibers	98-288fibers
Max. Tension (N)	Short-term		1500	3000
Max. Tension (N)	Long-term		600	1000
Max. Crushing Resistance (N/100mm²)			1000
Temperature range(°C)			-40°C-- +70°C
Min. Bending Radius(mm)		Install	20D
Min. Bending Radius(mm)		Static	10D

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
