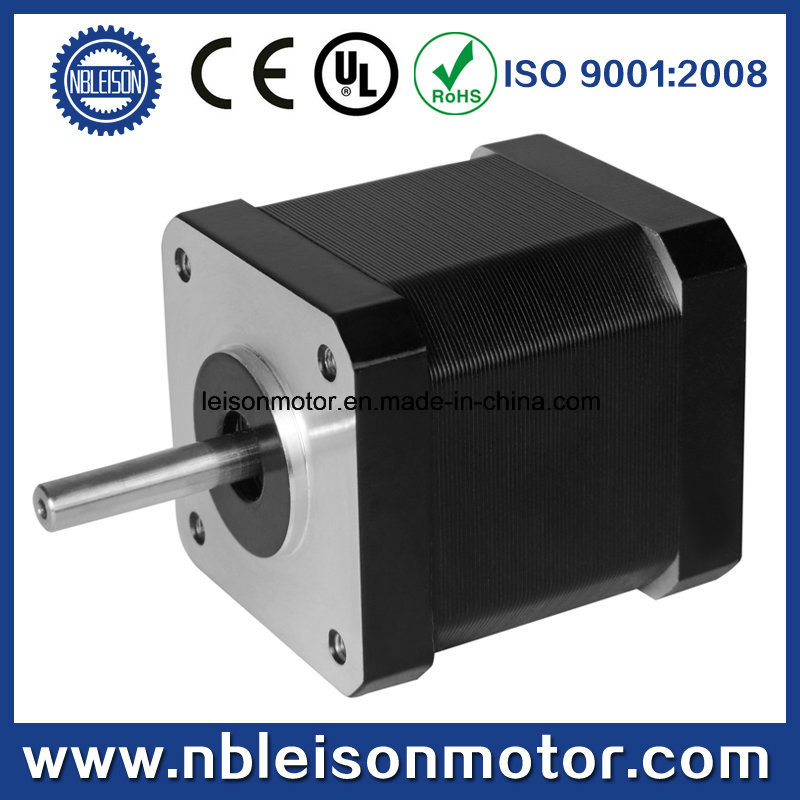

0.9 Degree 3D Printer Bipolar NEMA 17 Hybrid Stepper Motor

Name: 0.9 Degree 3D Printer Bipolar NEMA 17 Hybrid Stepper Motor
Brand: all-electronics-online.com
SKU: 678457002
Availability: InStock
Rating: 4.3 (91 reviews)

Price:	US $ 6.08-6.98/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	17HM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	0.9 Degree
Hold Torque:	up to 42n.Cm
Phase:	2 Phase
Current:	0.4-2.5A
Motor Body Length:	28mm, 34mm, 40mm, 48mm
Shaft:	D-Cut or Round, Customized Shaft Length
Connectors:	Can with Connectors, 4 or 6 Lead Wires
Customized:	Shaft, Wire, Connector
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Brand:	Leison Motor

Product Description

1. Stepper Motor Specification:
Step Angle Accuracy: ± 5% full step, no load

Ambient Temperature: -20° - +50°

Insulation Resitance: 100M Ω Min 500V DC

Dielectric Srength: 500V AC for one mintue

Resistance Accuracy: ± 10%

Temperature Rise: 80° Max.

Packaging Detail: Foam inner, Papers Carton Outside, 60PCS/CTNS Carton size is 37*31*22cm

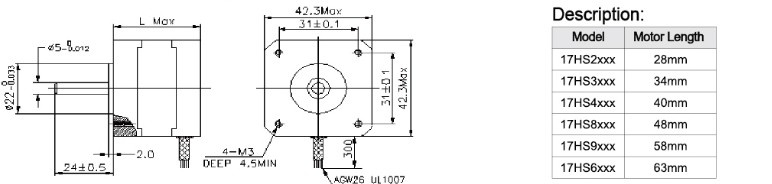

Dimension And Data sheet
:

Series Model	Step Angle (° )	Motor Length (mm)	Rated Current (A)	Phase Resistance ( Ω )	Phase Inductance (mH)	Holding Torque (N. cm Min)	Detent Torque (N. cm Max)	Rotor Inertia (g. cm 2 )	Lead Wire (No. )	Motor Weight (g)
17HM2408	0.9	28	0.6	9	9	10	0.9	20	4	130
17HM3401	0.9	34	1.3	2.4	3.6	24	1.2	34	4	220
17HM3410	0.9	34	1.7	1.2	2.2	24	1.2	34	4	220
17HM3430	0.9	34	0.4	30	45	24	1.2	34	4	220
17HM3630	0.9	34	0.4	30	22	20	1.2	34	6	220
17HM3616	0.9	34	0.16	75	54	12	1.2	34	6	220
17HM4401	0.9	40	1.7	1.5	3.8	36	1.8	54	4	280
17HM4402	0.9	40	1.3	2.5	6.2	36	1.8	54	4	280
17HM4602	0.9	40	1.2	3.2	3.8	26	1.8	54	6	280
17HM4630	0.9	40	0.4	30	34	26	1.8	54	6	280
17HM8401	0.9	48	1.7	1.8	4.0	42	2.2	68	4	350
17HM8402	0.9	48	1.3	3.0	7.0	36	2.2	68	4	350
17HM8403	0.9	48	2.3	1.2	2.0	42	2.2	68	4	350

Stepper Motor Packing:

About our company:

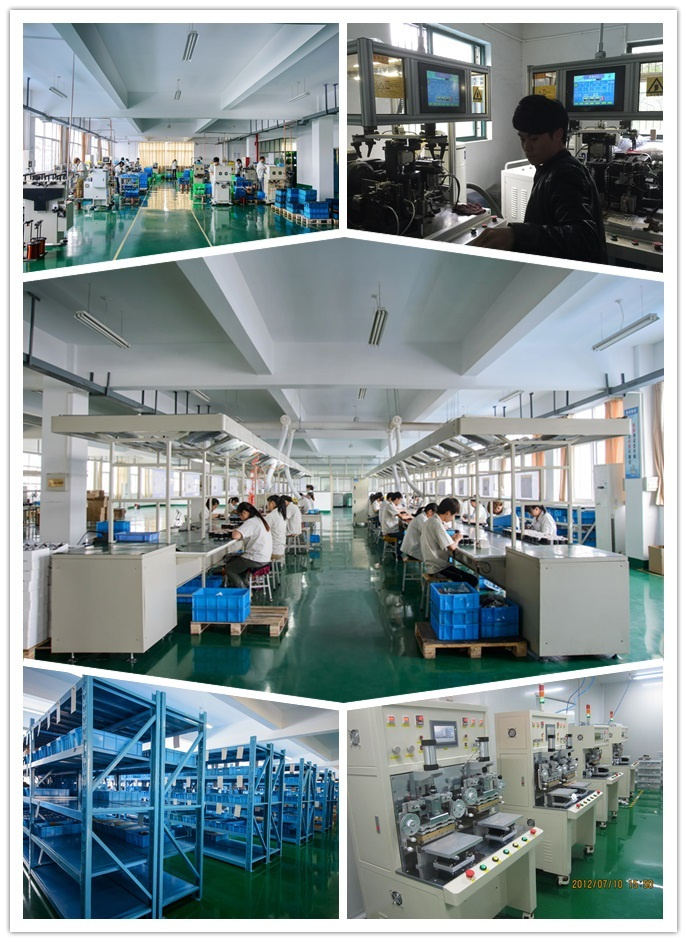

1. Production line and equipment

2 Certificates:

3. Customer Visit

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
