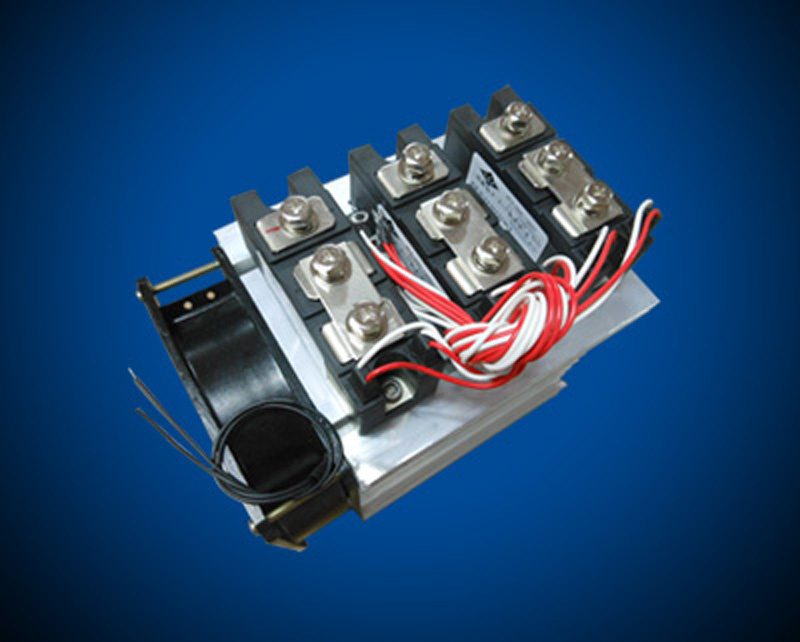

Assembly of Thyristor (Single-phase Full-bridge Assemblies of B2 Series)

Prod Model:	Single-phase Full-bridge Assemblies of B2 Series

Product Description

Name: Assembly
Application: easy to be used; high reliability

Single-phase Full-bridge Assemblies of B2 Series
Connection Type and Code


Form of cooling	Device Type	6XY Series Component Model-VVN-Id	Rated output current Id(A)	Shape	Cooling conditions	Device voltage(V)
air cooling series	Module	B2×-×××-×××FA	40-160	Fig.1a	air speed≥6m/s ambient temperature≤40ºC	100-2000
		B2×-×××-×××FB	180-200	Fig.1b	air speed≥6m/s ambient temperature≤40ºC	100-2000
		B2×-×××-×××FC	250-400	Fig.3		100-2000
	Tablet devices	B2×-×××-×××FD	300-800	Fig.9b
		B2×-×××-×××FE	800-1200	Fig.10b
		B2×-×××-×××FF	1200-2000	Fig.13b
water cooling series	Tablet devices	B2×-×××-×××SA(B/C/D)	100-2500	Fig.15-18	Flow≥4L/MinWater temperature≤40ºC
		B2×-×××-×××SE(B/C/D)	100-2500	Fig.24	Flow≥4L/MinWater temperature≤40ºC

Three-phase Full-bridge Assemblies of B6 Series
Connection Type and Code



Form of cooling	Device Type	6XY Series Component Model-VVN-Id	Rated output current Id(A)	Overall	Cooling conditions	Device voltage(V)
air cooling series	Module	B6×-×××-×××FA	80-200	Fig.1a	air speed≥6m/s ambient temperature≤40ºC	100-2000
		B6×-×××-×××FB	200-300	Fig.1b	air speed≥6m/s ambient temperature≤40ºC	100-2000
		B6×-×××-×××FC	300-500	Fig.3		100-2000
	Capsule device	B6×-×××-×××FD	400-1600	Fig.9a
		B6×-×××-×××FE	1000-2000	Fig.10a
		B6×-×××-×××FF	1500-3000	Fig13a
water cooling series	Capsule device	B6×-×××-×××SA(B/C/D)	300-4000	Fig.15-18	flow≥4L/Min Intake temperature≤40ºC

Six-phase Full-bridge Assemblies of M6 Series
Connection Type and Code

Form of cooling	Device Type	6XY Series Component Model-VVN-Id	Rated output currentId(A)		Shape	Cooling conditions	Device voltage(V)
			Binary-type reactor with a balanced	Without balanced binary-type reactor
air cooling series	Module	M6×-×××-×××FA	150-350	130-300	Fig.1a	air speed≥6m/sambient temperature≤40ºC	100-2000
		M6×-×××-×××FB	450-600	350-500	Fig.1b	air speed≥6m/sambient temperature≤40ºC
		M6×-×××-×××FC	800-1200	600-800	Fig.3
	Capsule device	M6×-×××-×××FD	1500-2500	1200-2000	Fig.9a
		M6×-×××-×××FE	3000-4000	2500-3400	Fig.10a
		M6×-×××-×××FF	5000-6000	4000-5000	Fig.13a
		M6×-×××-×××FG	1500-1580	1000-1500	Fig.14
water cooling series	Capsule device	M6×-×××-×××SA(B/C/D)	500-8000	400-5000	Fig.15-18	flow≥4L/Min Intake temperature≤40ºC


AC Switchs of W Series
Connection Type and Code
W1C series single-phase AC switch

Form of cooling	Device Type	6XY Series Component Model-VVN-Id	Rated output current Id(A)	Shape	Cooling conditions	Device voltage(V)
air cooling series	Module	W1c-×××-×××FA	90-150	Fig.2a	air speed≥6m/sambient temperature≤40ºC	100-2000
		W1c-×××-×××FB	200-250	Fig.2b
		W1c-×××-×××FC	300	Fig.4
	Capsule device	W1c-×××-×××FD	400-800	Fig.5
		W1c-×××-×××FE	1000-1200	Fig.6
		W1c-×××-×××FF	1500-1800	Fig.11
water cooling series	Capsule device	W1c-×××-×××SA(B/C/D)	600-2500	Fig.14-18	Flow≥4L/Min Intake temperature≤40ºC
		W1c-×××-×××SI(J/K)	800-1200	Fig.20-22
		W1c-×××-×××SL	800	Fig.23

Three-phase AC switch W3C

Form of cooling	Device Type	6XY Series Component Model-VVN-Id	Rated output current Id(A)	Shape	Cooling conditions	Device voltage(V)
air cooling series	Module	W3c-×××-×××FA	90-150	Fig.2a	air speed≥6m/s ambient temperature≤40ºC	100-2000
		W3c-×××-×××FB	200-250	Fig.2b
		W3c-×××-×××FC	300	Fig.4
	Capsule device	W3c-×××-×××FD	400-800	Fig.7
		W3c-×××-×××FE	1000-1200	Fig.8
		W3c-×××-×××FF	1500-1800	Fig.12


Assemblies of (B6C)2 Series





Form of cooling	Device Type	6XY Series Component Model-VVN-Id	Rated output current Id(A)	Shape	Cooling conditions	Device voltage(V)
air cooling series	Module	(B6C)2X-×××-×××FA	80-150	Fig.29a	air speed≥6m/s ambient temperature≤40ºC	100-2000
		(B6C)2X-×××-×××FB	200-260	Fig.29b
	Capsule device	(B6C)2X-×××-×××FD	400-1200	Fig.27
		(B6C)2X-×××-×××FE	150-2000	Fig.28

High-voltage Assemblies and Assemblies of HV Series



Form of cooling	6XY Series Component Model-VVN-Id	Voltage(V)	Electric current(A)	Shape
air cooling series	HVX-×××-×××FX	3000-30000	50-500	Fig.25
water cooling series	HVX-×××-×××SX	3000-8000	50-1000	Fig.26
