High Quality Power Semiconductor Chips for Power Control (Thyristors Chips)

Name: High Quality Power Semiconductor Chips for Power Control (Thyristors Chips)
Brand: all-electronics-online.com
SKU: 706808202
Availability: InStock
Rating: 4.6 (64 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Thyristors Chips

Product Description

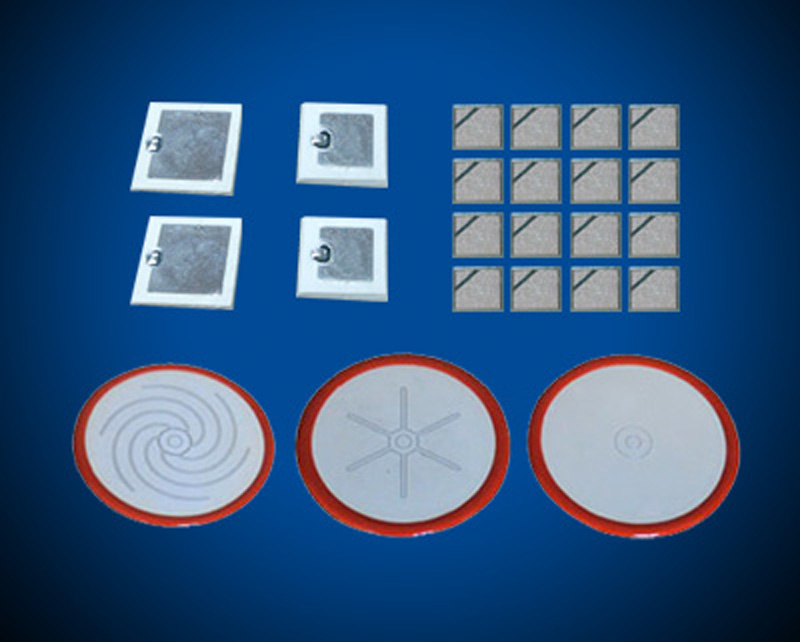

Name: Power Semiconductor Chips
GE standard,low forward drop, excellent thermal fatigue property, thick aluminum

Thyristors Chips

element diameter	gate diameter	cathode inner diameter	cathode outer diameter	VDRM VRRM	Tjm
mm	mm	mm	mm	v	ºC
17	3.1	3.5	12	100-4200	125
24	2.7	5.2	19	100-4200	125
25.4	2.7	5.2	20.5	100-4200	125
29.72	3.5	7.1	25	100-6500	125
30	2.7	5.2	25	100-6500	125
30.48	2.7	5.2	25	100-6500	125
35	3.4	6.2	29	100-6500	125
38.1	3.4	6.2	31	100-6500	125
40	3.4	6.2	33	100-6500	125
45	3.5	7.3	38	100-6500	125
50	3.4	8.8	43.8	100-6500	125
55	3.4	8.8	47	100-6500	125
60	6.2	10.2	51.5	100-6500	125
63.5	6.2	10.2	55	100-6500	125
66.7	6.2	12.7	58	100-6500	125
70	6.2	10.2	61	100-6500	125
76	6.2	10	67	100-6500	125
85	6.2	10	76	100-6500	125
99	6.2	11	88	400-5000	125

Purpose Rectifiers Chips

element diameter	cathode outer diameter	VRRM	Tjm
mm	mm	v	ºC
17	12	100-4200	150
23.3	18.3	100-4200	150
24	19	100-4200	150
25.4	20.5	100-4200	150
29.72	25	100-6500	150
30	25	100-6500	150
30.48	25	100-6500	150
35	29	100-6500	150
38.1	31	100-6500	150
40	33	100-6500	150
48	43.5	100-6500	150
50	43.8	100-6500	150
55	47	100-6500	150
60	55	100-6500	150
63.5	55	100-6500	150
66.7	58	100-6500	150
75	70	100-6500	150
76	67	100-6500	150
85	76	100-6500	150
89	80	100-6500	150
99	88	100-6500	150

Square chips

Specification	MO size	VRRM	VTM	dv/dt	di/dt	Tjm
Specification	mm	v	v	v/μs	A/ μs	ºC
KP30A	8*8	1600	1.3	500	150	125
KP40A	9*9	1600	1.3	500	150	125
KP50A	10*10	1600	1.3	500	150	125
KP60A	11*11	1600	1.4	500	150	125
KP80A	13*13	1600	1.4	500	150	125
KP90A	14*14	1600	1.4	500	150	125
KP100A	16*16	1600	1.4	500	150	125
KP110A	16*16	1600	1.4	500	150	125
KP130A	18*18	1600	1.4	500	150	125
KP150A	21*21	1600	1.4	500	150	125
KP180A	23*23	1600	1.4	500	150	125

Our company is a professional supplier for Ferrite core, bobbin and remote control.

We have more than ten years experience for export electronics component. There are reliable professional suppliers team for integrated circuits (IC), transistor, relay, current transformer and other electronic parties.

Choose us to make you grow faster.
